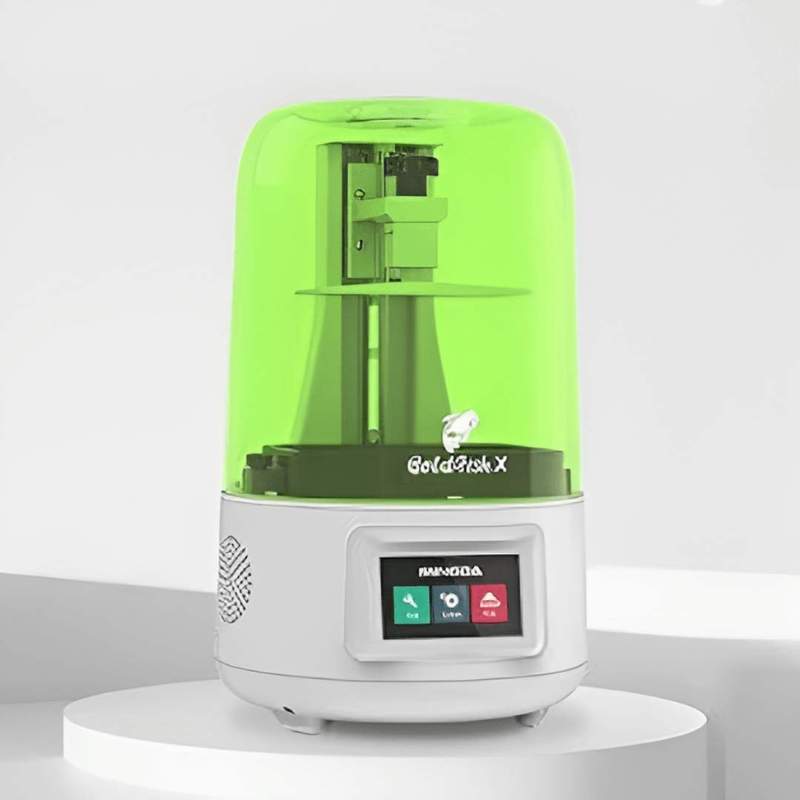

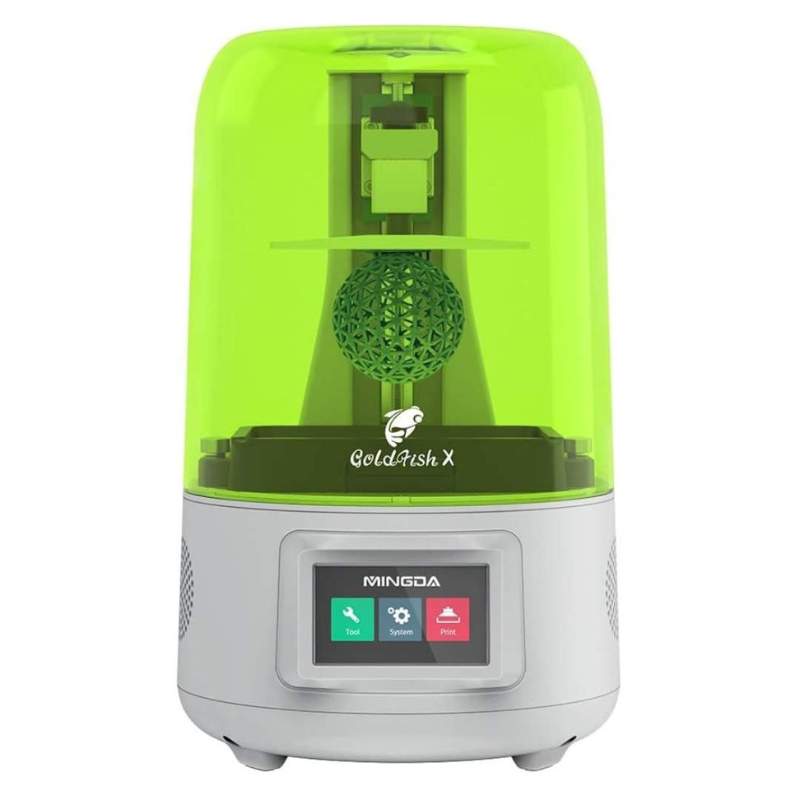

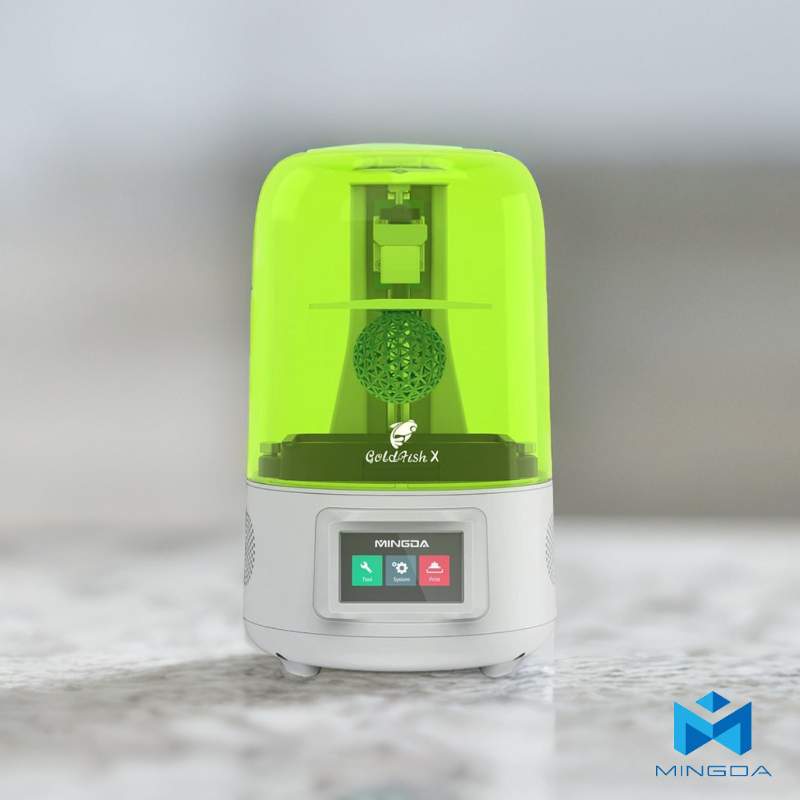

3D Printer MINGDA Goldfish X 2K Resin Printer

Discover the future of resin 3D printing with the MINGDA Goldfish X 2K 3D Printer. This cutting-edge device combines precision, stability, and user-friendliness to bring your 3D printing projects to life like never before.

Advanced Printing Technology:

• High-Resolution UV Photocuring LCD: The MINGDA Goldfish X features a 2560x1440 resolution UV photocuring LCD screen. Paired with a matrix UV LED light source and a layer thickness range of 0.01-0.05mm, this printer employs anti-aliasing technology (4-8 times) to ensure your prints are exceptionally smooth and intricate, capturing even the finest details.

• Stable Z Leadscrew: A stable and precise sliding rail Z leadscrew ensures that the Z-axis moves smoothly and with maximum stability, reducing the risk of print imperfections.

• Dual Fan Filtering System: Inside the printer, dual fans work together with built-in activated carbon to effectively reduce odor emissions, keeping the air fresh and free of pungent smells during printing.

High-Quality Construction:

• Metallic Durability: The main body of the Goldfish X is crafted from sturdy metal and leverages CNC cutting technology, resulting in a strengthened structure that significantly reduces resonance. This translates to more reliable and vibration-free printing.

• Anti-UV Transparent Cover: The printer boasts a unique flip design anti-UV transparent cover that blocks 99.95% of harmful UV rays while allowing you to monitor your prints without interruption.

User-Friendly Design:

• Pre-Leveled for Convenience: The Goldfish X comes pre-leveled before shipping, eliminating the need for complex manual leveling. You can start printing right out of the box.

• Intuitive Touch Screen: Navigate the printer's settings effortlessly with the 3.5-inch touch screen, which offers a new user-friendly interface designed for easy operation.

Technical Specifications:

• Modeling Technology: LCD UV Photocuring
• Print Accuracy: XY axis 0.051mm, Z axis 0.01mm
• Printing Speed: 40-60mm/h
• Layer Thickness: 0.01-0.1mm

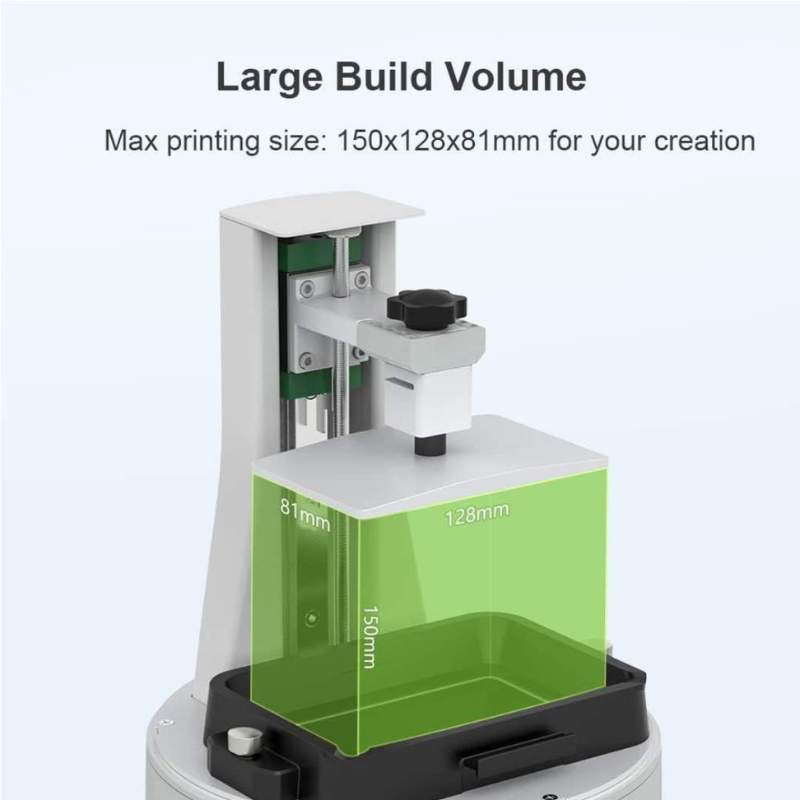

• Build Volume: 128x81x150mm
• Materials: 405nm UV-Resin
• Screen: 2K Mono Screen
• Single Layer Exposure Time: 1-2 seconds
• Exposure Intensity: 8000uw/cm²
• Operation Screen: 4.3-inch Touch Screen
• Slicing Software: CHITUBOX
• Rated Power: 54W

• File Format: .stl, .obj
• Connectivity: USB Memory
• Machine Size: φ264x413mm
• Weight: N.W 6.32kg, G.W 7.7kg

One-Key Leveling:

Say goodbye to the hassle of manual leveling. The Goldfish X offers one-key leveling for a quick and convenient setup.

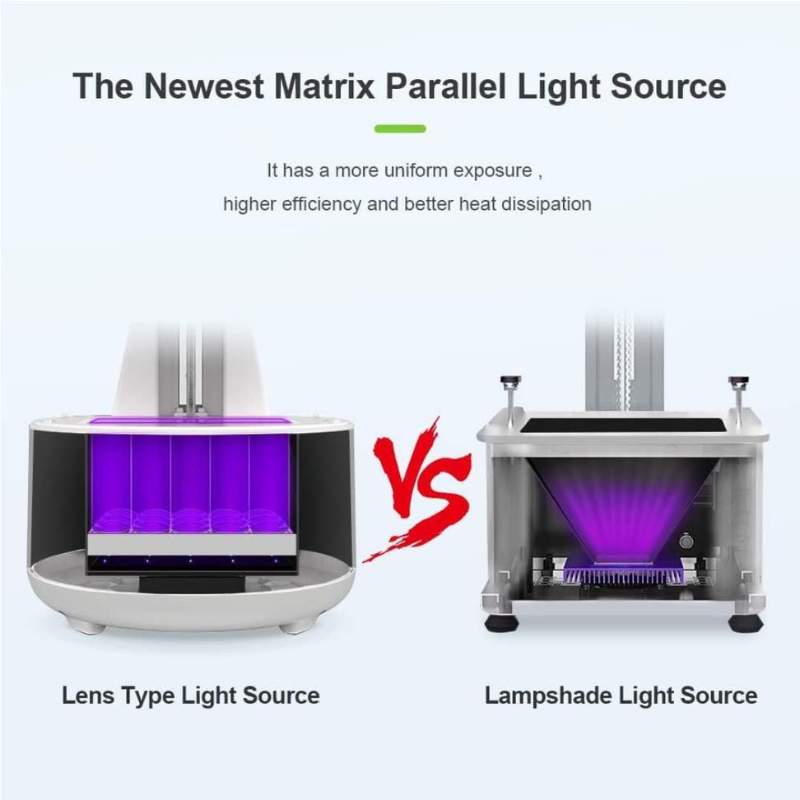

Matrix Parallel Light Source:

Experience uniform exposure, higher efficiency, and improved heat dissipation for smoother and faster printing.

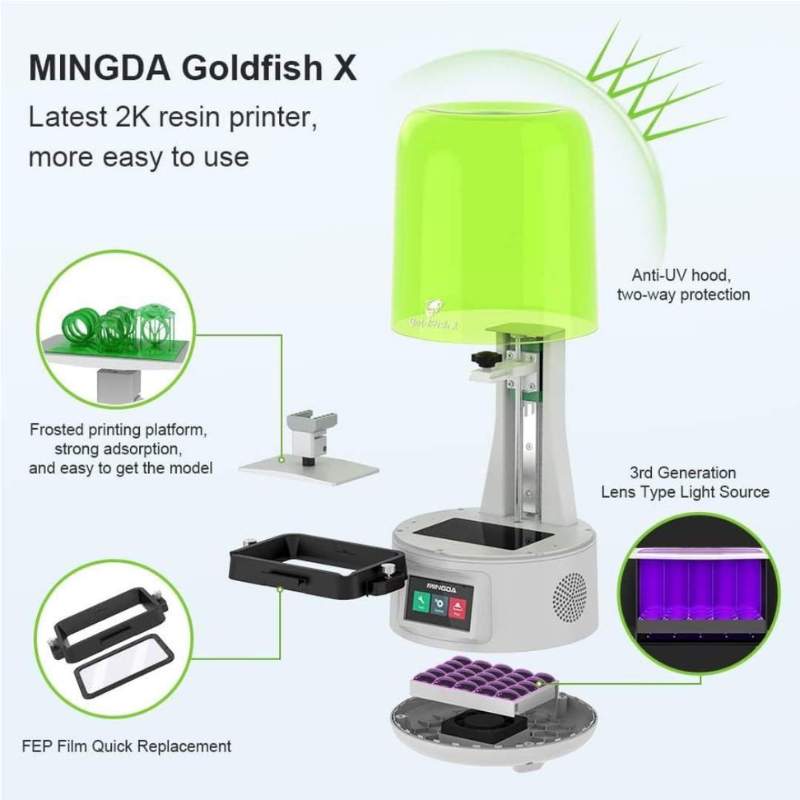

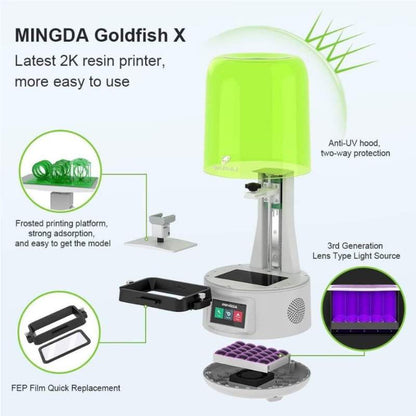

Quick FEP Replacement:

Replacing the FEP is now easy and swift, ensuring minimal downtime during maintenance.

Scientific Heat Dissipation:

A well-designed heat dissipation system enhances printer performance.

Multi-Language Support:

The Goldfish X supports 12 different languages, making it accessible and user-friendly for a global audience.

2K Monochrome LCD:

Enjoy the benefits of a 6.08-inch Monochrome LCD with 2K HD resolution, offering longer lifespan and faster printing compared to RGB LCDs.

High-Quality Z-Axis Rail:

Enhanced stability in motion and reduced layer shifting risks.

Frosted Printing Platform:

Strong adhesion ensures your models stick securely to the platform.

Chitu Box Slicer:

Chitu Box slicer simplifies the 3D printing process, from slicing .stl files to adding supports. The latest 8-times anti-aliasing function guarantees exceptionally smooth printing surfaces.

Upgrade your 3D printing capabilities with the MINGDA Goldfish X 2K 3D Printer, backed by a 1-year warranty and lifetime technical support. Experience precision, ease of use, and exceptional performance in every print.
