Description

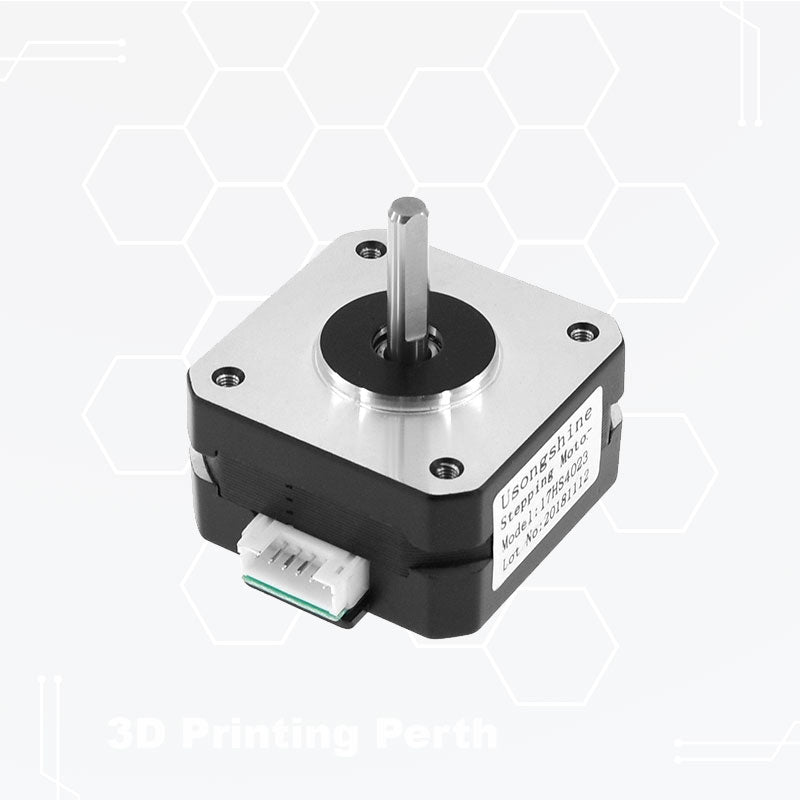

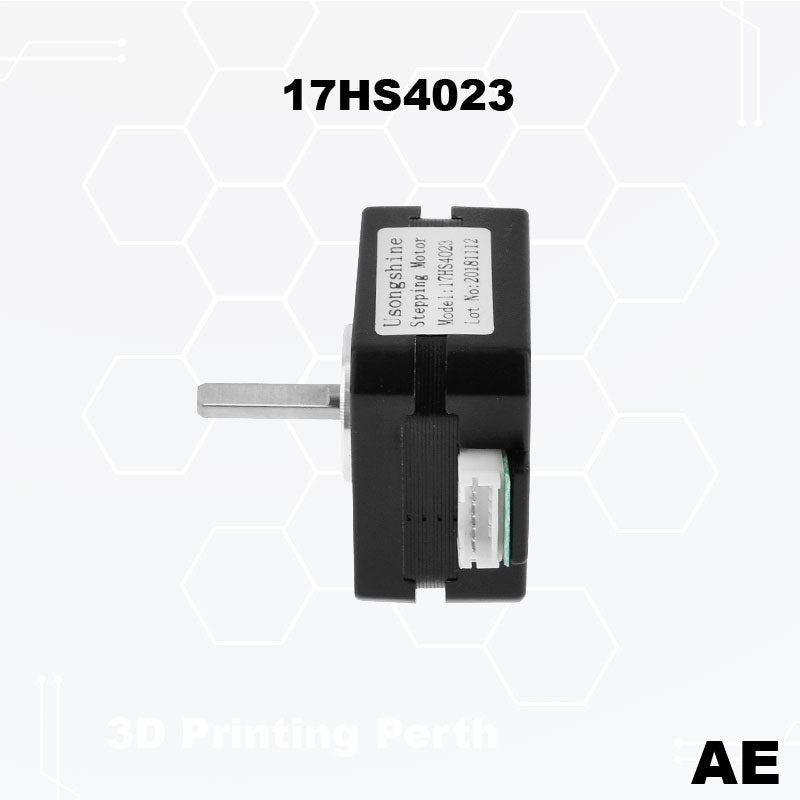

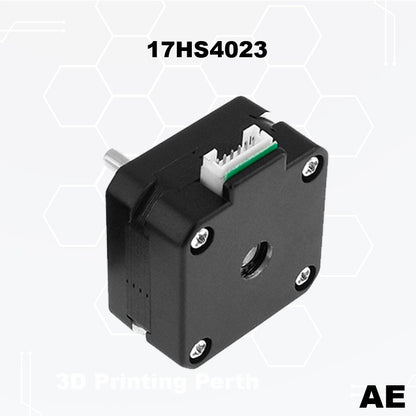

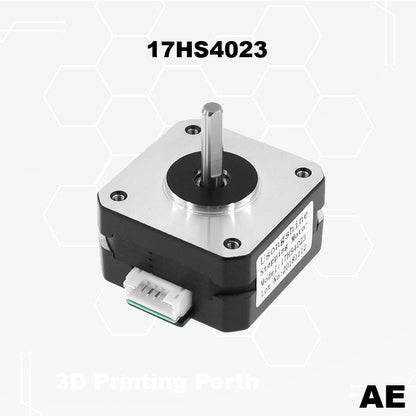

The 17HS4023 Bi Polar stepper motor is a great choice for 3D printers and RepRap CNC machines. It is also a good choice for general control machinery, automation and robotics applications. The NEMA 17 stepper motor is a stepper motor with a 1.7 x 1.7 inch (42.3 x 42.3 mm) faceplate. This stepper motor is a great choice for applications where high torque is needed.



Product Description:

  • Phase: 2-phase step drive.
  • Step angle: 1.8 ± 5% °/Step.
  • Voltage: 12V.
  • Current: 700 mA/phase.
  • Resistance: 4 ± 10% Ω/Phase.
  • Inductance: 3.2 ± 20% mH/Phase.
  • Holding Torque: 14 N.cm (1.24 lb.in).
  • Detent Torque: 2.2 N.cm (0.2 lb.in).
  • Rotational Inertia: 54 g.cm² (0.3 oz.in²).
  • Insulation Class: B (see table below for temperatures).
  • Ambient Temperature Required: -20 to 50°C (-4 to 122°F).
  • Pinout: Red = A+.
    Green = A.
    Black = B+.
    Blue = B.
    *The two unused pins are “common pins” and are used in uni-polar mode..

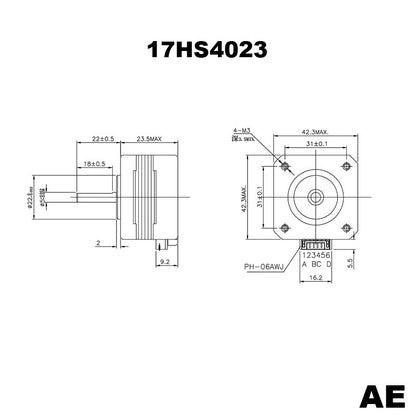

  • Body Dimensions: 41.8 x 41.8 x 23.8 mm (1.65 x 1.65” x 0.94”).
  • Shaft Diameter: 5mm.
  • Shaft Length: 21mm.
  • Weight: 130g (4.6 oz.).
