Stepper Motor Dual Shaft Nema 17 42BYGH40-1704B - CD
Stepper Motor Dual Shaft Nema 17 42BYGH40-1704B - CD
Stepper Motor Dual Shaft Nema 17 42BYGH40-1704B - CD
Stepper Motor Dual Shaft Nema 17 42BYGH40-1704B - CD
Stepper Motor Dual Shaft Nema 17 42BYGH40-1704B - CD
SOLD OUT

Stepper Motor Dual Shaft Nema 17 42BYGH40-1704B - CD

  • Description
  • Reviews
Description

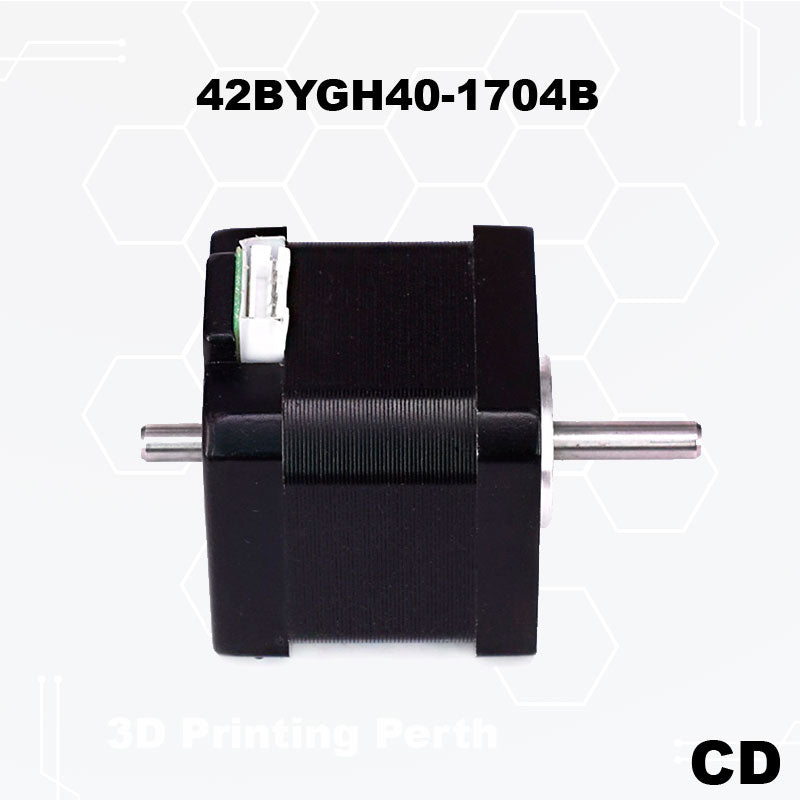

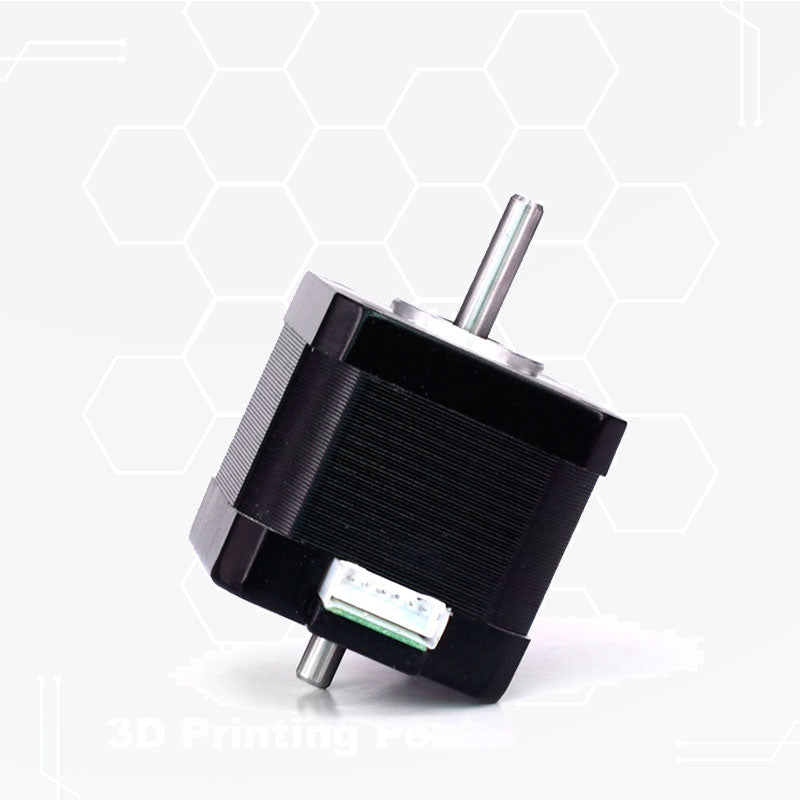

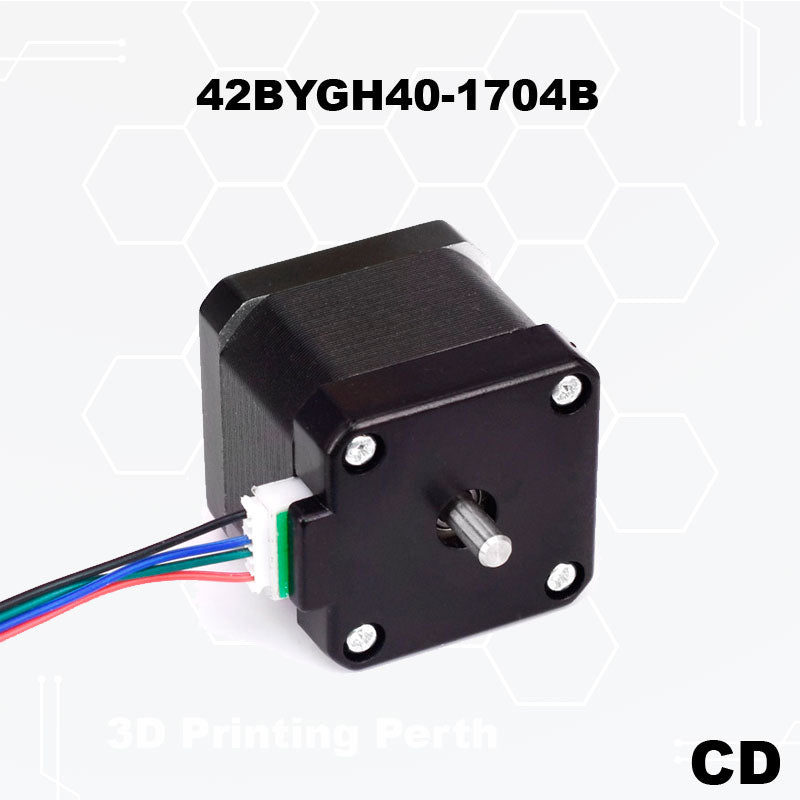

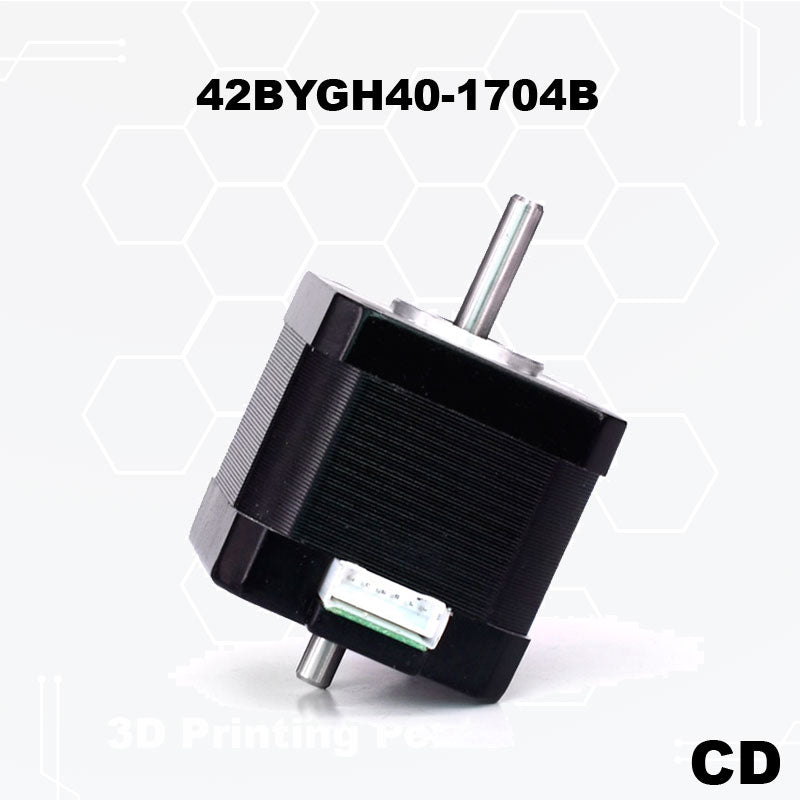

The Machifit 42 stepper motor is a great choice for your 3D printer or CNC engraving machine. It features dual shafts for extra stability and power, and can handle up to 1.68A of current. The 42BYGH40-1704B also has great thermal conductivity thanks to its pure copper wire construction, and its precision bearings make it durable and long-lasting.

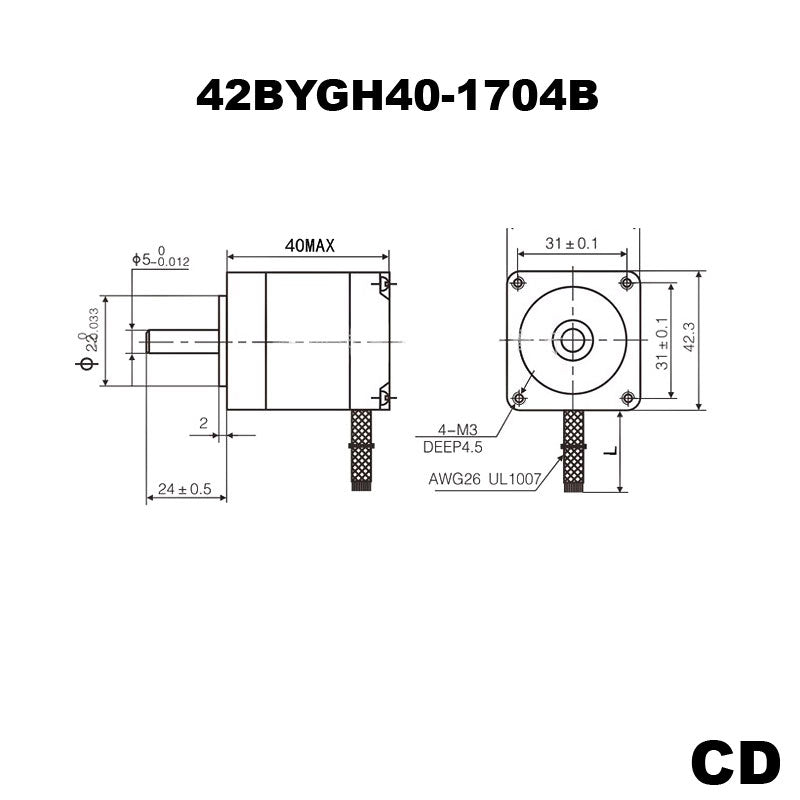

Specification:

Model: 42BYGH40-1704B
Body height: 40mm
Shaft diameter:  Φ5mm, D-axis
Shaft high: 23mm
Rront axle length: 20mm
Socket type (rear): 10mm
Outgoing mode: Two-phase four outlets (Black A + Green A / Red B + Blue B - )
Scope: Widely used for 3D printers, monitor equipment, medical/textile/packaging machinery, stage lighting, ect.

Model No. Step Angle Rated Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque Leads Rotor Inertia                 Thickness
(°) A Ω mH N.m  No. g.c㎡ mm(Inch)
42BYGH40-1704B  1.8 1.68 1.65 3.2 0.45 4 54 40(1.57)

Axis type optional: N round optical axis, P milling single flat table
Shaft exit mode optional: A single-end shaft exit, B two-end shaft exit
