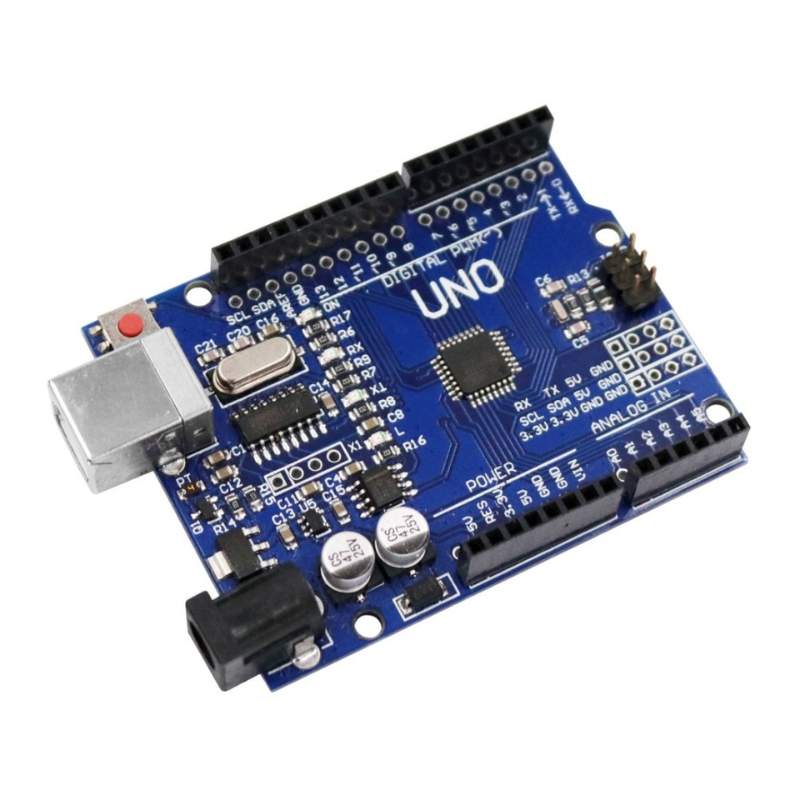

The Related PCB : Arduino Uno R3 Compatible Board with CH340 Chipset microcontroller board from Cirrus Link - 3D Printing Online Store is shown on a white background.

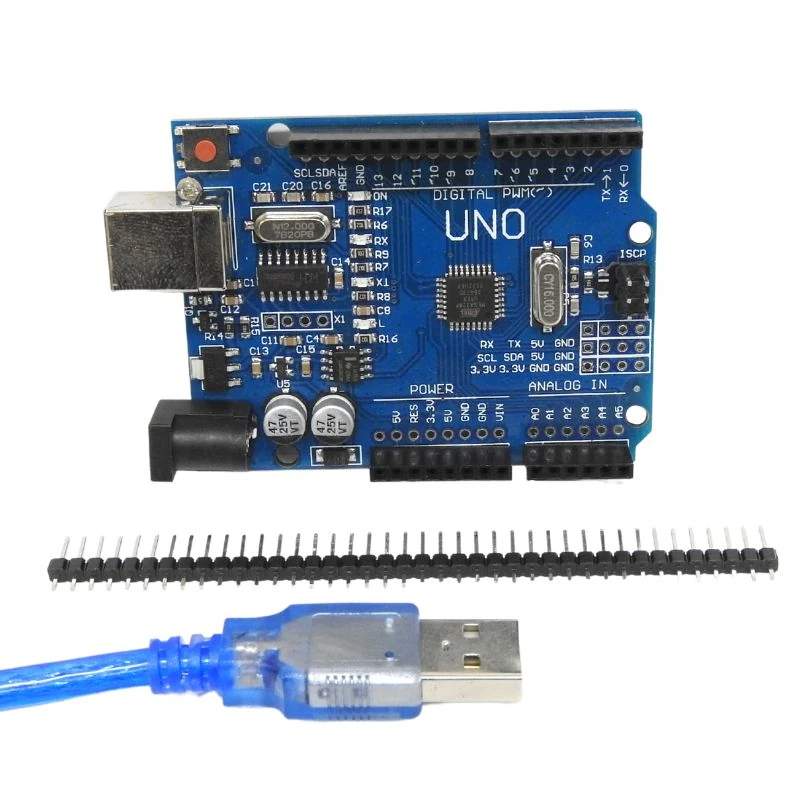

An Arduino Uno R3 board with a blue USB cable is replaced with a Cirrus Link - 3D Printing Online Store Related PCB : Arduino Uno R3 Compatible Board with CH340 Chipset and a Cirrus Link - 3D Printing Online Store blue USB cable.
SOLD OUT

Related PCB : Arduino Uno R3 Compatible Board with CH340 Chipset

  • Description
  • Reviews
Description

Arduino Uno R3 Compatible Board with CH340: Affordable and Versatile Microcontroller

The Arduino Uno R3 Compatible Board with CH340 is a budget-friendly alternative to the official Arduino Uno Rev3. This board is equipped with an ATmega328P-U-TH microcontroller chip, providing functionality similar to the classic ATmega328P-PU found in the official Arduino Uno Rev3. The primary difference lies in the USB-to-Serial chip, where the CH340 replaces the more expensive ATmega16U2 found in the Rev3.

This change in the USB-to-Serial chip is significant, as the CH340 is a more cost-effective solution, bringing down the overall cost of the board. However, it's important to note that this can lead to compatibility issues with certain operating systems, particularly MacOS. Users of Linux and Windows typically do not face these issues, but those on MacOS may need to follow specific procedures to ensure compatibility.

The Arduino Uno R3 Compatible Board with CH340 operates at 5V and can be powered either through a USB connection or an external power supply. If using an external supply, it is advisable to use one between 7-12V to prevent overheating of the onboard regulator.

A unique feature of this board is the additional row of holes adjacent to each standard female header. This design allows for the soldering of male headers, a second row of female headers, or even wires, providing enhanced flexibility for various projects. These can be soldered to either the top or bottom side of the board.

Specifications

  • Microcontroller: ATmega328P
  • USB Chipset: CH340
  • Operating Voltage: 5V
  • Input Voltage: 7-12V recommended
  • Digital I/O Pins: 14
  • PWM I/O Pins (Shared with Digital I/O): 6
  • Analog Input Pins: 6
  • Flash Memory: 32KB
  • SRAM: 2KB
  • EEPROM: 1KB
  • Clock Speed: 16MHz

Additional Features

  • Compatibility with Operating Systems: Works well with Linux and Windows, potential issues with MacOS.
  • Flexibility in Connections: Additional solder points for I2C, Serial, 3.3V, 5V, and GND.
  • Programmable via Arduino IDE: Utilizes the standard Arduino IDE for programming.

      Warning: Ensure you are knowledgeable about motherboard installations before purchasing the Mainboard. Always disconnect the power cable before starting the installation process. Incorrect installation can lead to serious issues, including damage to the printer.
