Nozzle E3D Thin Brass M6 threaded nozzle for 1.75/3mm

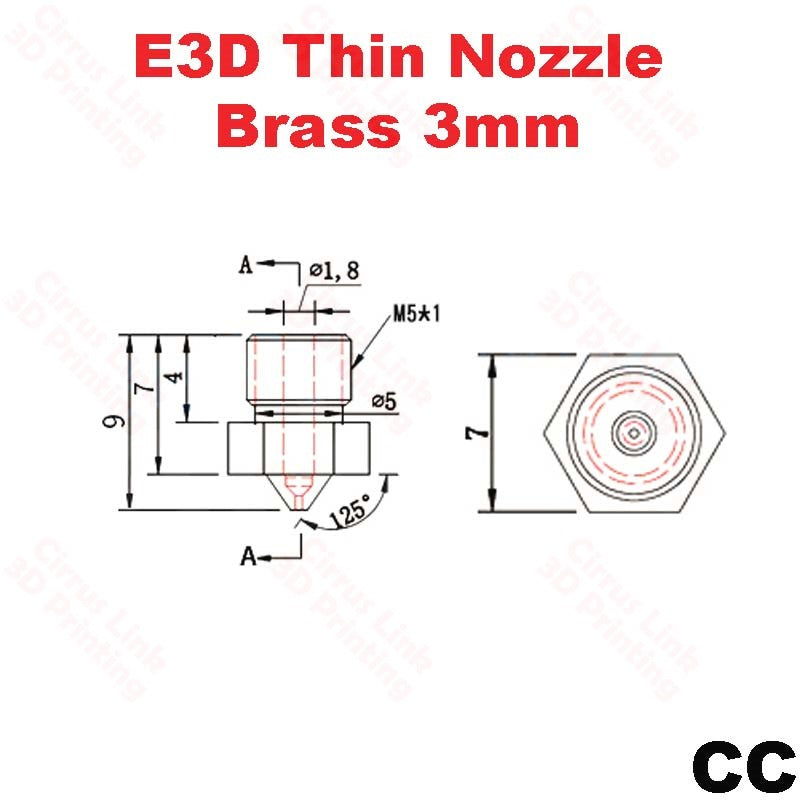

Product information for E3D Thin Brass Nozzle

Model Name: E3D Thin Brass Nozzles

Material: Brass

Product Size: 9mm X 7.5mm

Inner diameter: 2.0mm, 3.2mm

Filament: For 1.75mm,3mm

Thread: M6

Nozzle diameter: 0.1mm/0.2mm/0.25mm/0.3mm/0.35mm/0.4mm/0.5mm/0.6mm/0.8mm/1.0mm

Package: 1 nozzle

Description for E3D Thin Brass Nozzle

A brass nozzle is a type of nozzles for 3D printers. It can be used to extrude molten plastic material, which is heated first to the melt temperature, to layer it on top of previously deposited layers to form objects. 3DPrintingPerth.com is the wide retail store in the Australia to sell these.

Filament extruded evenly

Brass E3D Nozzle for V5 V6 make 3D PLA Filament and ABS Filament extruded evenly. This extruder is made of high-quality brass materials printing PLA filament and ABS filament smoothly. It has a nozzle diameter of 0.2mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0mm, and the filament being extruded can have an even thickness, which makes it perfect for use in 3D printers.

Good for PLA and ABS filament

Many 3D printers have brass nozzles that are necessary for printing with PLA and ABS filament. This E3D brass nozzle heats up to 240 °C and brass is a good choice for printing PLA filament and ABS filament. The nozzle has a 0.2mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0mm hole and it is compatible with the E3D V5, Lite6, V6, Lite6-HE, V6-HE, Lite7, V7, Lite7-HE, V7-HE, LiteX, VX, LulzBot Hexagon, and MendelMax 1.5 hot ends.

Smooth outside with M6 threaded anti-overflow of the filament design.

This E3D Brass Nozzle Extruder Brass 3D Printer Nozzle is one of the most popular nozzle extruders. This nozzle extruder is made out of brass and has a smooth outside to prevent clogging. The M6 threaded nozzle will allow for easy installation. This E3D Brass Nozzle with true M6 threaded to screw to the 3D Printer heat block, for this nozzle, you need to use M6 threaded heat block, this brass E3D with filament anti-overflow design. The filament will not come out from the heat block easily.

Smooth Wall inside for filament insert

This brass E3D nozzle is made to fit inside a 3D printer, for better filaments insertion as this brass E3D nozzle with smooth inside wall. It's perfect for printing things like the Statue of Liberty or Taj Mahal.

Angel corner cut, smooth for filament movement, low resistant for filament extruding.

The Angel corner cut on the nozzles ensures a smoother filament movement and a lower resistant for extruding. The flat surface on the top of the nozzle also ensures a constant pressure when pushing the filament through the extruder. This results in higher precision prints with much better surface finish, no leaking from the nozzle and less stringing. It has a M6 thread on the top and bottom side of the nozzle. This enables you to change the nozzle without any additional modifications to the printer.

Size marked on the side of the E3D Brass nozzle.

The size of the nozzle on an E3D Brass extruder is marked on the side of the nozzle. You can easily find out the different size 0.2mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0mm by looking at the side of the E3D brass nozzle. The mark clearly shows you the size. To use a different sized nozzle, you need to swap the nozzle and/or hobbled bolt for ones that match the size of filament you're trying to print.
