The MakerBase MKS Gen_L V1.0 is a popular choice for 3D printers, often used in conjunction with the Ramps 1.4 board for efficient printing. Additionally, the MKS Gen_L
A Motherboard MKS Gen_L V1.0 with a USB cable attached to it, compatible with Arduino MEGA and Ramps 1.4 for 3D printers by MakerBase.

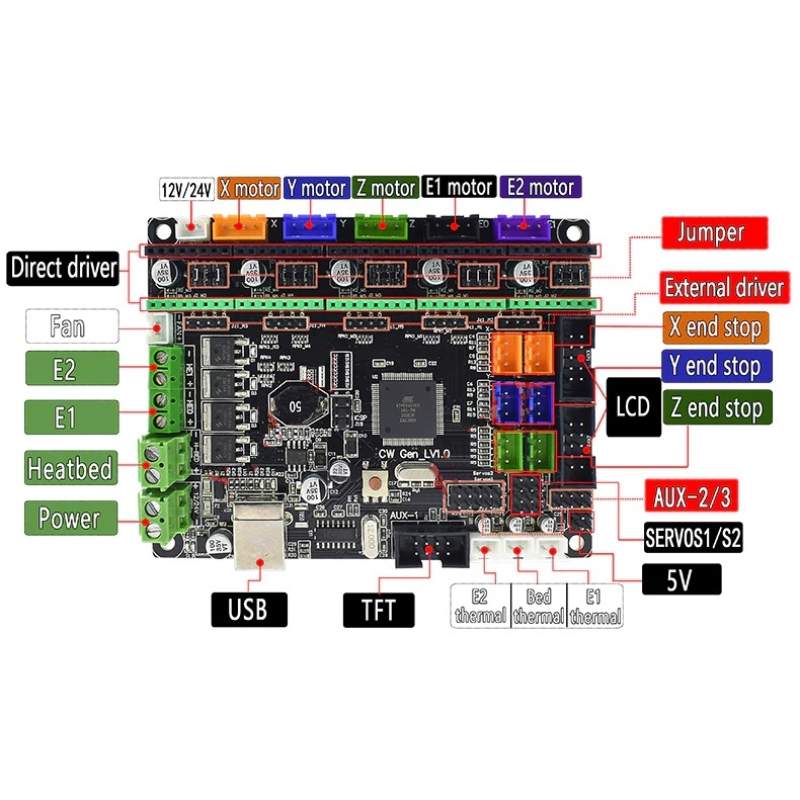

The Arduino MEGA and Ramps 1.4 are widely used in conjunction with 3D printers, including the MakerBase MKS Gen_L V1.0 motherboard.

Motherboard MKS Gen_L V1.0

$69.00
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock
  • Vendor: MakerBase
  • Description
  • Reviews
Description

The MKS Gen_L V1.0 motherboard is a popular choice for 3D printers, combining features of Arduino MEGA and Ramps 1.4. It's powered by an ATmega2560 processor and supports multiple stepper drivers, making it compatible with a wide range of 3D printers. The board's design emphasizes flexibility, allowing users to choose their power supply (12V-24V) and stepper drivers. It's also compatible with RAMPS class firmware, making it easier for users to upgrade their 3D printers without learning new firmware. The motherboard has a 4-layer PCB for better heat dissipation, multiple temperature sensor interfaces, and supports various motor driver outputs. It's suitable for batch production by 3D printer manufacturers and offers an improvement over the Ramps1.4 board.

The MKS Gen_L V1.0 motherboard is designed for 3D printers and combines the features of Arduino MEGA and Ramps 1.4 into one compact board. It is powered by an ATmega2560 processor and supports multiple stepper drivers. Key specifications include:

  • Compatibility with 12V-24V power supply.
  • Onboard ATmega2560 microcontroller.
  • Supports various stepper drivers, including built-in HR4982s.
  • Compatible with RAMPS class firmware.
  • 4-layer PCB for improved heat dissipation.
  • Multiple temperature sensor interfaces.
  • Connections for up to 5 motor drivers and 6 end stops.
  • Resettable fuse for short circuit protection.

This motherboard is suitable for users looking to upgrade or build 3D printers with flexible, powerful control options. For more detailed specifications, you can visit the Makerbase website.



Warning: Ensure you are knowledgeable about motherboard installations before purchasing the Motherboard. Always disconnect the power cable before starting the installation process. Incorrect installation can lead to serious issues, including damage to the printer.
