Heating Block E3D - V6 (23X16X12) mm

  • Sale
  • Regular price $3.00
Tax included.





The E3D V6 3D printing heat block was created with a durable aluminum. It is designed to distribute heat evenly and to transfer heat quickly throughout the whole block.The groundbreaking and innovative design of the E3D V6 3D Printing heat block features an unique and improved finned top and bottom which drastically improve the surface area and therefore, cooling. The fins and large surface area help to keep the heat on the block more consistently and provide superior thermal performance. It takes the heat you would usually be relying on just the sides of the fryer to provide and spreads it out evenly across the entire block.



Specification

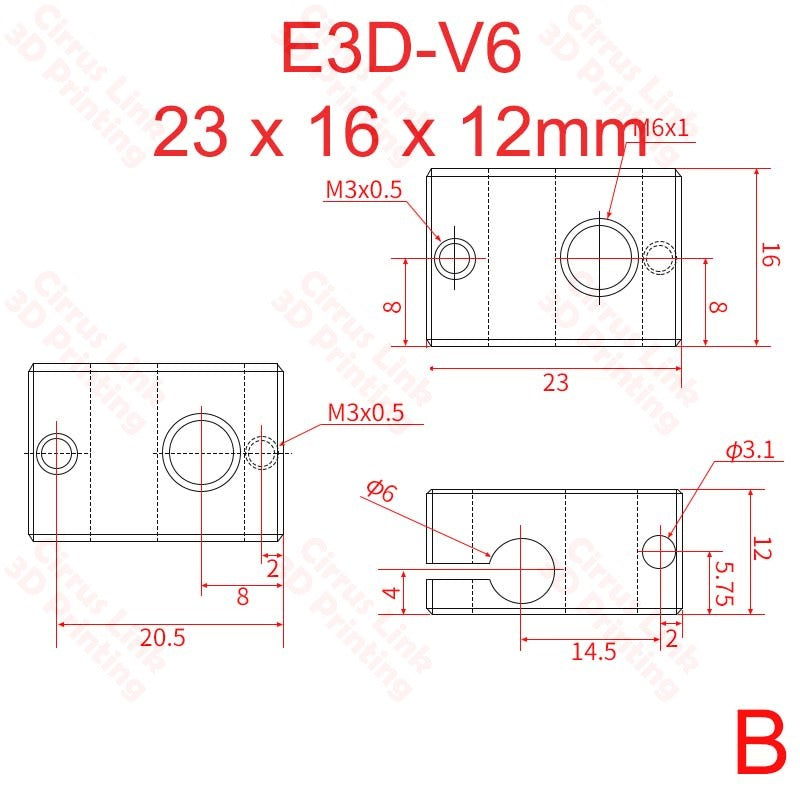

Size: 23mm (Width) X 16mm (Long) X12mm (Height)

Material: Aluminum

Supported Heat Cartridge: M6 X 15mm

Supported Thermistor: HT-NTC100K

Colour: Silver

Quantity: 1 heating block

The product in this page is only for illustration purpose, not the real product. Actual product vary due to product enhancement.

Safety Guide

►Keep away from small children.
►This products are only suitable for 3D printer use indoors.
►To ensure your safety and proper operation of the equipment, we recommend that you should fully understand the operation and safety features of the 3D printer.
►Don't put this item into your month.
►3D printer replacement parts, Always shut off power to the circuit before starting installation work.
►The surface temperature of the 3D printer might be high, and be careful not to touch the heating element to prevent injury.
►3D printer initial operation, Do not run the equipment Unattended state.
►When printing with a PLA(190°C-230°C) or ABS(230°C-250°C)consumable, if the temperature sensor and other accessories fail, it may cause high temperature hazards. Do not run the equipment Unattended state.
►To ensure the users will use the product safely and properly, please read your 3D printer manual first and follow the instructions step by step before using the product.
►Due to the variety of possible end-uses, it is ultimately the responsibility of the customer to determine a product's suitability for a particular application.
