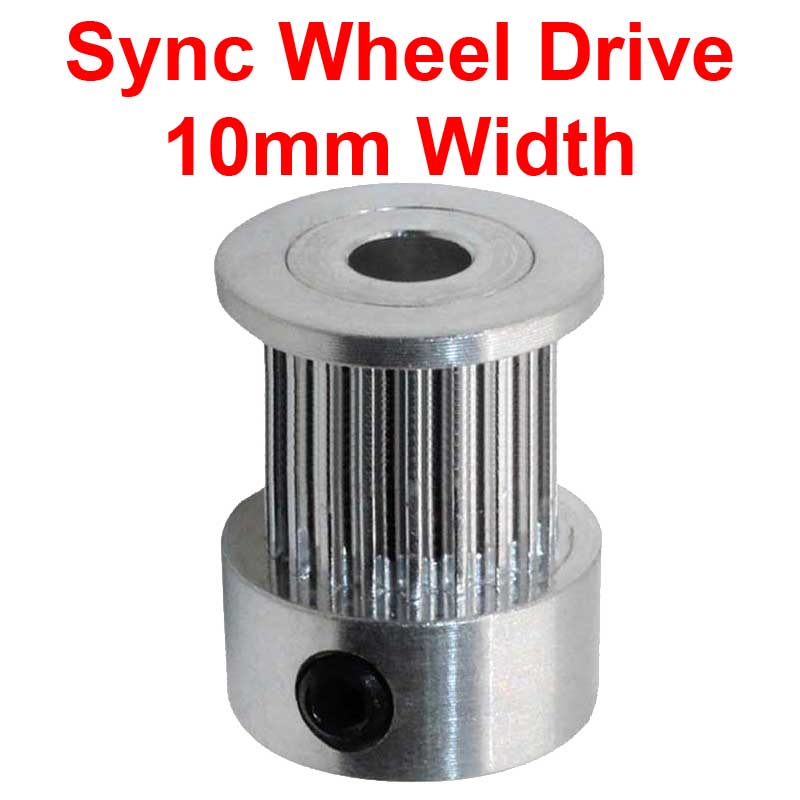

Sync Wheel Drive Aluminum for 10mm width GT2 Timing Belt

$6.00 $5.00 Save 17%
Tax included. Shipping calculated at checkout.

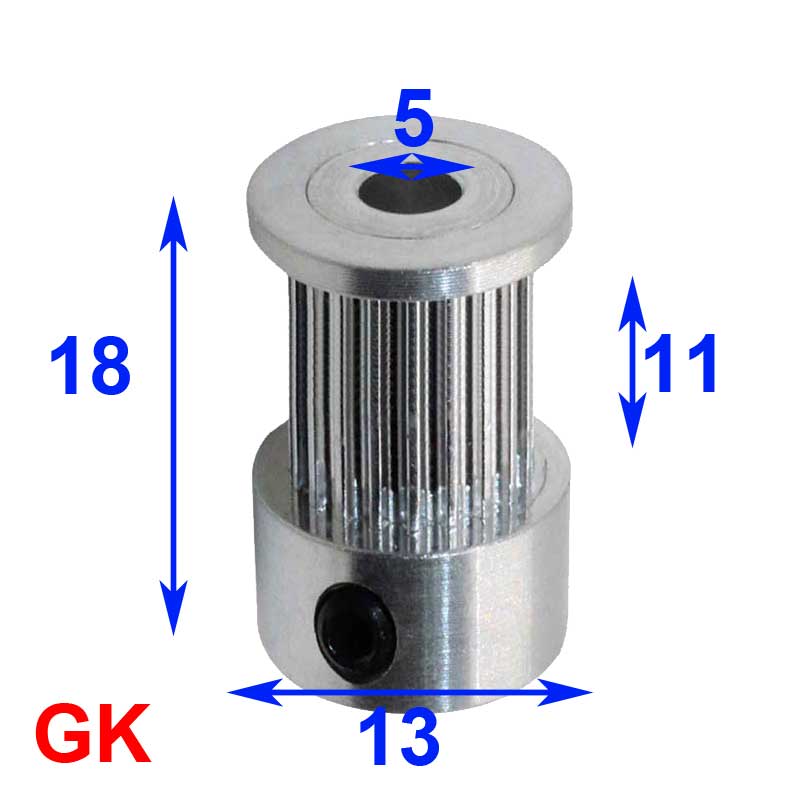

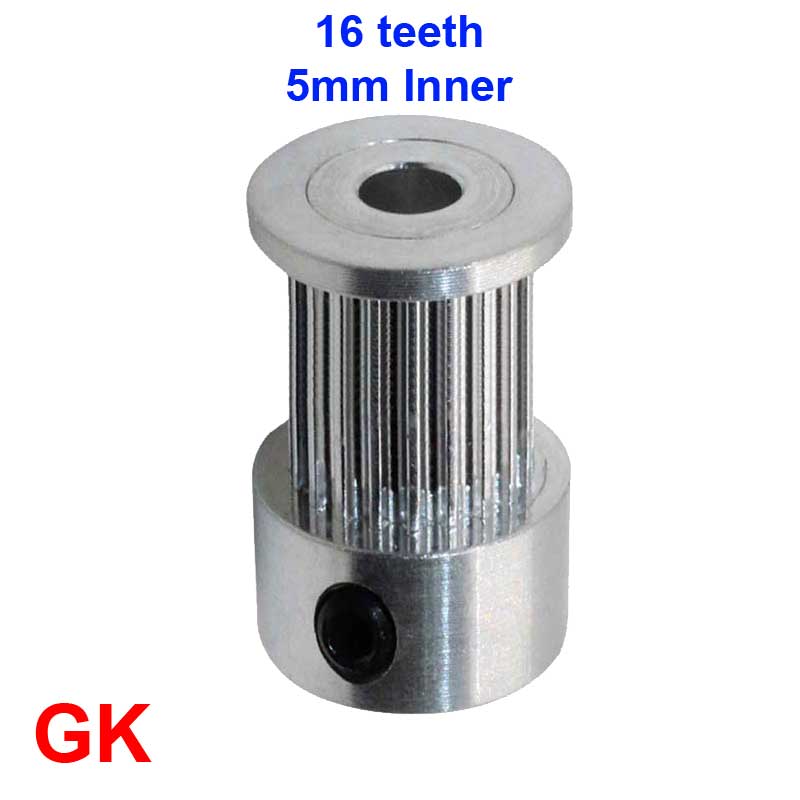

Inner Diameter: 5mm
Teeth: 16 Teeth

Pickup available at Dog Swamp Shopping Centre

Usually ready in 24 hours

Inner Diameter: 5mm
Teeth: 16 Teeth

Sync Wheel Pulley drive normally attached on the stepper motor to move actively with the timing belt, that’s why sync wheel drive without bearing. And the number of teeth is matter and affecting the movement speed, accurate of print result, so if you change different size , different number of teeth sync wheel remember to do the calibration. Also need to remember the lock securely on the stepper motor with the small screw, otherwise it may have movement skipped.

This item is for 10mm open or closed loop timing belt for 3D printer

Specifications

Specifications:

20 Tooth idler pulley

H-type synchronous pulley wheel

Tooth width : 10mm

Material: Aluminum

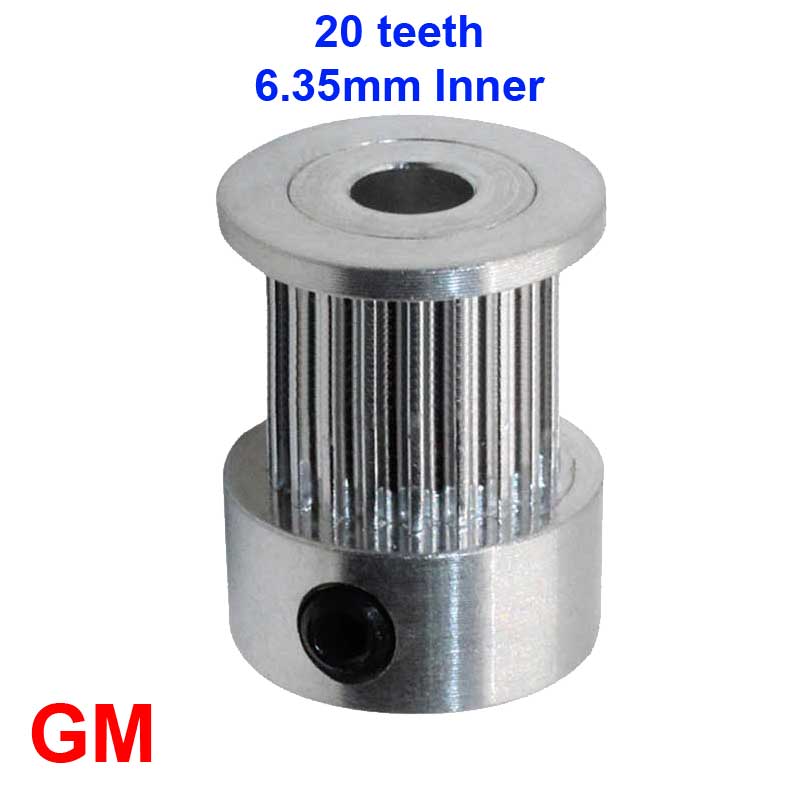

Tooth: 20 (T)

Belt Width: 10 (mm)

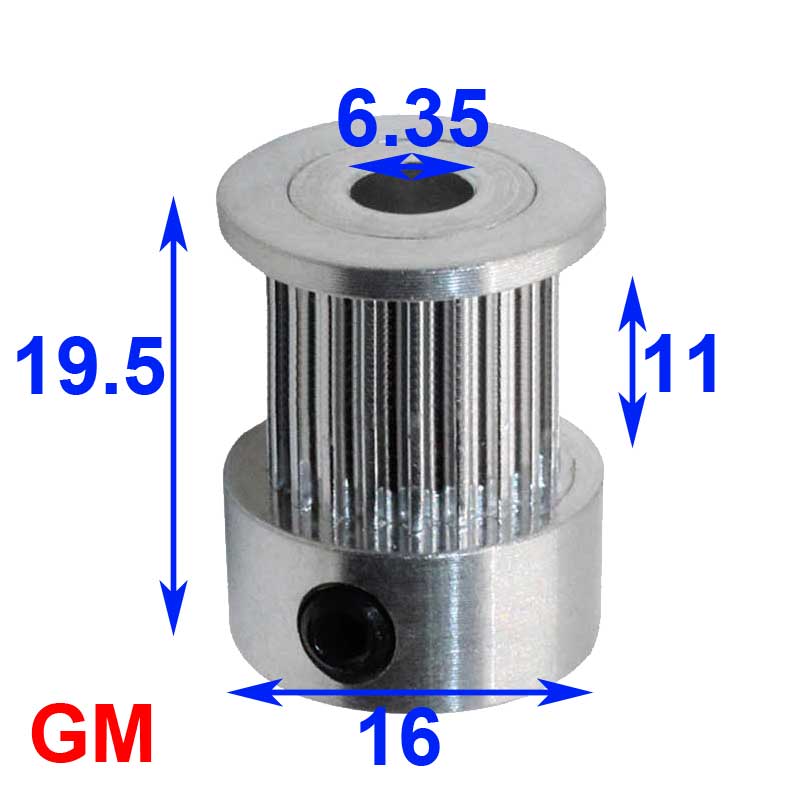

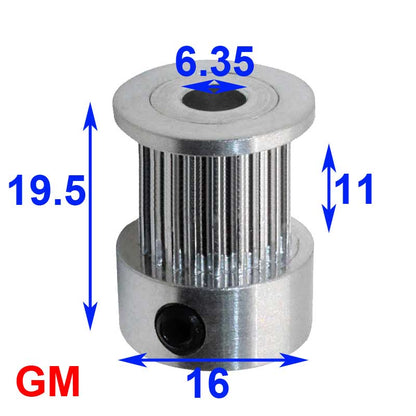

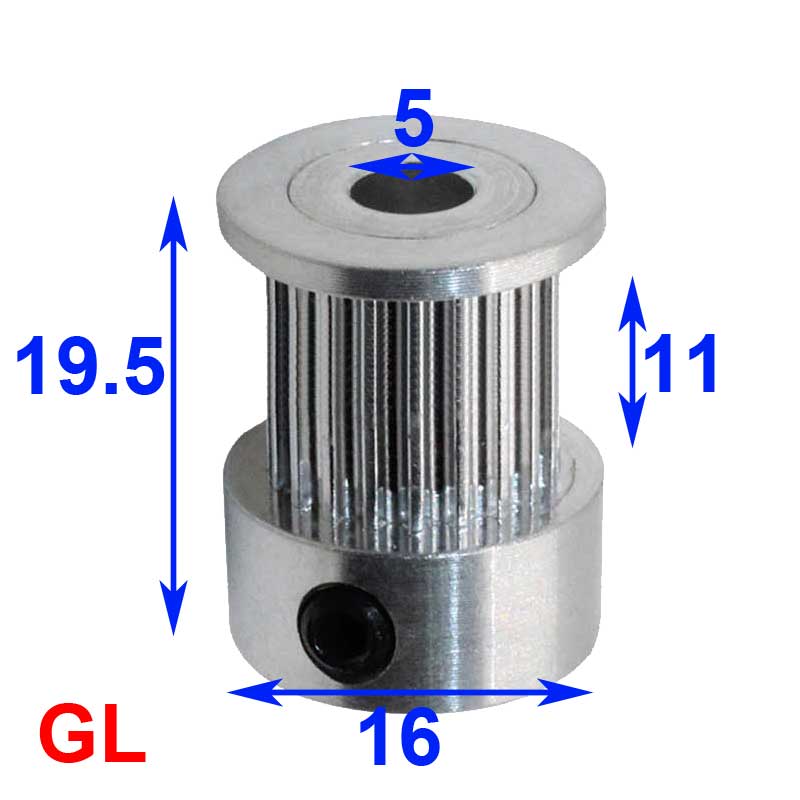

Height : 19.5mm

Unit diameter : 16mm

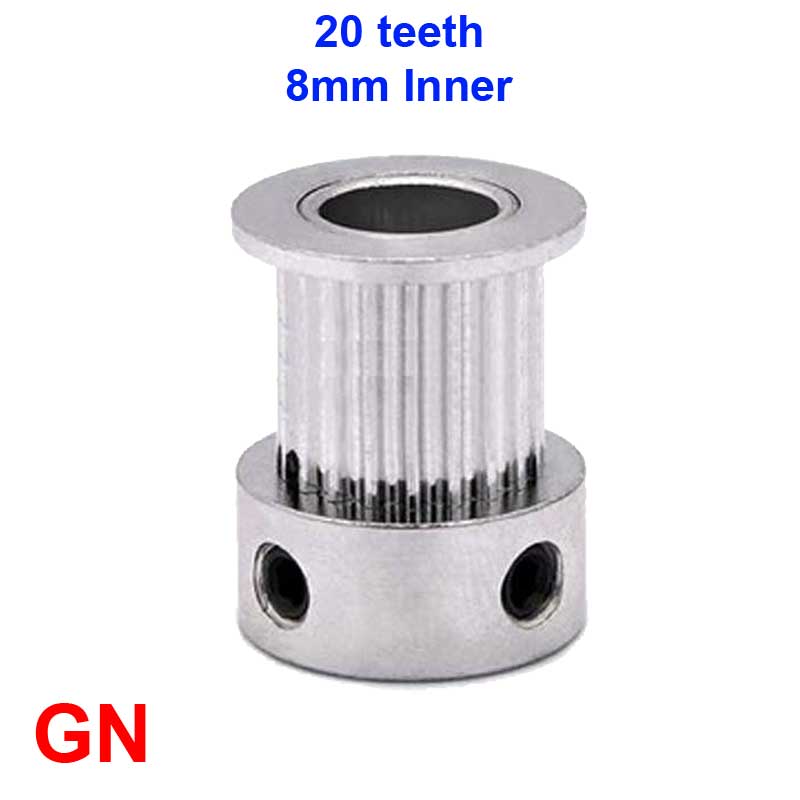

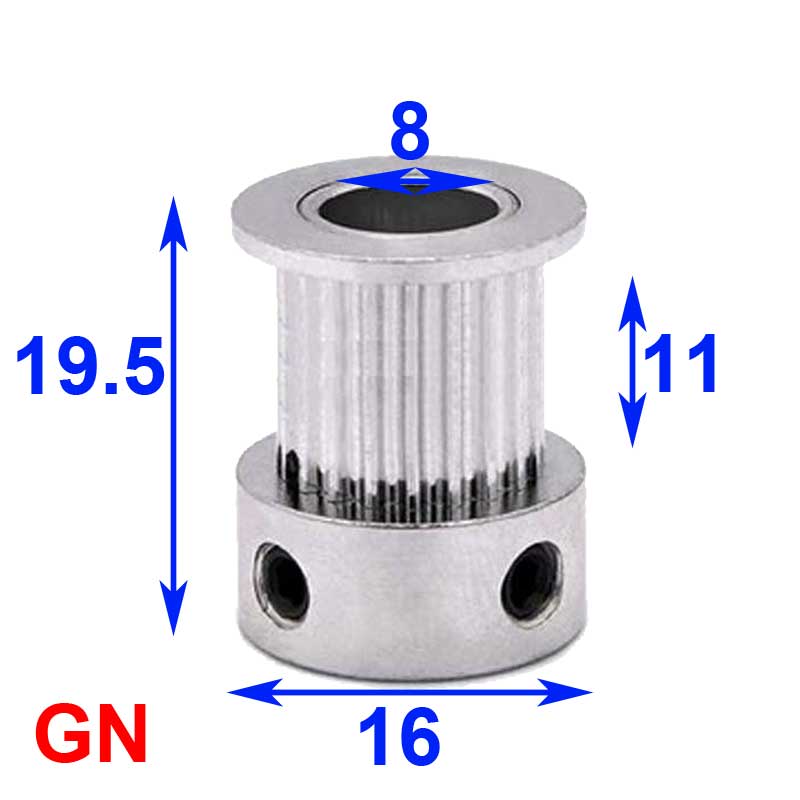

Center hole diameter : 5mm / 8mm
