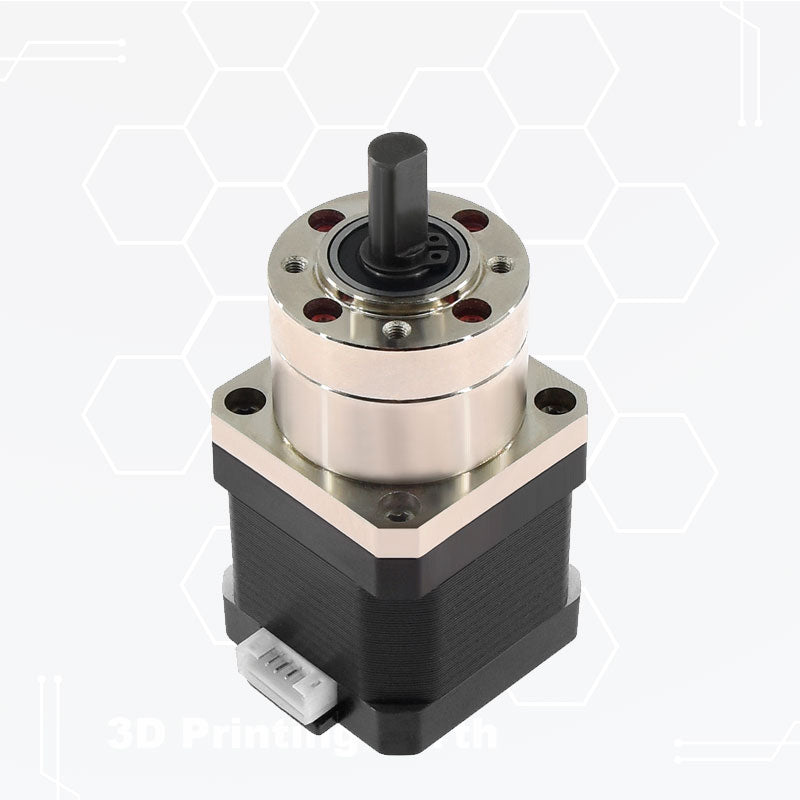

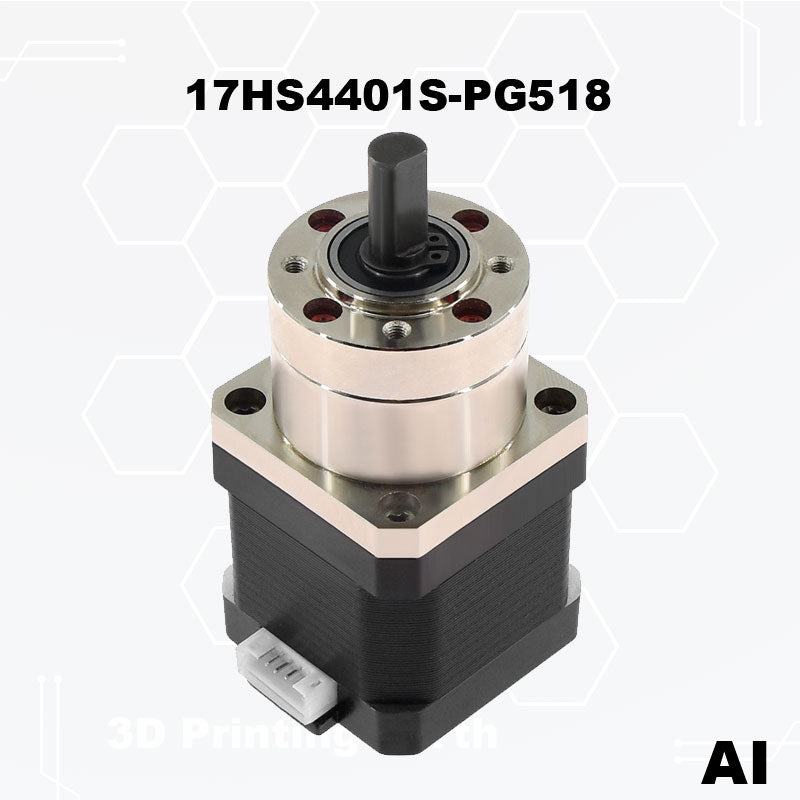

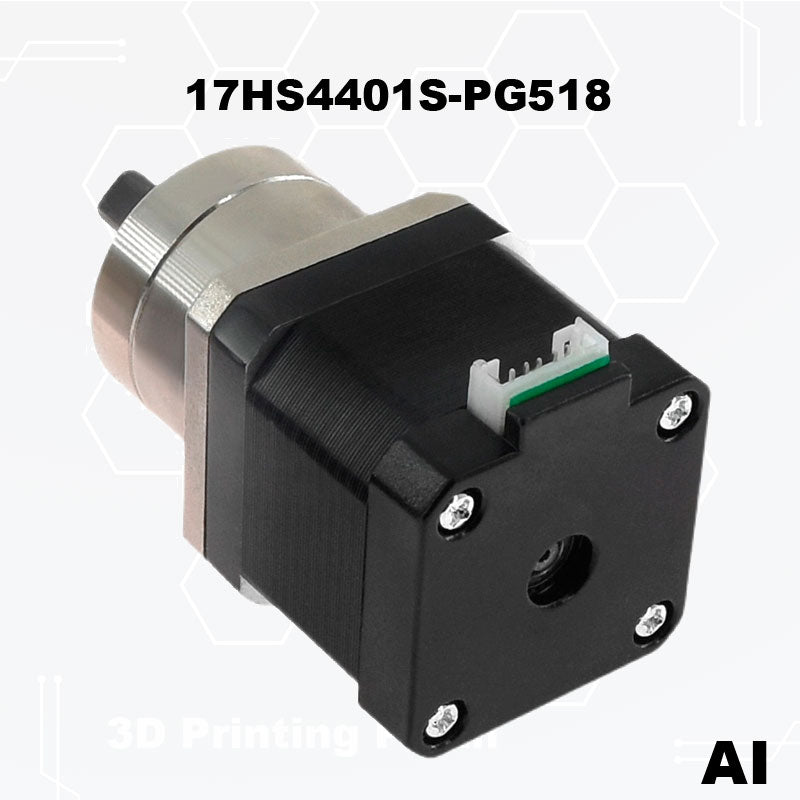

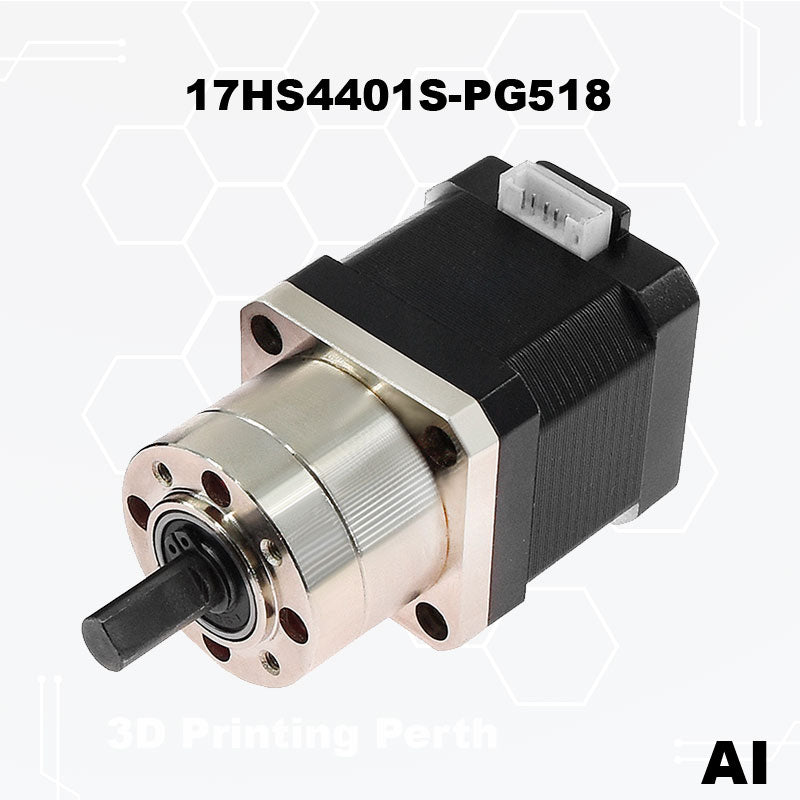

Stepper Motor Nema 17 17HS4401S-PG518 - AI

$30.00

  • Stepper Motor Nema 17 17HS4401S-PG518 - AI.
  • Stepper Motor Nema 17 17HS4401S-PG518 - AI.
  • Stepper Motor Nema 17 17HS4401S-PG518 - AI.
  • Stepper Motor Nema 17 17HS4401S-PG518 - AI for precise motion control.
  • Stepper Motor Nema 17 17HS4401S-PG518 - AI.
Model
$30.00
$30.00
Tax included. Shipping calculated at checkout.
Sorry, it's out of stock.

But we can let you know when it's back in.

This 17HS4401S-PG518 stepper motor multiplies its strength to make it ideal for bowden extruders or other systems that need big strength and precision at slow turn speeds. This motor is rated at a holding torque of 36Ncm  and a maximum continuous current of 1.68A. This makes it ideal for medium size 3D printers or other applications that need a powerful but low cost stepper motor with high precision.

The NEMA 17 stepper motors are the most popular in RepRap projects. They have a 1.8° step angle (200 steps/revolution).



Specifications:

Motor Type

Bipolar Stepper Motor

Step angle (withoat gearbox)

1.8 °

Maintenance Torque

1.68Nm

Current/phase nominal

1.68A

Phase resistence

1.65 ohms

Recommended Voltage

12-24 V

Inductance

I3.2mH ± 20% (1 KHz)

Gearbox type

Planetary

Gear relation (exact)

5 + 2/11

Efficiency

90%

Backlash without load

< = 1 °

Max. permissible tightening torque

$ number nm (283oz-en)

Admissible moment

$ number nm (566oz-in)

Max. axial load of the shaft

50N

Max. radial load of the shaft

100N
