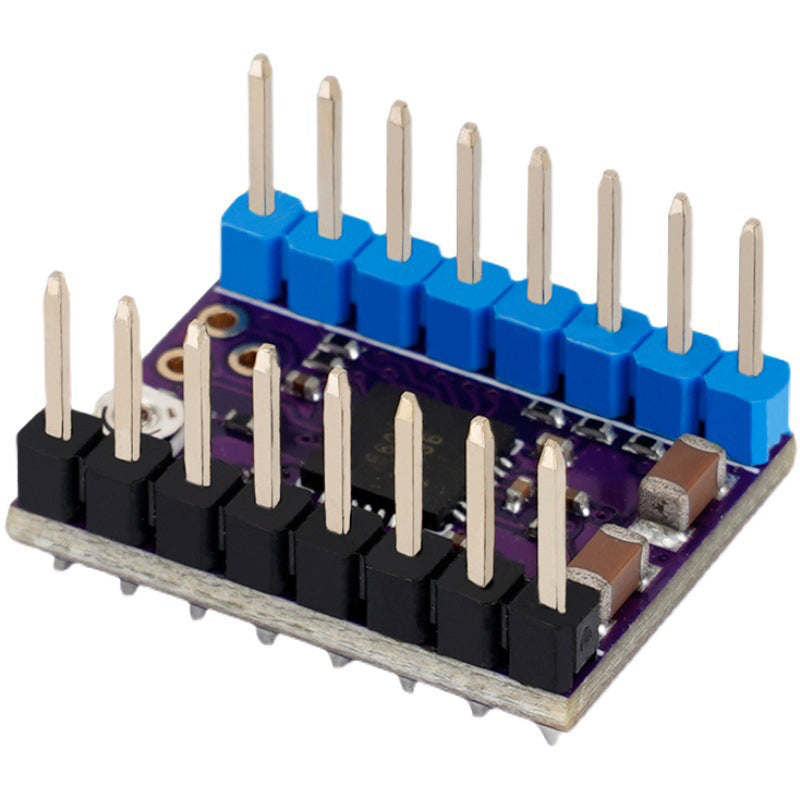

The S6609 High Performance Stepper Motor Driver by 3D Printing Perth - Cirrus Link features a compact circuit board with blue and black pins, engineered for precise control, reliable performance, and excellent adaptability.

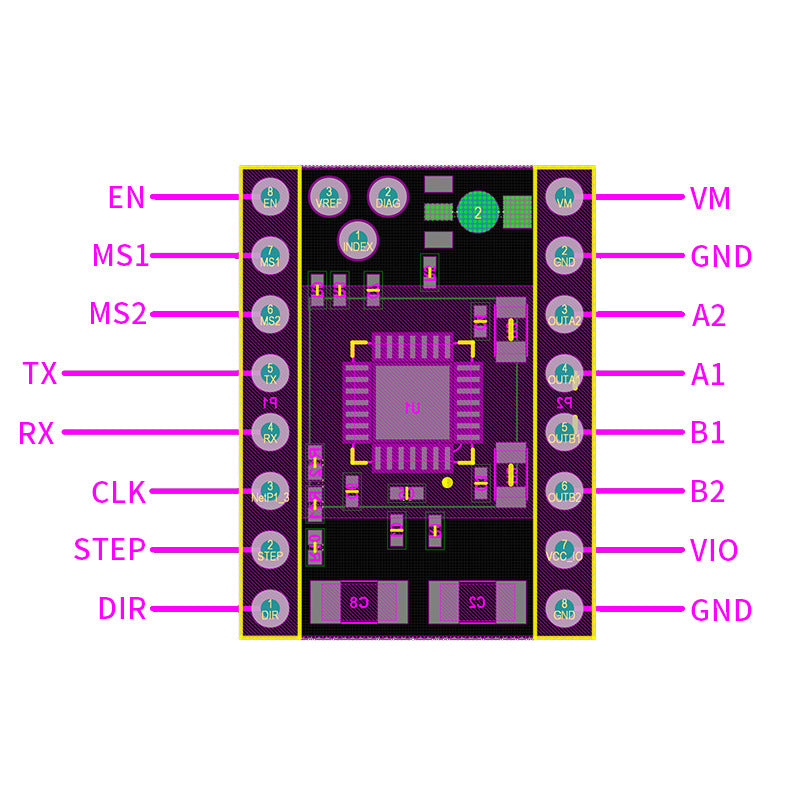

The S6609 High Performance Stepper Motor Driver by 3D Printing Perth - Cirrus Link includes a technical diagram with labeled pins: EN, MS1, MS2, TX, RX, CLK for precision and low noise. Connectors like STEP, DIR, VM, GND, A1, A2, B1, B2 are strategically placed for optimal control and current management.

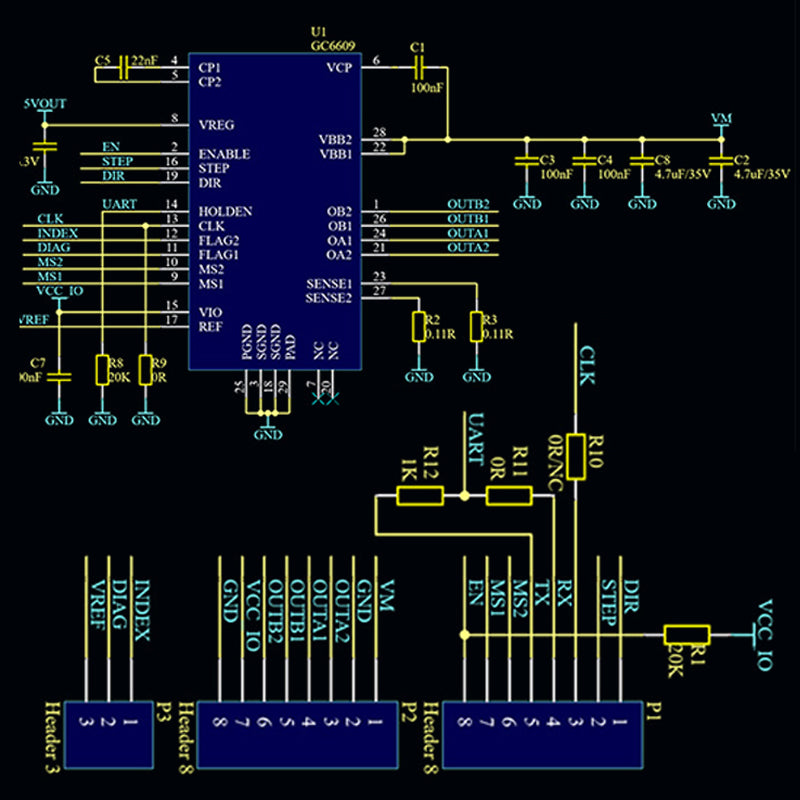

Circuit diagram showcasing a microcontroller module with labeled resistors, capacitors, and pins, featuring the 3D Printing Perth - Cirrus Link S6609 High Performance Stepper Motor Driver for precise control with 256 subdivision and current control.
The S6609 High Performance Stepper Motor Driver by 3D Printing Perth - Cirrus Link features a compact circuit board with blue and black pins, engineered for precise control, reliable performance, and excellent adaptability.
The S6609 High Performance Stepper Motor Driver by 3D Printing Perth - Cirrus Link includes a technical diagram with labeled pins: EN, MS1, MS2, TX, RX, CLK for precision and low noise. Connectors like STEP, DIR, VM, GND, A1, A2, B1, B2 are strategically placed for optimal control and current management.
Circuit diagram showcasing a microcontroller module with labeled resistors, capacitors, and pins, featuring the 3D Printing Perth - Cirrus Link S6609 High Performance Stepper Motor Driver for precise control with 256 subdivision and current control.

3D Printing Perth - Cirrus Link

S6609 High Performance Stepper Motor Driver with 256 Subdivision and Current Control

$11.99
Tax included. Shipping calculated at checkout.

Pickup available at Dog Swamp Shopping Centre

Usually ready in 24 hours

S6609 Stepper Motor Driver

Introducing the S6609 Stepper Motor Driver—an innovative solution for your 3D printing and automation projects. Designed for versatility and high performance, the S6609 is engineered to provide exceptional control over stepper motors, ensuring smooth, silent operation and reliability in your applications.

Key Features

  • High Precision Control: The S6609 supports a STEP/DIR interface, allowing for easy integration into existing systems. Choose from input pulses of 2, 4, 8, or 16 subdivisions, with the capability of internal automatic adjustment to 256 subdivisions for unparalleled accuracy in motor control.
  • Ultra-Low Noise Operation: Enjoy whisper-quiet performance with the S6609’s advanced AGC (Automatic Gain Control) which provides automatic torque compensation across a wide speed range, greatly minimizing motor noise during operation.
  • Flexible Voltage Requirements: This driver operates within a wide voltage range of 4V to 36V. This makes it compatible with a variety of power supplies and ensures performance stability for various applications.
  • Robust Current Handling: The S6609 features a maximum continuous current of 2A and a peak current of 3A. This ensures that it can handle demanding workloads without compromising on performance or reliability.
  • Protection Features: Built-in output short circuit protection and power supply to ground short circuit protection guarantee the longevity of your device and safeguard your precious components from damage.
  • Current Adjustment: The driving current can be adjusted easily either through an adjustable resistor or via software, providing you with the flexibility to tailor the motor performance to suit your specific requirements.
  • STEP/DIR Interface: The S6609 supports a user-friendly interface for easy integration into various control systems, making it an ideal choice for DIY enthusiasts and professionals alike.
  • Flag Function for Alerts: The FLAG function provides an abnormal indication, allowing you to troubleshoot and maintain your systems effectively. Stay informed of potential issues before they result in operational disruptions.
  • Compatible with StepStick Modules: The S6609 is pin-compatible with popular StepStick modules, making upgrades or replacements seamless.

Technical Specifications

Specification Details
Model S6609
Driver Type Stepper Motor Driver
Voltage Range 4V to 36V
Continuous Current 2A
Peak Current 3A
Subdivision Options 2/4/8/16, auto to 256
Size 4 layers 20Z immersion gold TG155 PCB
