42 Stepper Motor 33mm Height 1.8 Degree Step Angle Black with cable

$29.99

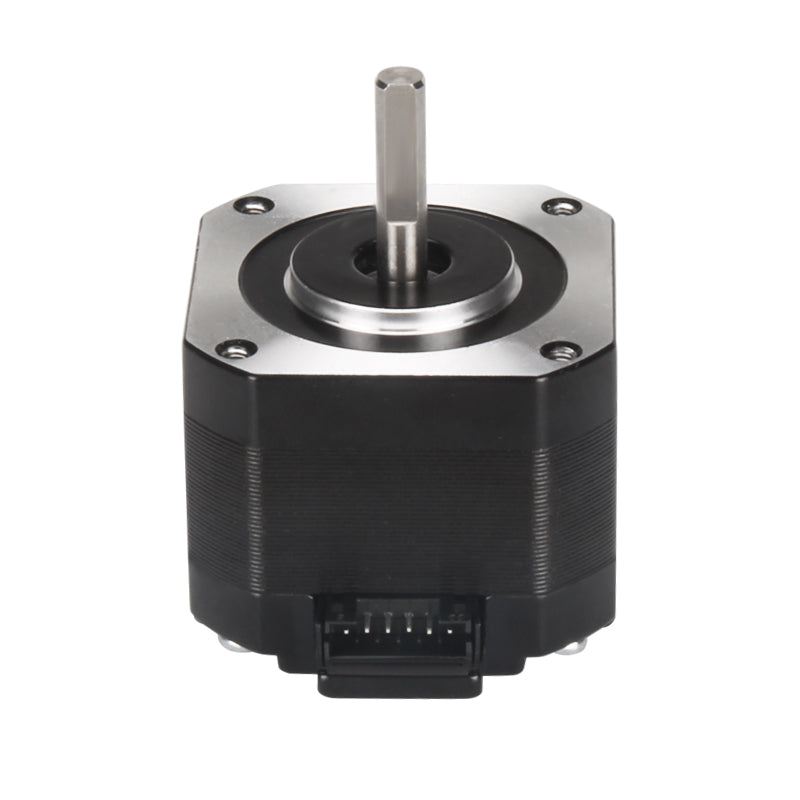

  • The black 42 Stepper Motor by 3D Printing Perth - Cirrus Link features a side connector and protruding top shaft, perfect for 3D printing. With a height of 33mm and a step angle of 1.8 degrees, it's compatible with the Titan Extruder, offering precision and reliability.

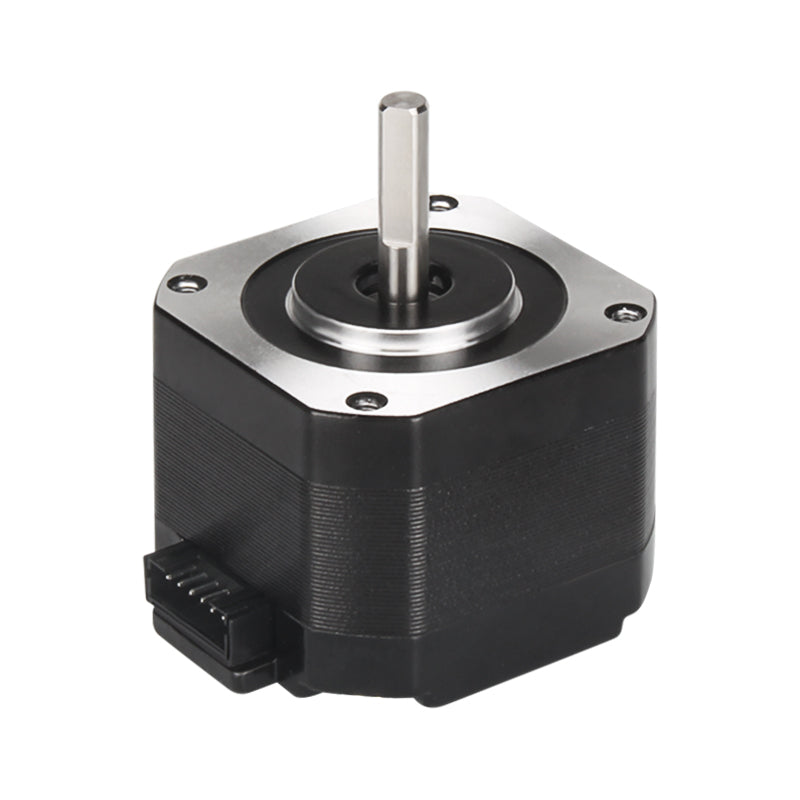

  • Close-up of a black 42 Stepper Motor from 3D Printing Perth - Cirrus Link, featuring four wires, a silver mounting plate, and shaft—perfect for 3D printers or precision in Titan Extruder assemblies.

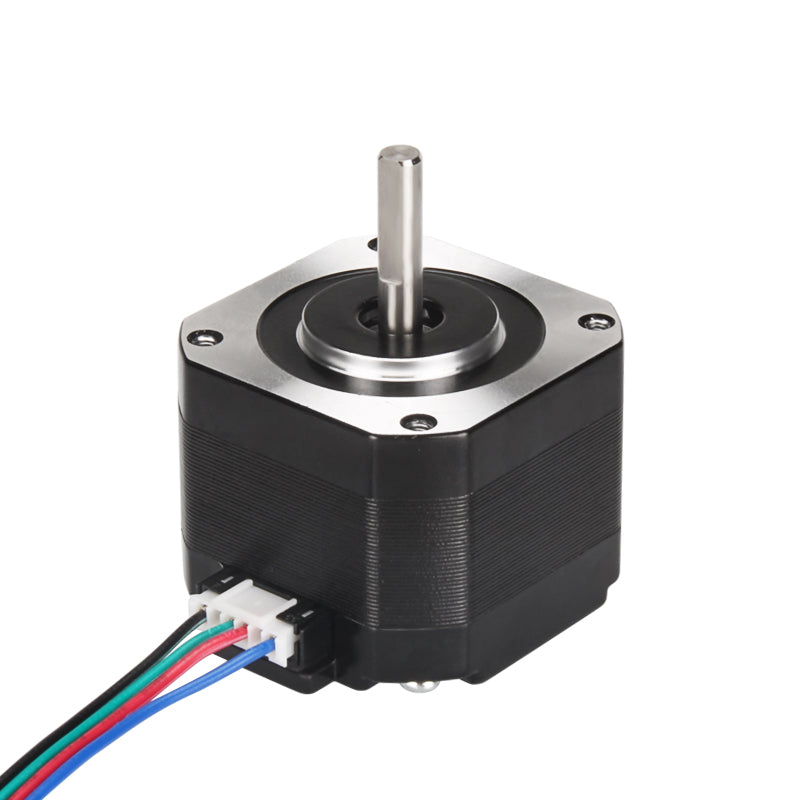

  • The 42 Stepper Motor, with a 33mm height and a 1.8-degree step angle from 3D Printing Perth - Cirrus Link, is perfect for precise movements. It features black coloring with visible wiring and a protruding metal shaft, set against a plain white background.

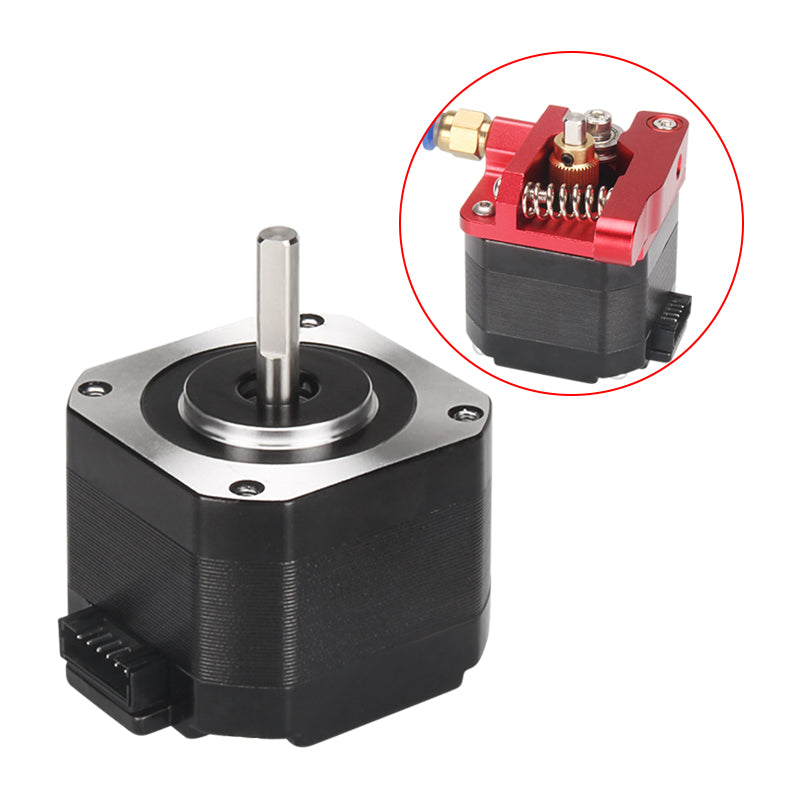

  • The 42 Stepper Motor by 3D Printing Perth - Cirrus Link, with a 33mm height and 1.8-degree step angle, offers a sleek black design and includes a cable. Ideal for Titan Extruders, it's perfect for precision in 3D printing projects thanks to its visible bottom connector pins.

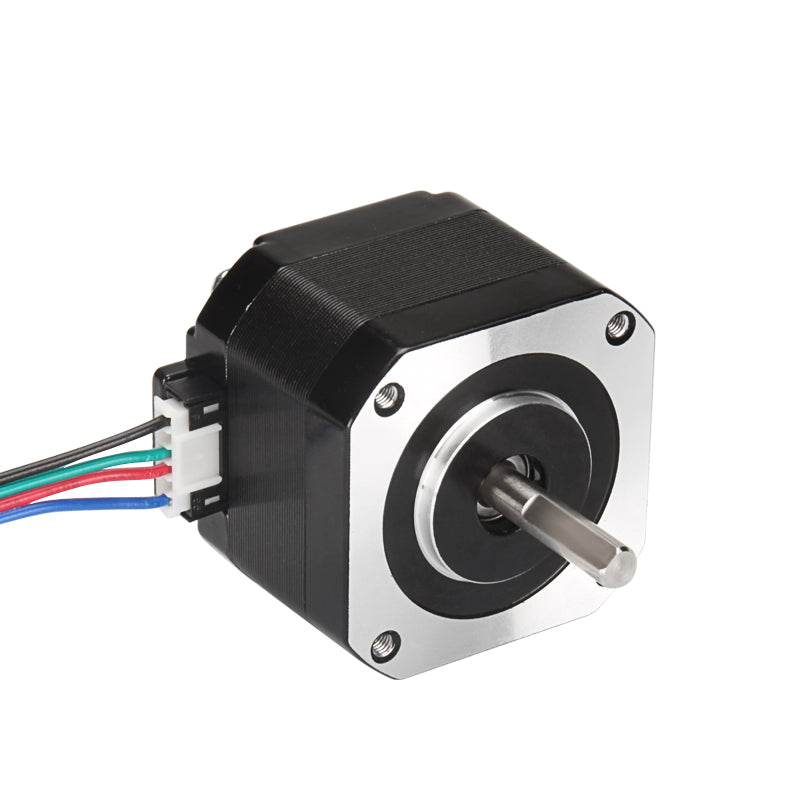

  • The 42 Stepper Motor (33mm Height, 1.8° Step Angle) by 3D Printing Perth - Cirrus Link, features a metal shaft and connector, ideal for 3D printing. A zoomed-in view reveals its internal mechanism.

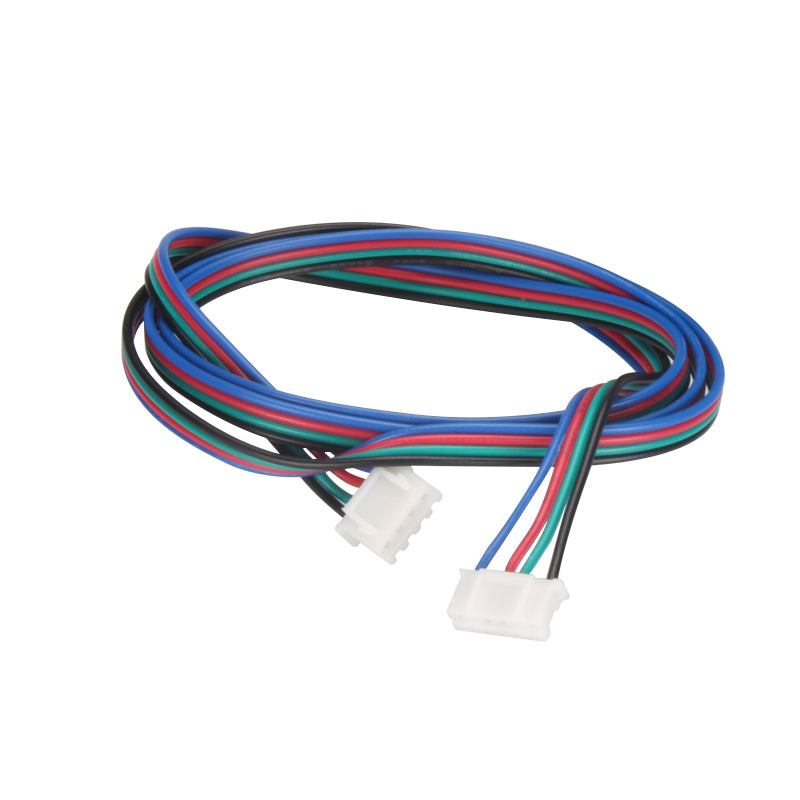

  • A coiled multicolored flat cable with white connectors, ideal for linking the 42 Stepper Motor (33mm Height, 1.8° Step Angle) by 3D Printing Perth - Cirrus Link to a Titan Extruder in your 3D printing projects.

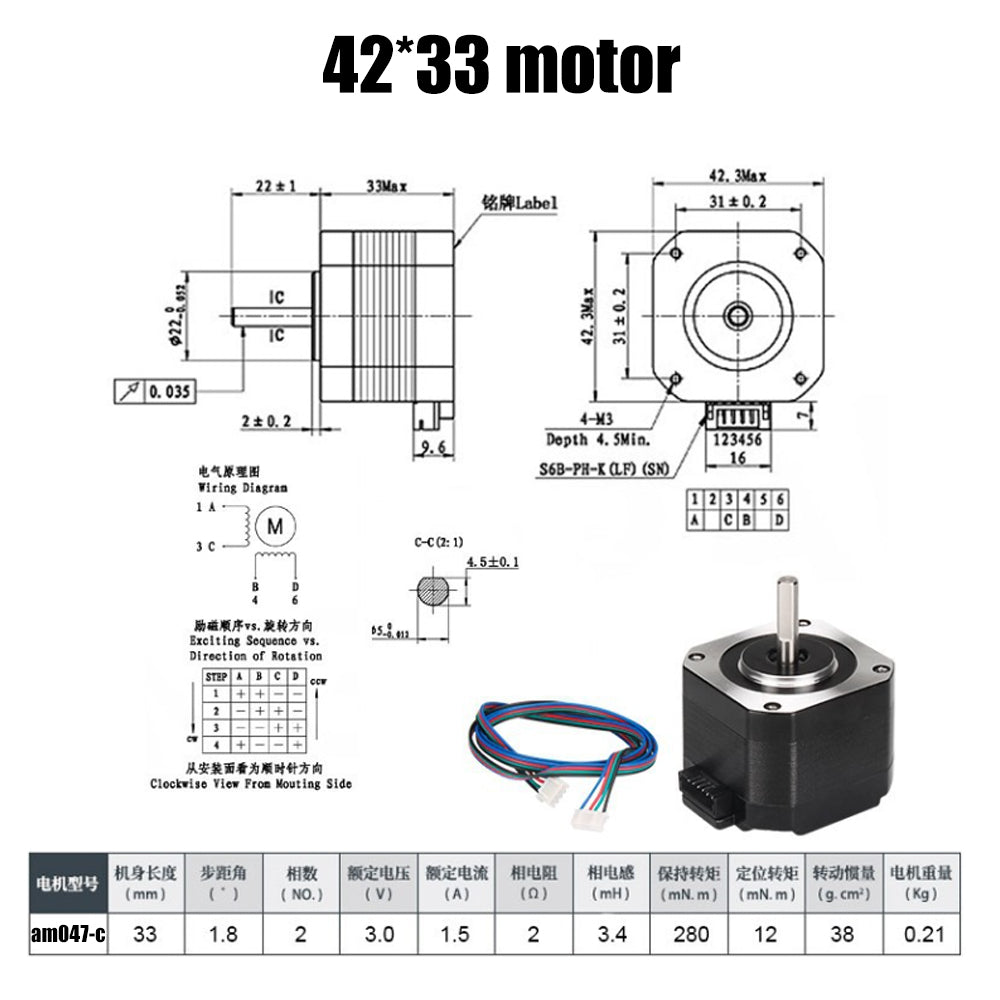

  • Technical diagram and photo of 3D Printing Perth's 42 Stepper Motor (33mm, 1.8° step angle) with cable, featuring specifications and wiring details—ideal for Titan Extruder integration in your 3D printing projects.
$29.99
$29.99
Tax included. Shipping calculated at checkout.

Premium NEMA 17 Stepper Motor for Titan Extruder

Enhance your 3D printing experience with our top-of-the-line NEMA 17 Stepper Motor, specifically designed for use with Titan Extruders. This high-performance motor brings precision, reliability, and efficiency to your printing setup, ensuring exceptional results every time.

Key Features

  • Type: Two-phase, four-wire stepper motor for enhanced performance.
  • Dimensions: Compact size of 42mm x 42mm x 33mm, perfect for fitting into tight configurations without sacrificing power.
  • Rated Current: 1.5A, designed to deliver optimal torque while managing heat efficiently.
  • Constant Voltage: 3V, ensuring stable operation at various load conditions.
  • Step Angle: Precise 1.8° steps for smooth and accurate motion, enhancing layer accuracy and overall print quality.
  • Product Weight: 230g, balances robustness with lightweight design for easy integration.
  • Matching Wire: Comes with an 800mm long cable, featuring XH2.54 terminal connections for convenient and secure setup.

Enhanced Performance

The NEMA 17 Stepper Motor is engineered for peak performance, providing an excellent balance between speed and torque. With its 1.5A rated current, this motor ensures copious torque for filament feeding and retraction, minimizing the risk of jams and improving your overall workflow.

The 1.8° step angle facilitates incremental movement, allowing for finer control over print adjustments, critical for high-detail models. This precision is further augmented by the motor’s robust construction, which reduces resonance, noise, and vibration during operation.

Compatibility

Designed to be perfectly compatible with Titan Extruders, this stepper motor will fit seamlessly into your existing 3D printing setup. The clear wiring using XH2.54 terminals allows for quick, hassle-free installation and ensures a stable connection for uninterrupted operation.

Installation Instructions

Installing the NEMA 17 Stepper Motor is straightforward:

  1. Ensure your printer is powered off and unplugged to prevent damage or accidents.
  2. Remove the existing stepper motor from your Titan Extruder assembly.
  3. Connect the new motor to your extruder, aligning the XH2.54 terminals properly.
  4. Secure the motor using the mounting screws, ensuring it is tightly fitted but careful not to over-tighten.
  5. Reconnect any wiring as per your printer’s specifications, then power on your 3D printer to test functionality.

Benefits of Upgrading to NEMA 17

Upgrading to our NEMA 17 Stepper Motor for your Titan Extruder can yield significant benefits, including:

  • Improved Print Quality: Achieve finer details and smoother finishes thanks to enhanced torque and stepping precision.
  • Increased Reliability: Reduced filament jams and smoother operation, making your printing sessions more productive.
    • <
