Limit Switch Kit with Mechanical Switch and 70CM Cable

$3.49

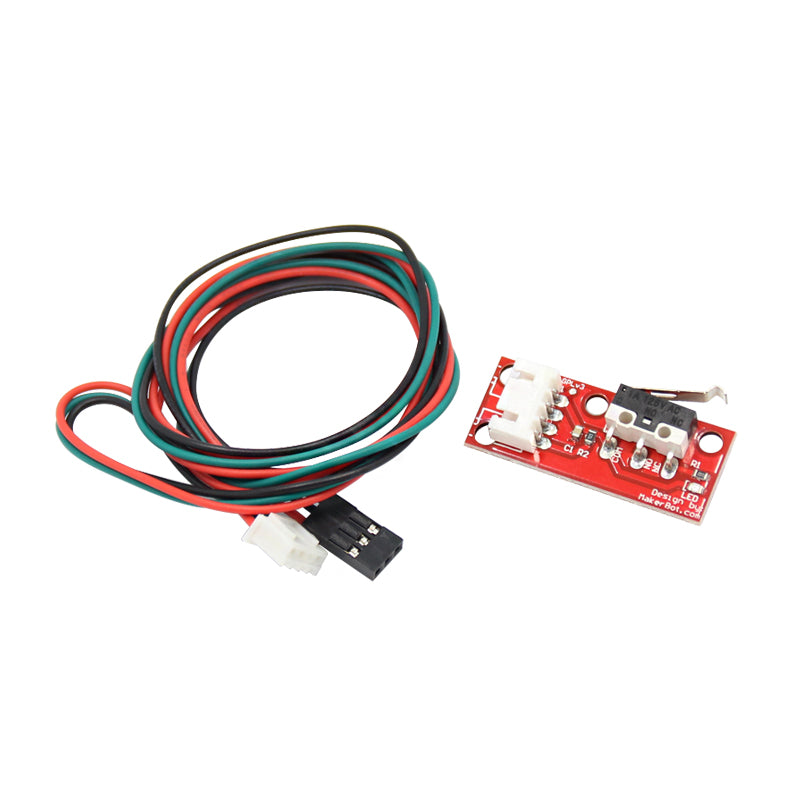

  • The Limit Switch Kit from 3D Printing Perth - Cirrus Link features a red electronic sensor module with connectors and a 70CM black, red, and green cable with plugs, ideal for your latest 3D printing project or as an essential component of the kit.

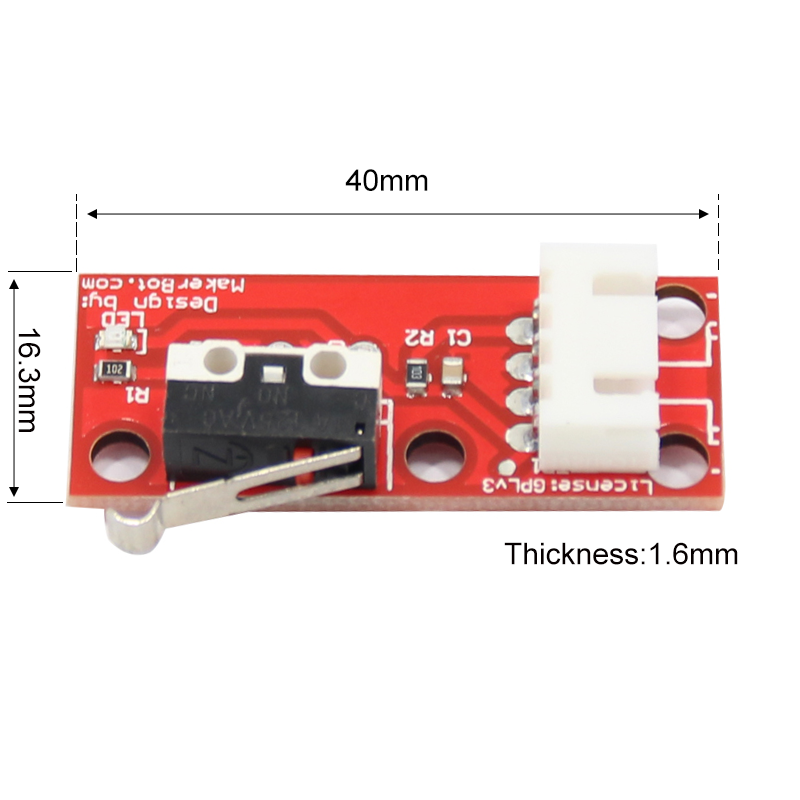

  • The 3D Printing Perth - Cirrus Link Limit Switch Kit includes a red circuit board measuring 40mm x 16.3mm x 1.6mm, complete with a switch and connector, ideal for precision in your 3D printing projects or as part of a comprehensive kit.

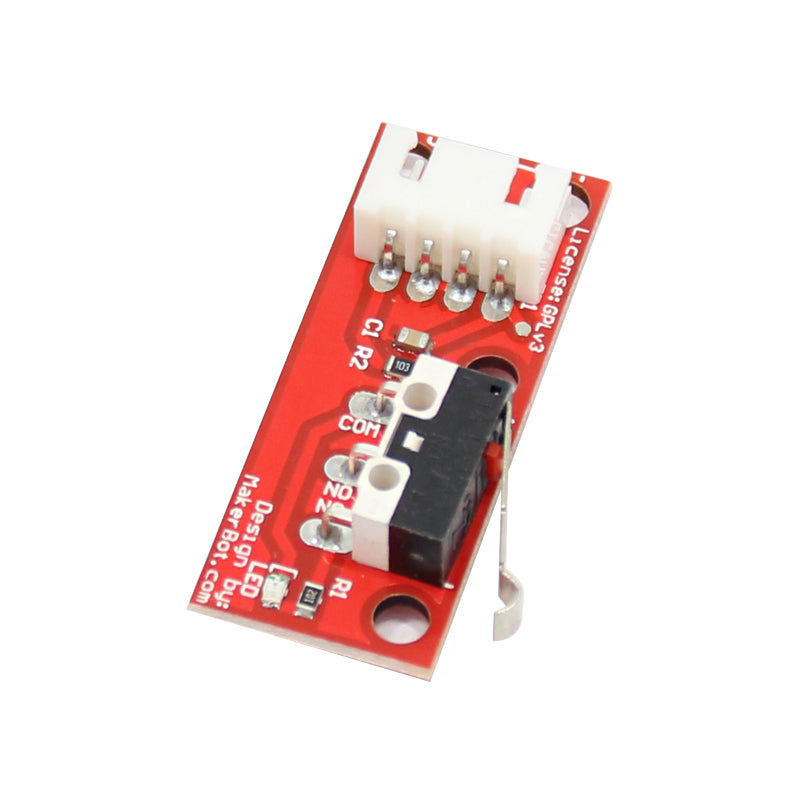

  • Close-up of a red limit switch module from the "Limit Switch Kit with Mechanical Switch and 70CM Cable" by 3D Printing Perth - Cirrus Link, highlighting a micro switch and white connector on a circuit board.

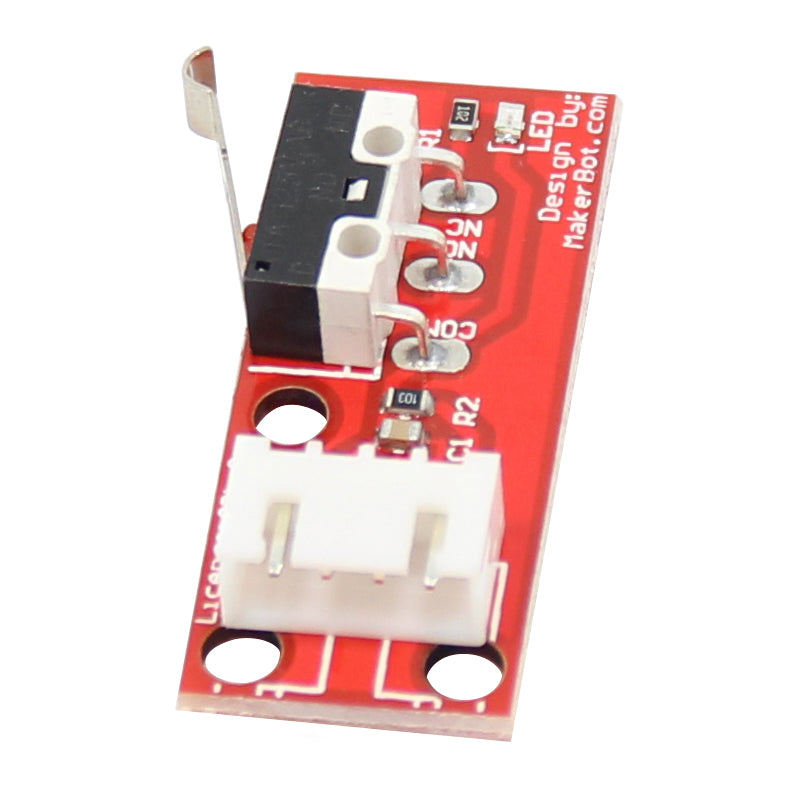

  • Close-up of a red Limit Switch Kit by 3D Printing Perth - Cirrus Link, featuring white connectors and small components, commonly used with mechanical switches in 3D printers.

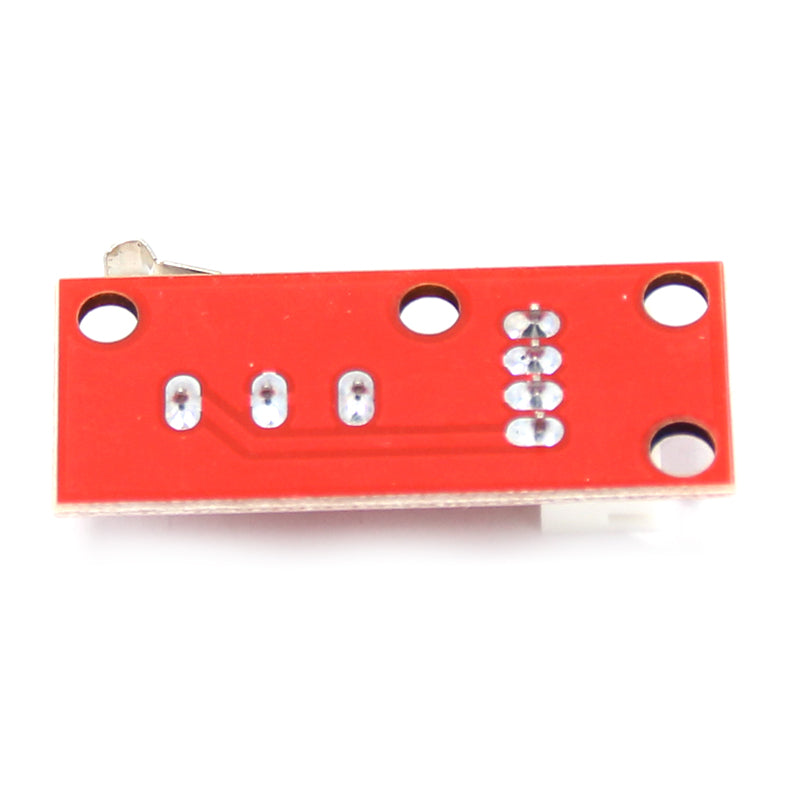

  • The Limit Switch Kit by 3D Printing Perth - Cirrus Link features a red circuit board with a mechanical switch, soldered components, and four circular mounting holes, designed for 3D printing applications. Includes a 70CM cable.
$3.49
$3.49
Tax included. Shipping calculated at checkout.

Limit Switch Kit for 3D Printers

Enhance your 3D printing experience with our comprehensive Limit Switch Kit, designed for easy installation and reliable performance. Whether you are a seasoned builder or a beginner diving into the world of 3D printing, this kit provides everything you need to ensure accurate positioning and improved safety for your 3D printer. Let's explore each component and its benefits in detail.

Product Overview

The Limit Switch Kit includes:

  • 1) A Mechanical Switch: This switch is engineered with precision to offer reliable performance in detecting the position of your 3D printer's moving parts. Its robust design allows for a long lifespan, reducing the need for replacements. The mechanical switch acts as an essential safety device, preventing the printer from exceeding its designated limits.
  • 2) Strip 3 Pin 70CM Cable: The kit includes a durable 70CM cable made with high-quality materials to ensure stability and prevent signal loss. The 3-pin configuration allows for a straightforward connection to your printer’s control board.

Connection Instructions

Setting up your Limit Switch Kit is a breeze! Follow these simple instructions for a seamless connection:

  1. Connect the Red Line: Attach the red wire to VCC (RAMPS +). This connection supplies power to the mechanical switch, ensuring proper functionality.
  2. Connect the Black Wire: Next, connect the black wire to GND (RAMPS -). This connection grounds the switch and is essential for circuit completion.
  3. Connect the Green Line: Finally, connect the green wire to SIGNAL (RAMPS S). This wire transmits the signals from the mechanical switch to the control board, enabling it to respond accurately to the switch’s state.

How Limit Switches Improve Your 3D Printing Experience

Limit switches are a critical component in any 3D printer, ensuring the print head and build plate do not travel beyond their designated areas. By integrating at least three mechanical switches into your system, you can achieve several advantages:

  • Precise Positioning: Limit switches provide accurate feedback to the printer’s control system, allowing it to know the exact positions of the print head and bed. This information is crucial for reliable printing, helping to avoid crashes and other mechanical issues.
  • Enhanced Safety: With limit switches in place, your printer can stop automatically if it reaches the end of its range of motion. This reduces the risk of damage to both the printer and the printed object.
  • Easy Installation: Our Limit Switch Kit is designed for user-friendly setup, meaning you can get your printer up and running in no time. The straightforward wiring makes it accessible for users of all skill levels.
  • Common Styles: The kit features widely-used mechanical switch designs, ensuring that you can easily find replacements if necessary. The compatibility with standard components makes it a versatile choice for various 3D printer models.

Tips for Optimal Use

While the Limit Switch Kit is designed for seamless integration, here are some tips to ensure you get the best out of your system:

  • Make sure all connections are secure to prevent any signal loss or malfunction.
