OpenBuild

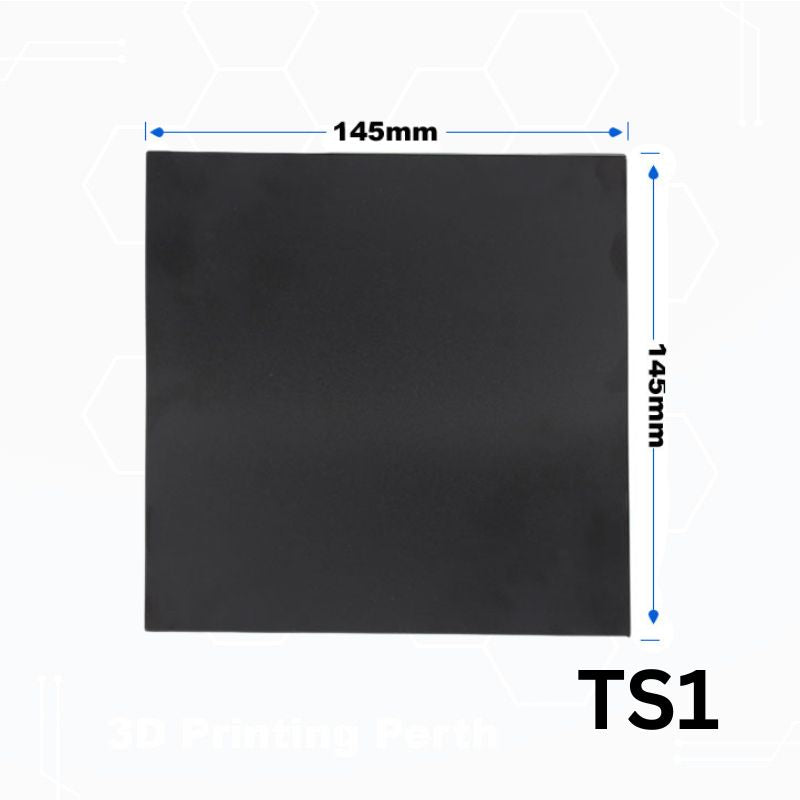

Build platform printing bed mat surface 145mm X 145mm

  • Sale
  • $6.50
  • Regular price $8.00
Tax included.





That is recommended print bed surface for 3D printing which same usage as BuildTak.

Why this is the good idea for 3D printing surface?
This is a thin, durable plastic sheet that adheres to the print bed of FFF (fused filament fabrication) 3D printers. It provides an optimal printing surface for 3D objects to adhere to for the duration of a print, while allowing for a clean, easy removal of completed builds.  You can put away the blue tape, Kapton, hairspray, ABS juice, Perfboard or other solutions.


Key Benefits:
Ease of use
Creates an optimal bond between the 3D printed object and the build surface for the duration of the print while preventing curling or object coming loose. When builds are complete, the 3D printed object can be cleanly removed with minimal prying or scraping.

Longevity
Surface sheets are more rigid and durable and last longer than traditional methods like Kapton. This reduces time in continually applying print surfaces and extends protection to the original print bed surface.

Ease of installation
Easy installation to the bare print bed and clean removal without adhesive residue usually with less air bubbles.  There is no need for pre-treatments such as hairspray or acetone slurry.

Works with MANY filaments
Works with ABS, PLA, HIPS, PET+, Brick, Wood & Flexible (TPE) filaments; additionally we have had success with getting nylon and t-glase (PETT) to adhere when used with a thin layer of washable glue stick on the surface.  This means you can use different filament materials without the need to change the printing surface.

Heat Resistant
Patent-pending heat resistant composition, developed to withstand the typical temperatures used on heated print beds (i.e. 110-125C). With safety in mind, which is composed of raw materials that are UL flame rated.



Specifications

Dimensions 145mm X 145mm
Sticking Side M3
Package Qty Single
Color Black

Instructions



Instructions
1. Wipe down your bare build platform making sure it is clean and free of debris.
2. Trim the surface sheet to match the size of your build plate (if not already).

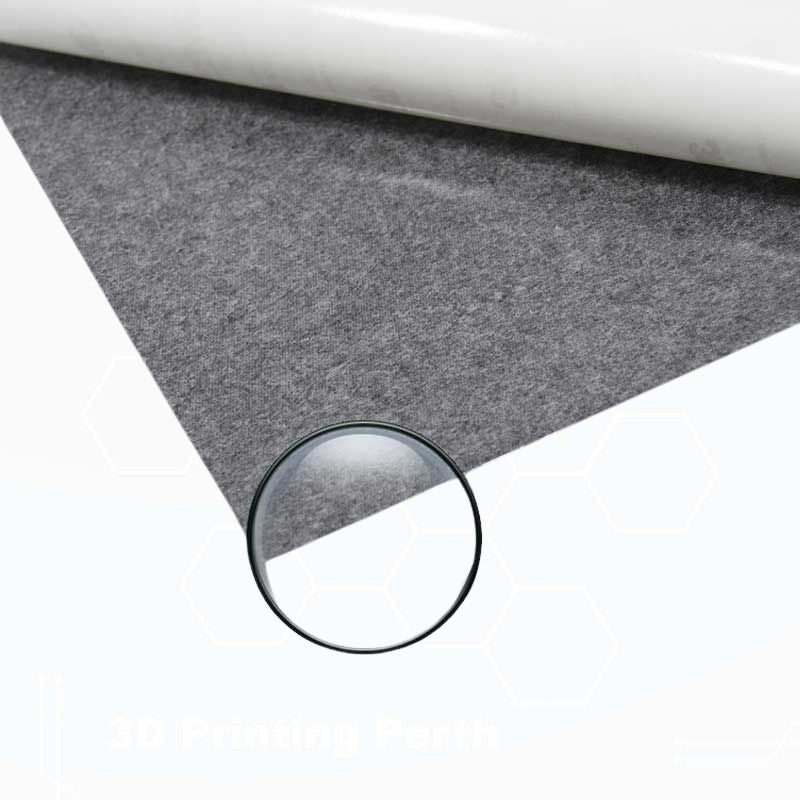

3. Remove the white adhesive liner and apply the surface sheet to the bare build plate. Start from one edge of the build plate and work your way to the other edge, smoothing the surface sheet with a credit card or decal applicator.
4. Re-level your surface and ensure that the nozzle height is properly set (usually between .10 – .25mm).



Tips:
To ensure the longevity of the surface sheet, use a spatula or putty knife with smooth/rounded corners. Avoid using solvents, such as acetone, to clean it.
Typically with other build surface solutions, such as blue masking tape or polyimide, a heavy deposit or “smoosh” is used on the first print layers.
