Anti-Vibration Flexible Coupling for Lead Screw Motion

$5.49

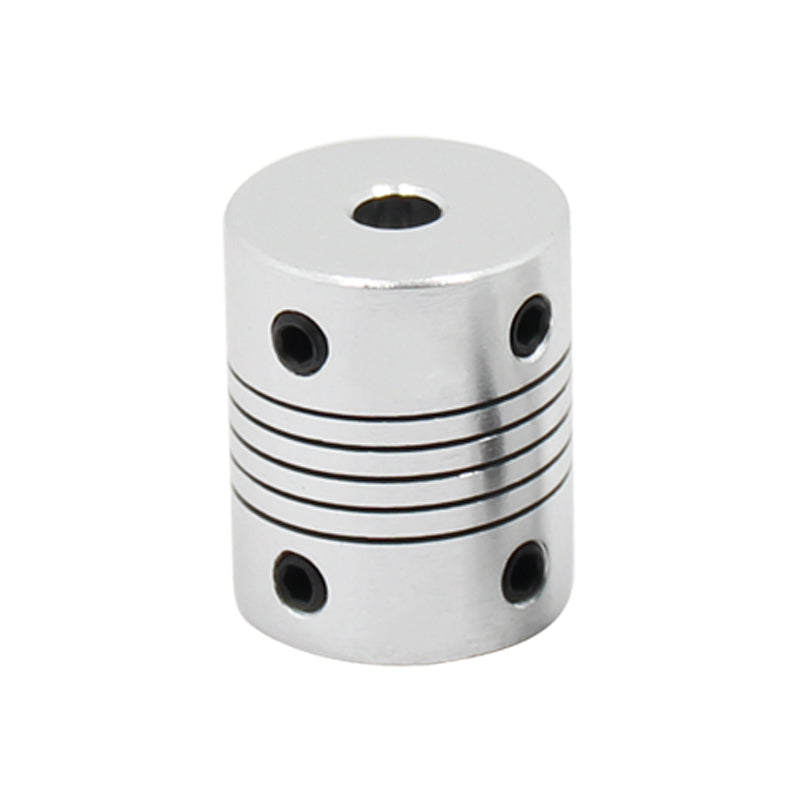

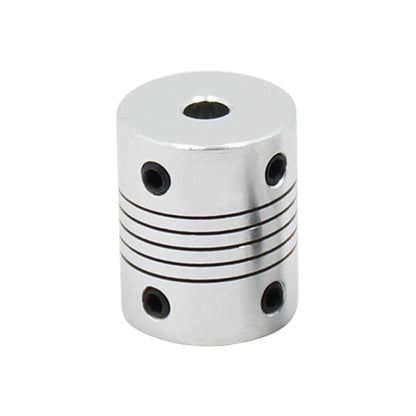

  • The ASR Anti-Vibration Flexible Coupling for Lead Screw Motion features four black set screws and spiral cut slots, perfect for connecting shafts in mechanical assemblies or serving as a vibration damper on 3D printer Z-axes.

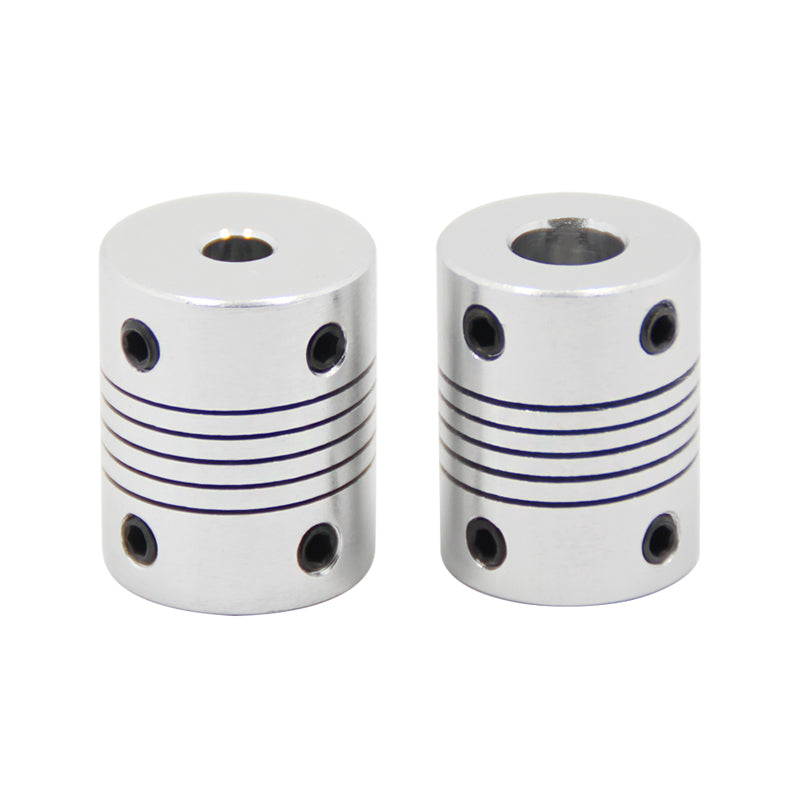

  • Two ASR Anti-Vibration Flexible Coupling for Lead Screw Motion units, silver with black grooves and multiple screw holes, are shown side by side on a white background—perfect for 3D printer Z-axis applications.

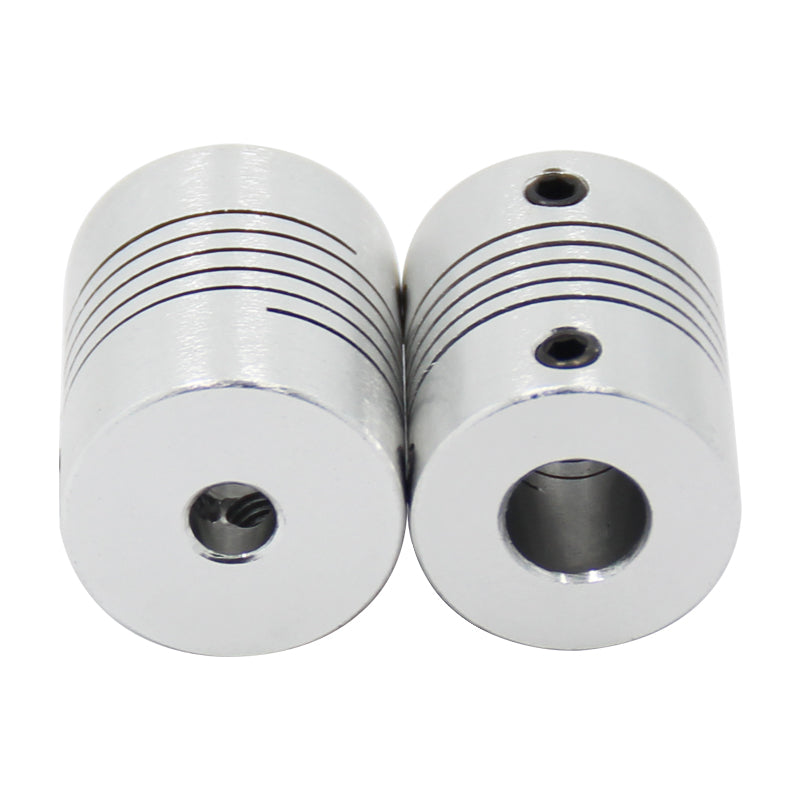

  • Two ASR Anti-Vibration Flexible Couplings for Lead Screw Motion, featuring helical cuts and set screw holes, ideal for 3D printer Z-axis use, are shown side by side on a white background.

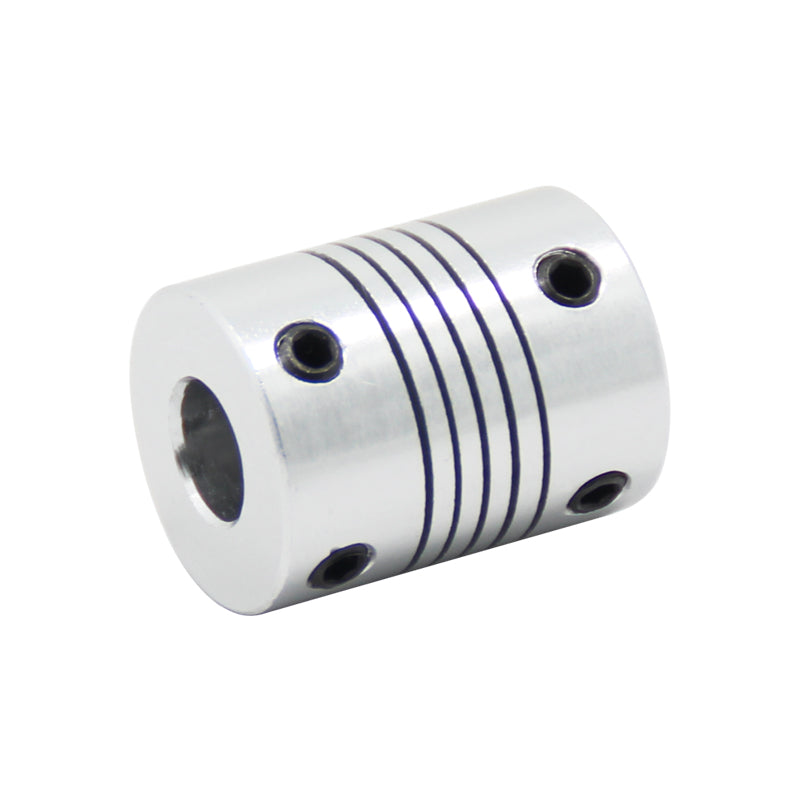

  • The ASR Anti-Vibration Flexible Coupling for Lead Screw Motion features four screw holes and three parallel grooves, making it ideal for connecting rotating shafts in assemblies like a 3D printer Z-axis.

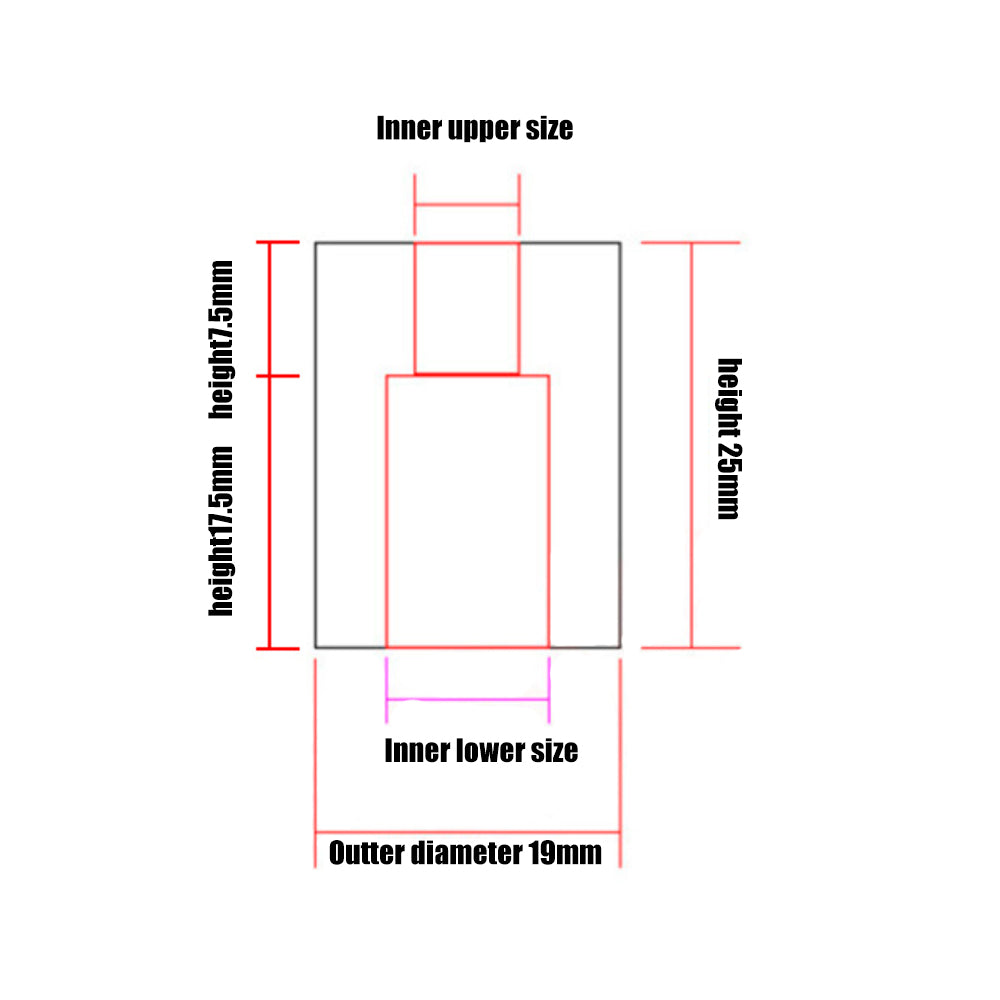

  • Technical diagram depicting the ASR Anti-Vibration Flexible Coupling for Lead Screw Motion with 17.5 mm, 7.5 mm, and 25 mm heights, inner upper/lower sizes, and a 19 mm outer diameter—ideal for 3D printer Z-axis vibration reduction.

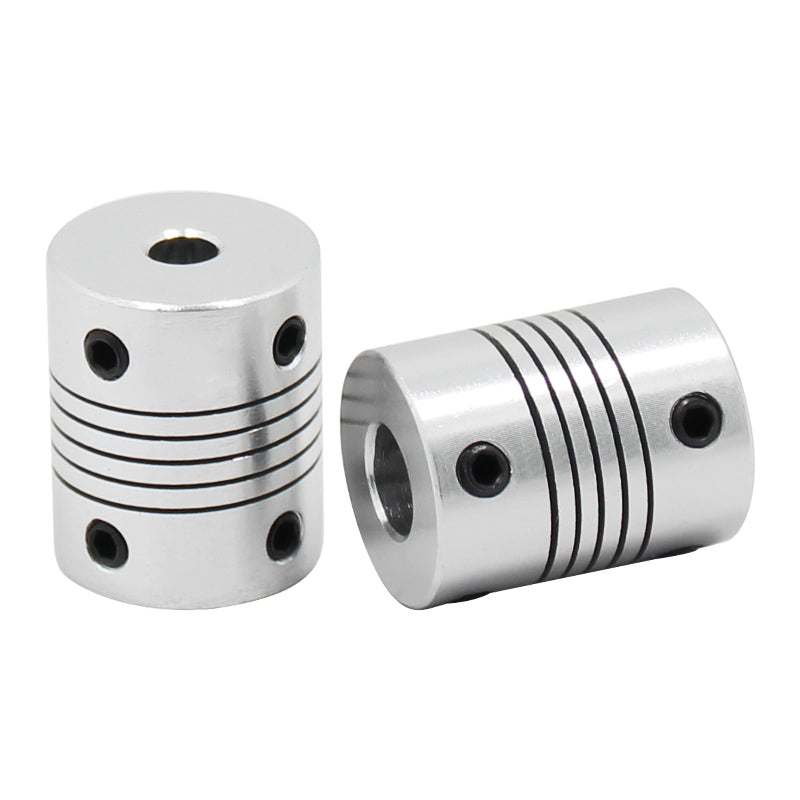

  • Two ASR Anti-Vibration Flexible Couplings for Lead Screw Motion, featuring helical cuts and set screws—perfect for connecting rotary components or reducing vibration in 3D printer Z-axis assemblies.
Size
$5.49
$5.49
Tax included. Shipping calculated at checkout.

With this flexible shaft coupling, reliable mechanical connection between the Z-axis stepper motor and lead screw is achieved in 3D printers. The coupling absorbs minor misalignments and mechanical vibration, improving print layer precision and motor longevity. Designed with slotted aluminum alloy and elastomer inserts, it allows controlled flex while maintaining torque transmission. Ideal for vertical lead screw configurations across a range of FDM printer models, this coupling ensures smoother Z-axis travel and reduces binding risks in dual or single screw systems.


📐 Product Specifications

  • Coupling type:

    • Flexible shaft coupling with elastomer spacer

  • Material:

    • CNC-machined aluminum alloy

  • Outer diameter:

    • ~18 mm

  • Length:

    • ~25 mm

  • Features:

    • Anti-vibration buffering

    • Axial flex tolerance ±0.3 mm

    • Radial compensation ±0.15 mm

  • Compatibility:

    • NEMA 17 stepper motors

    • Standard M8/M5 threaded lead screws

  • Installation:

    • Dual grub screws for firm grip

    • Hex wrench included (optional)



Designed to absorb motion irregularities and protect stepper motors, this flexible coupling ensures smooth, stable Z-axis lead screw performance for enhanced print results.
