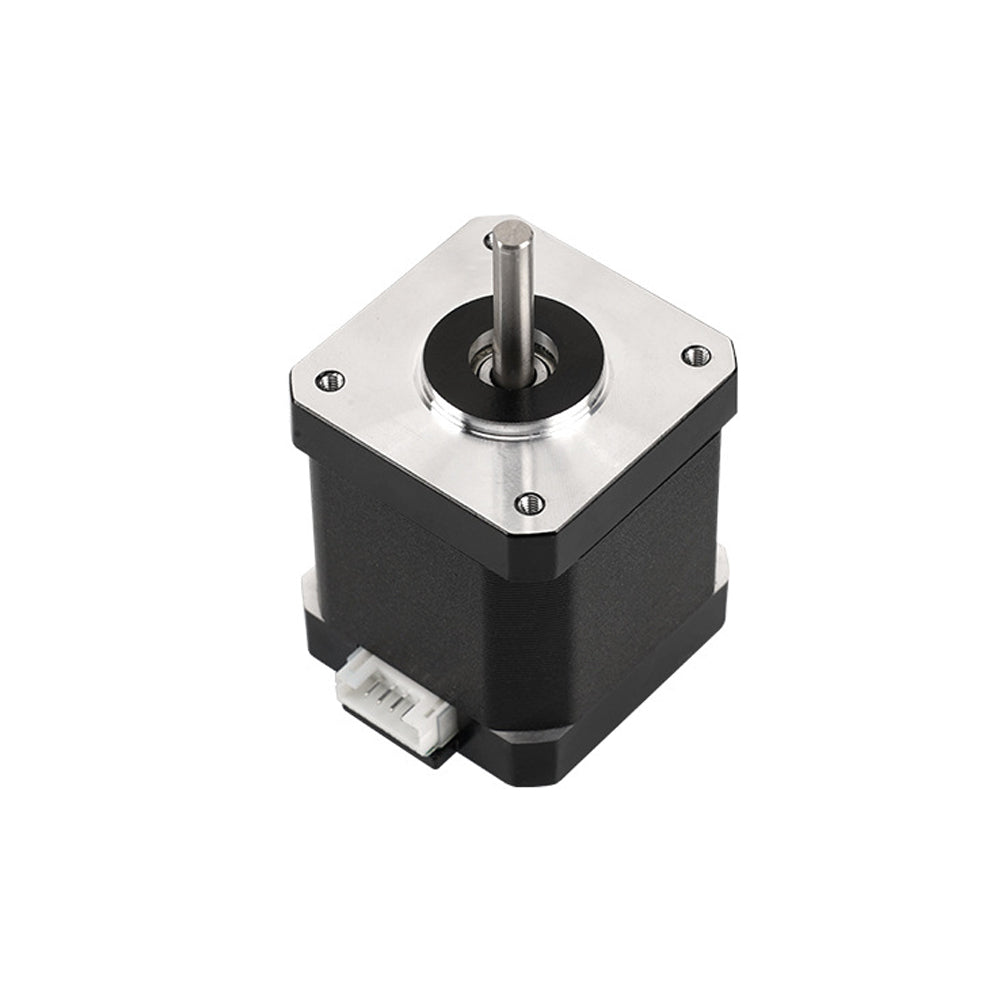

The 3D Printing Perth - Cirrus Link 42 Stepper Motor, featuring a 48mm height and 1.8-degree step angle with a silver finish and cable, is displayed against a pristine white background.

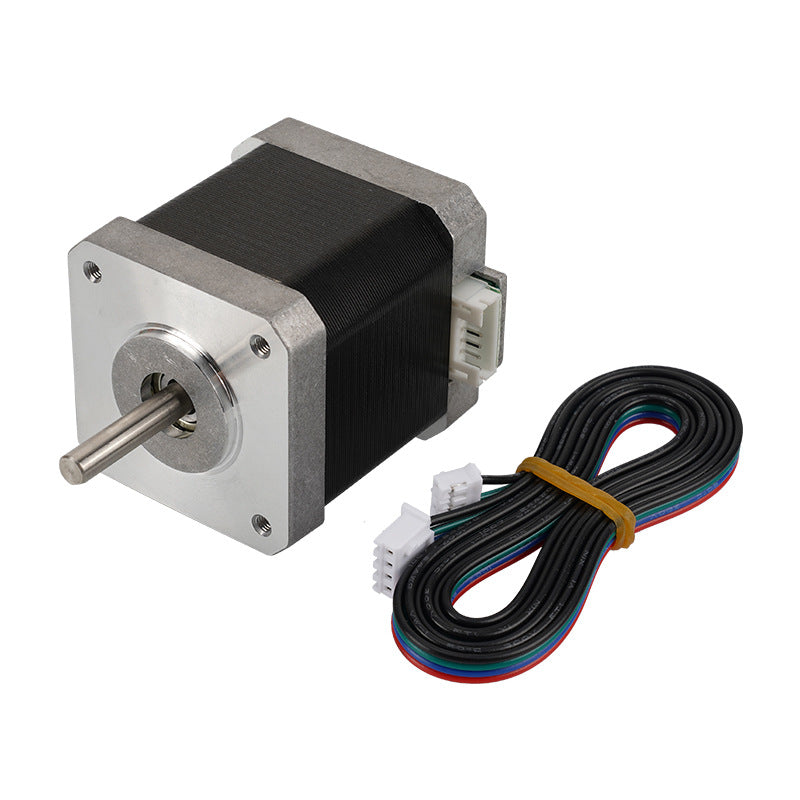

The 42 Stepper Motor by 3D Printing Perth - Cirrus Link features a 48mm height and 1.8-degree step angle in silver, with a protruding shaft and connector at the base, perfect for 3D printing projects.

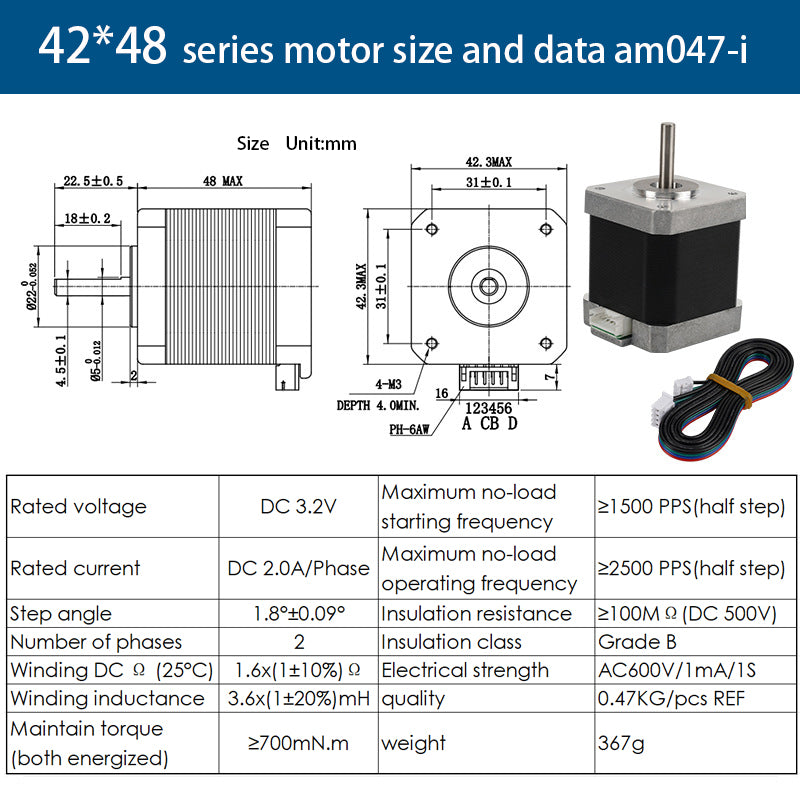

Check out the technical diagram for the high-performance 42 Stepper Motor, 48mm height, 1.8° step angle, by 3D Printing Perth - Cirrus Link. It's ideal for 3D printing and includes dimensions, wiring diagrams, and specs like voltage, current, resistance, and torque.

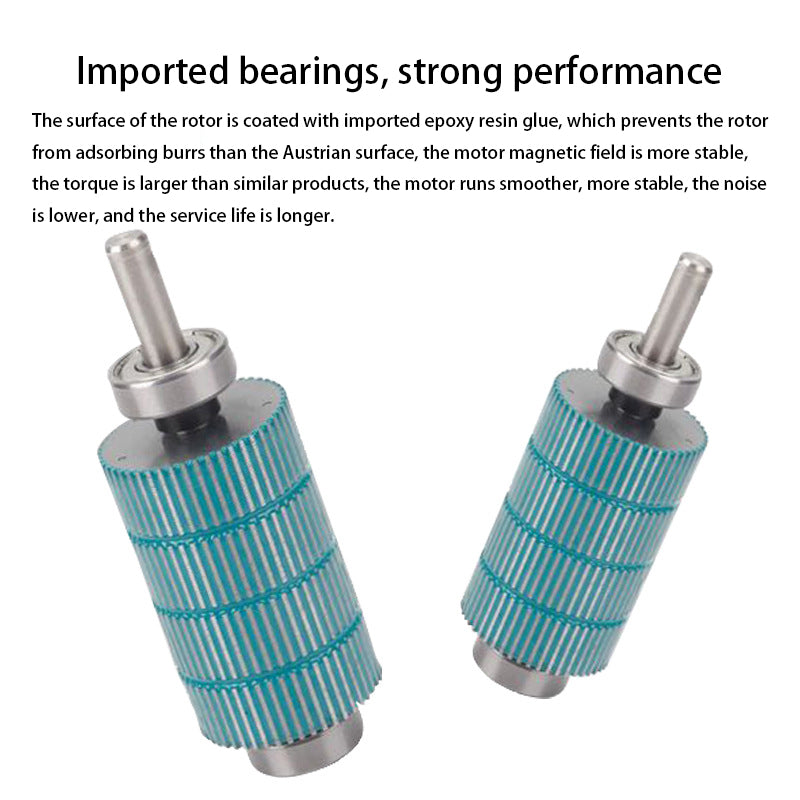

Two silver cylindrical 42 stepper motors from 3D Printing Perth - Cirrus Link, each with a height of 48mm and a 1.8-degree step angle, are described as having imported bearings and strong performance, making them ideal for 3D printing. They feature an epoxy resin coating and improved stability.

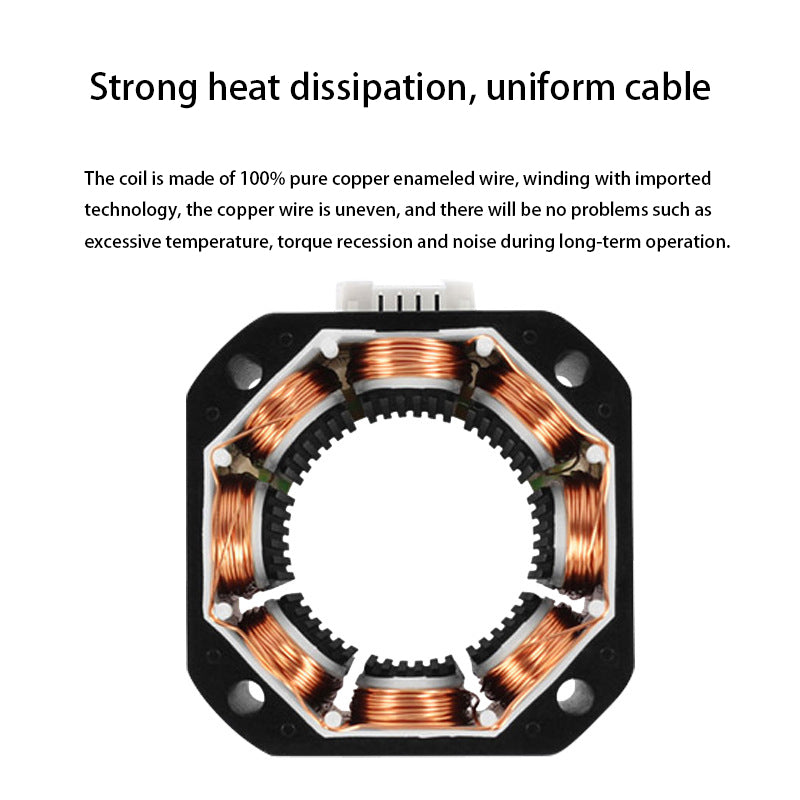

A black-framed copper coil labeled "Strong heat dissipation, uniform cable" emphasizes the 100% pure copper enameled wire's advantages, reducing noise and temperature for high-performance in 3D Printing Perth - Cirrus Link's 42 Stepper Motor, ideal for 48mm height applications.
The 3D Printing Perth - Cirrus Link 42 Stepper Motor, featuring a 48mm height and 1.8-degree step angle with a silver finish and cable, is displayed against a pristine white background.
The 42 Stepper Motor by 3D Printing Perth - Cirrus Link features a 48mm height and 1.8-degree step angle in silver, with a protruding shaft and connector at the base, perfect for 3D printing projects.
Check out the technical diagram for the high-performance 42 Stepper Motor, 48mm height, 1.8° step angle, by 3D Printing Perth - Cirrus Link. It's ideal for 3D printing and includes dimensions, wiring diagrams, and specs like voltage, current, resistance, and torque.
Two silver cylindrical 42 stepper motors from 3D Printing Perth - Cirrus Link, each with a height of 48mm and a 1.8-degree step angle, are described as having imported bearings and strong performance, making them ideal for 3D printing. They feature an epoxy resin coating and improved stability.
A black-framed copper coil labeled "Strong heat dissipation, uniform cable" emphasizes the 100% pure copper enameled wire's advantages, reducing noise and temperature for high-performance in 3D Printing Perth - Cirrus Link's 42 Stepper Motor, ideal for 48mm height applications.

3D Printing Perth - Cirrus Link

42 Stepper Motor 48mm Height 1.8 Degree Step Angle Silver with cable

$36.99
Tax included. Shipping calculated at checkout.

Pickup available at Dog Swamp Shopping Centre

Usually ready in 24 hours

42 Stepper Motor - Precision and Power for Your 3D Printing Needs

Unlock the true potential of your 3D printer with our high-performance 42 stepper motor. Measuring at an ideal size of 42mm x 42mm x 48mm, this motor is designed to fit seamlessly into a variety of 3D printing setups. With a sleek silver edge finish and integrated cable, it not only delivers exceptional performance but also enhances the aesthetic of your printing machine.

Key Features

  • Rated Voltage: DC 3.2V - Optimized for efficient power use!
  • Rated Current: DC 2.0A/phase - Delivers consistent performance across varying workloads.
  • Step Angle: 1.8° ± 0.09° - Achieve precise positioning every time!
  • Number of Phases: 2 - Ensures a balanced and reliable operation.
  • Winding DC Resistance: 1.6x (1±10%) Ω - Guarantees minimal power loss.
  • Winding Inductance: 3.6x (1±20%) mH - Perfectly tuned for responsiveness.
  • Holding Torque: ≥700 mN.m - Outperforms competing models with its impressive torque.
  • Maximum No-load Starting Frequency: ≥1500 PPS (half step) - Quick response for dynamic applications.
  • Maximum No-load Operating Frequency: ≥2500 PPS (half step) - Smooth and steady performance.
  • Insulation Resistance: ≥100MΩ (DC 500V) - Ensures longevity and reliability.
  • Insulation Class: Class B - Built to withstand a variety of operational conditions.
  • Electrical Strength: AC600V/1mA/1S - Highly durable for rigorous use.

Applications

This 42 stepper motor is a versatile component perfect for various applications, including:

  • 3D Printers
  • CNC Machines
  • Robotics
  • Automated systems and projects

It is particularly suited for 3D printing environments where precision and control are paramount. Its high holding torque and low starting frequency make it ideal for handling intricate details, ensuring that your prints come out exactly as planned.

Performance Overview

The 42 stepper motor boasts a holding torque of at least 700 mN.m, making it highly capable of managing demanding applications without losing step accuracy. The step angle of 1.8° ensures that you maintain smooth and precise control over the motor's movements, enhancing the overall quality of your 3D prints.

With its maximum no-load starting frequency of over 1500 PPS, this motor provides the quick responsiveness required for printers and CNC equipment. Operating at a frequency of up to 2500 PPS allows for high-speed functionality without compromising precision
