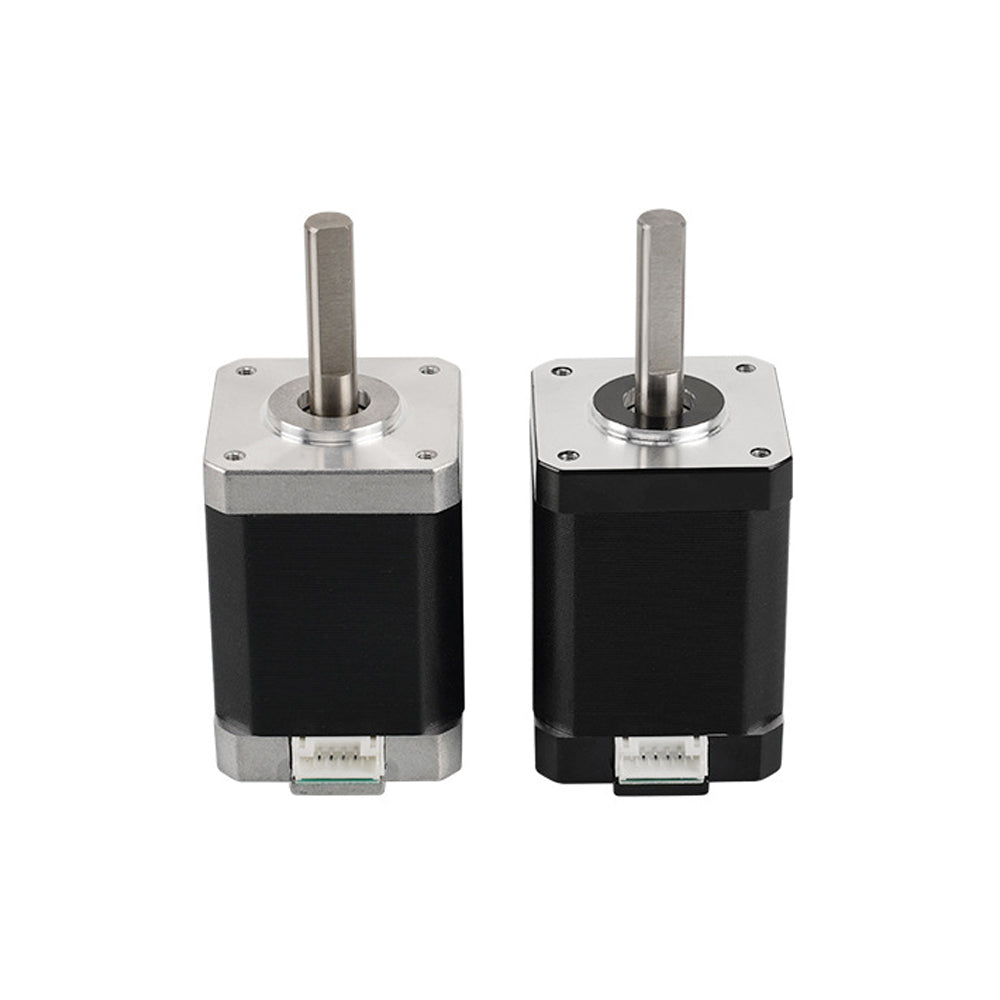

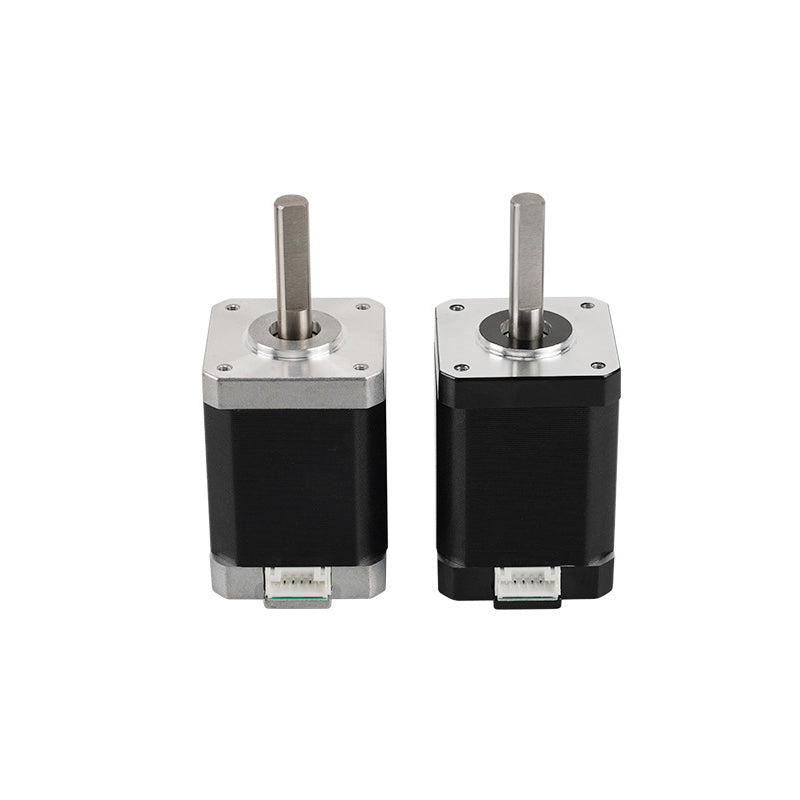

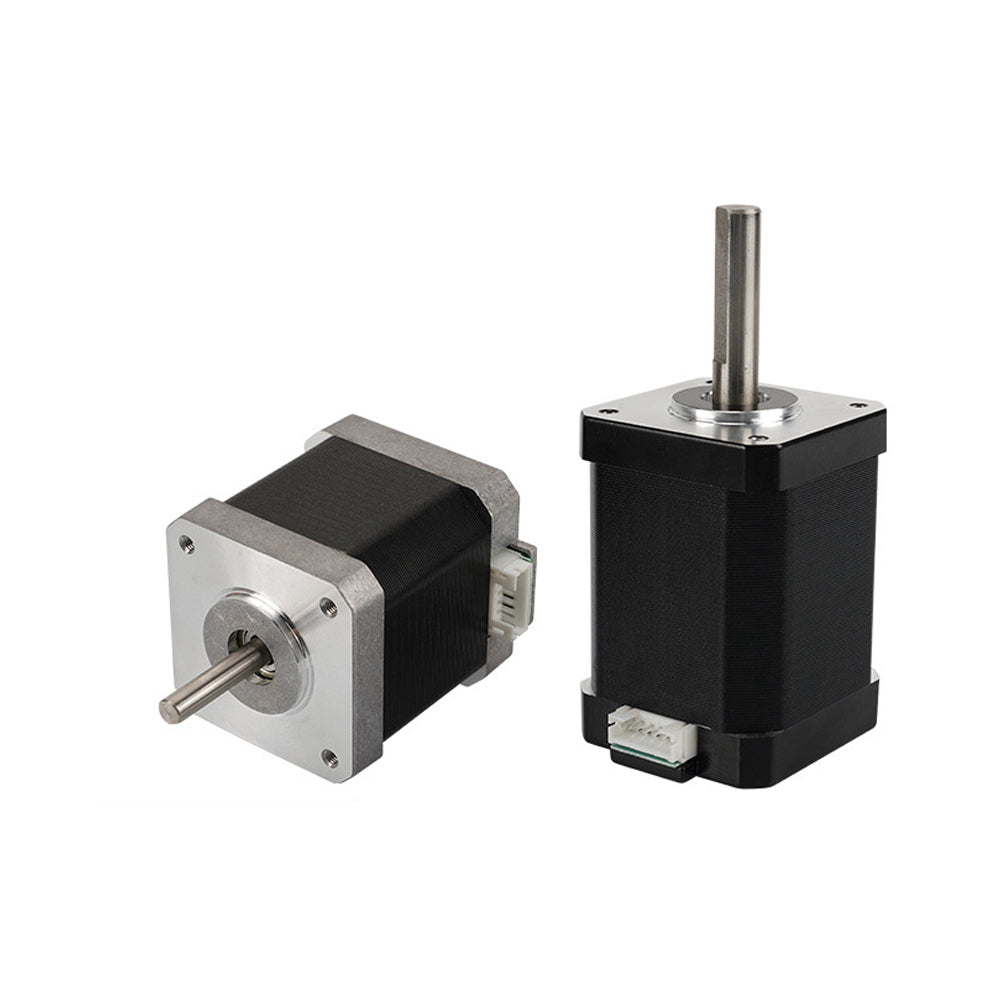

42 Stepper Motor - Precision and Performance for 3D Printing

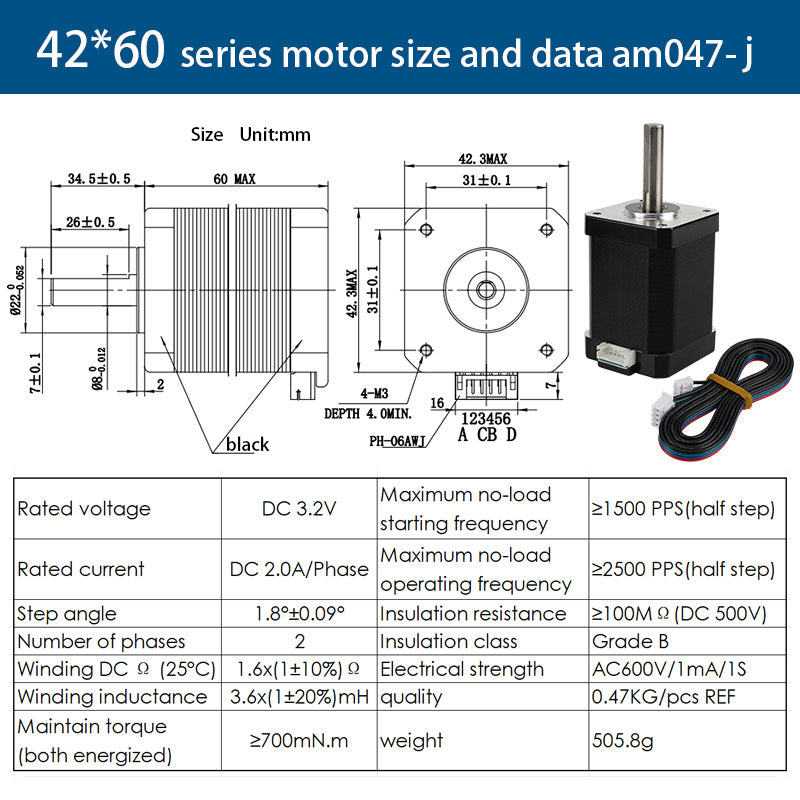

Specifications:

• Dimensions: 42mm x 42mm x 60mm
• Cable: Black edge with cable
• Rated Voltage: DC 3.2V
• Rated Current: DC 2.0A/phase
• Step Angle: 1.8° ± 0.09°
• Number of Phases: 2
• Winding DC Resistance (25°C): 1.6Ω (1±10%)
• Winding Inductance: 3.6 mH (1±20%)
• Holding Torque (Two Phase Energized): ≥700mN.m
• Max No-load Starting Frequency: ≥1500 PPS (Half Step)
• Max No-load Operating Frequency: ≥2500 PPS (Half Step)
• Insulation Resistance: ≥100MΩ (DC 500V)
• Insulation Class: Class B
• Electrical Strength: AC 600V/1mA/1S

Overview

The 42 Stepper Motor is meticulously designed for high-performance applications, particularly in the realm of 3D printing. Its compact dimensions of 42mm x 42mm x 60mm make it an ideal fit for various 3D printer designs. With precise control over rotation, this stepper motor is engineered to deliver increased accuracy and repeatability in your print operations.

Key Features

• High Torque: With a holding torque of ≥700mN.m when both phases are energized, this motor provides the strength necessary for reliable operation, ensuring your printer can handle a variety of materials and print complexities.
• Fast Performance: Capable of achieving a maximum no-load operating frequency of ≥2500 PPS (half step), the 42 Stepper Motor enables fast and efficient motion control, minimizing print times without sacrificing quality.
• Durability and Reliability: Built with high-quality materials and a robust design, the insulation resistance of ≥100MΩ (DC 500V) and Class B insulation guarantees enduring performance even in demanding environments.
• Simplicity of Integration: The black edge cable makes installation and integration into your existing systems a straightforward task, ensuring compatibility and ease for both beginners and experienced users.

Applications

The 42 Stepper Motor is ideal for various applications beyond 3D printing. Its precise step angle of 1.8° ± 0.09° makes it suitable for CNC machines,
