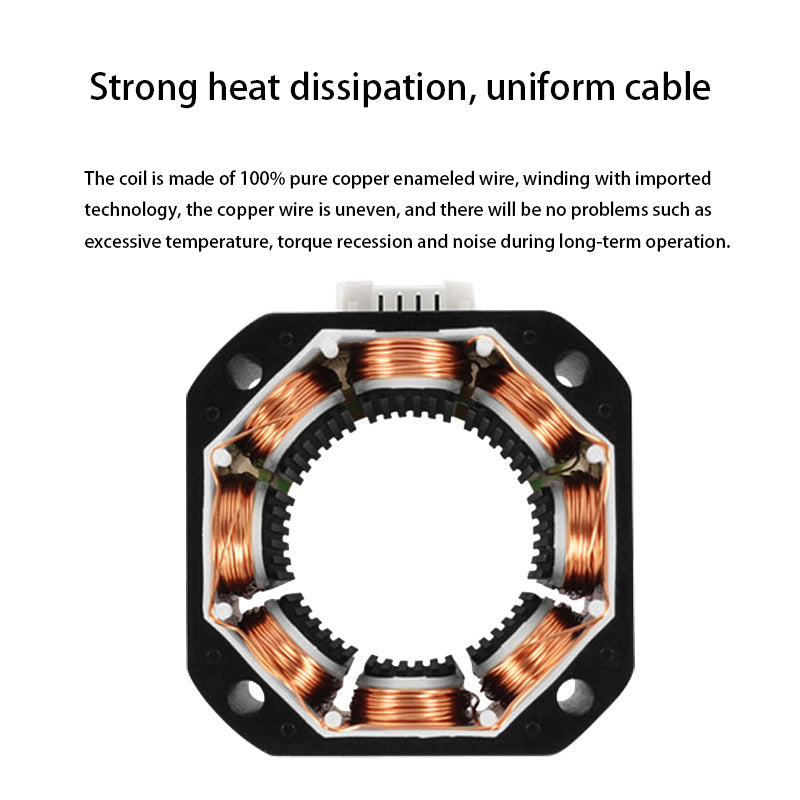

  • Image of the black 42 Stepper Motor from 3D Printing Perth - Cirrus Link, featuring copper winding and octagonal design. It boasts excellent heat dissipation, uniform cable design, and high durability against temperature and noise, making it perfect for precise movements in 3D printers.
$36.99
$36.99
Tax included. Shipping calculated at checkout.

High-Performance 42 Stepper Motor for 3D Printers

Enhance your 3D printing experience with our premium 42 Stepper Motor, specifically designed to provide precise movement and reliable performance in a range of applications. The compact and durable design of this stepper motor ensures it can easily fit into most 3D printer configurations while delivering optimal torque and efficiency.

Specifications:

  • Model: 42 Stepper Motor
  • Dimensions: 42mm x 42mm x 48mm
  • Color: Black Edge with Cable
  • Rated Voltage: DC 3.2V
  • Rated Current: DC 2.0A/phase
  • Step Angle: 1.8° ± 0.09°
  • Number of Phases: 2
  • Winding DC Resistance (25°C): 1.6 x (1 ± 10%) Ω
  • Winding Inductance: 3.6 x (1 ± 20%) mH
  • Holding Torque (two phases energized): ≥ 700 mN·m
  • Maximum No-load Starting Frequency: ≥ 1500 PPS (half step)
  • Maximum No-load Operating Frequency: ≥ 2500 PPS (half step)
  • Insulation Resistance: ≥ 100 MΩ (DC 500V)
  • Insulation Class: Class B
  • Electrical Strength: AC 600V/1mA/1S

Key Features:

This 42 Stepper Motor is engineered with a range of high-end features that distinguish it from standard motors. Below are some of the key attributes that make this motor an excellent choice for your 3D printing needs:

  • Precise Control: The 1.8° step angle of this motor allows for smooth movement and positioning, essential for creating intricate designs with high accuracy.
  • High Torque: With a holding torque of ≥ 700 mN·m when two phases are energized, this stepper motor provides the power needed to handle various materials, ensuring your prints remain stable and accurate.
  • Efficient Performance: Designed to reach a maximum no-load operating frequency of ≥ 2500 pulses per second, this motor is ideal for high-speed printing where every second counts.
  • Robust Design: The compact dimensions (42mm x 42mm x 48mm) make it easy to integrate into various designs while providing ample power to meet demanding applications.
  • Durable Insulation: With an insulation resistance exceeding 100 MΩ and an insulation class of B, you can be assured of its performance in varied operating conditions.

Applications:

The 42 Stepper Motor is not limited to 3D printers; it can also be used in a wide variety of applications, such as:
