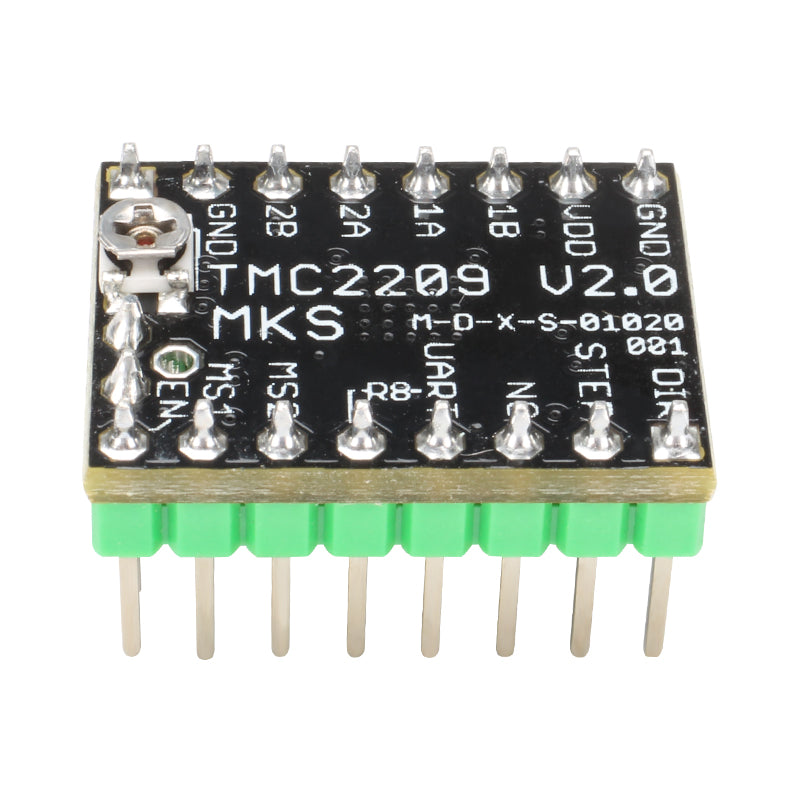

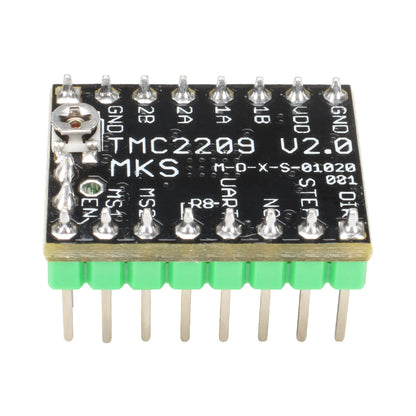

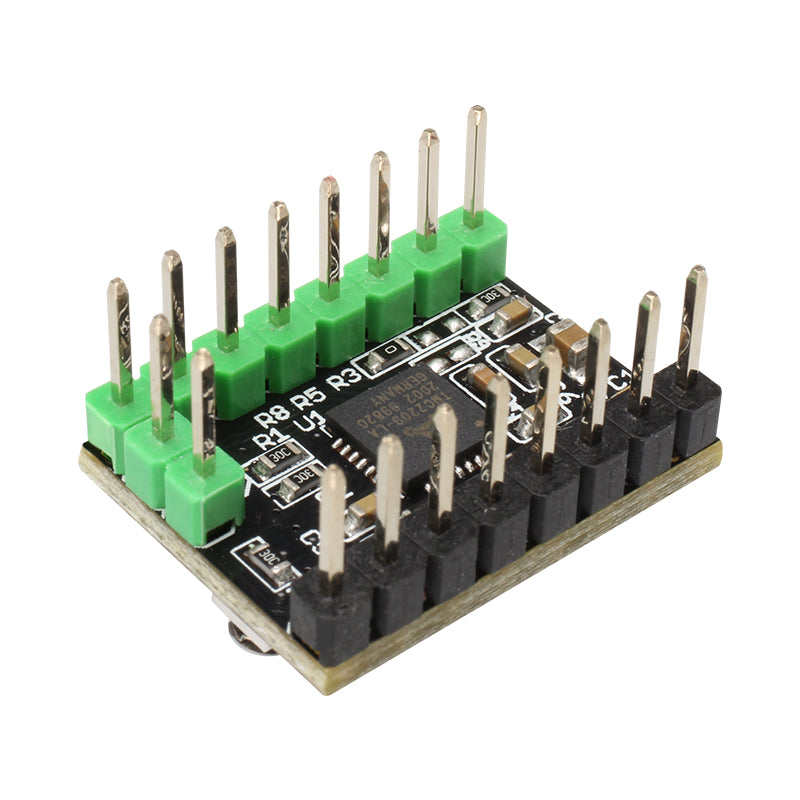

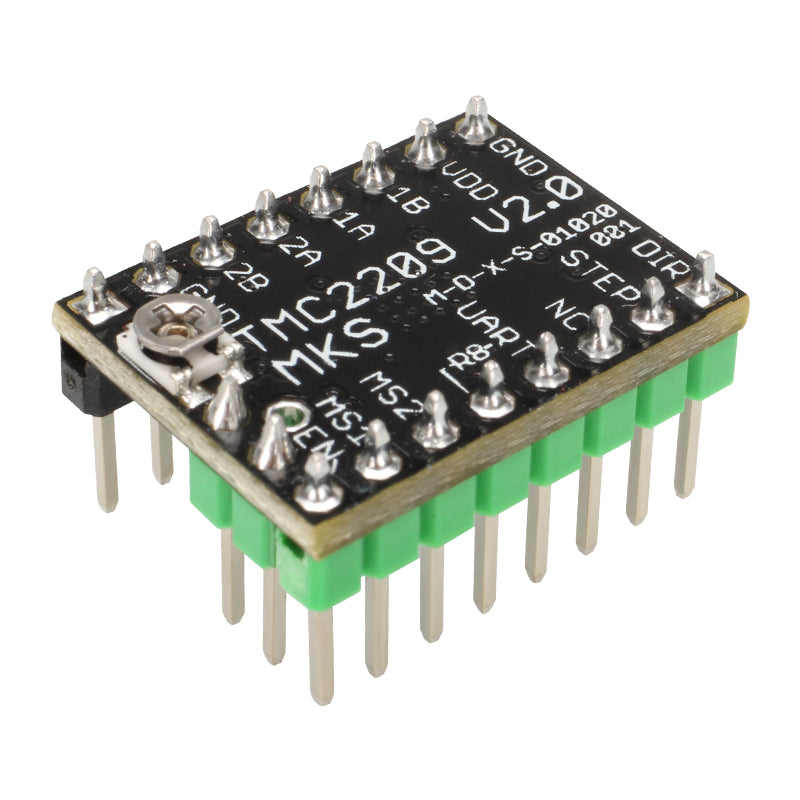

TMC 2209 Stepper Motor Driver for 3D Printers

Unlock the full potential of your 3D printing experience with the TMC 2209 Stepper Motor Driver, a state-of-the-art component specifically designed for high-performance and ultra-quiet operation. Perfect for hobbyists and professionals alike, this advanced motor driver is engineered to provide an exceptional balance between power and precision, ensuring seamless movement and control in all your 3D printing applications.

Key Features

• Ultra-Quiet Operation: Experience near-silent operation thanks to the advanced StealthChop™ technology. Enjoy a quieter workspace without sacrificing performance, making it ideal for home and office environments.
• High Current Capacity: Rated for currents up to 2.0A per phase with excellent thermal performance, the TMC 2209 ensures robust and reliable performance in high-demand applications.
• Unlimited Return to Zero: Powered by the revolutionary Open Loop Control, users can achieve precise positioning and rapid recovery in the event of a hiccup or loss of step, enhancing overall print quality and minimizing errors.
• Microstepping Precision: With customizable microstepping options, the TMC 2209 provides smooth and precise motor control, improving print quality and enabling intricate designs.
• Easy Integration: Designed with compatibility in mind, the TMC 2209 works seamlessly with most 3D printers, making it a versatile choice for upgrading your existing setup.
• Robust Protection Features: Built-in over-temperature and short-circuit protection safeguards against potential damage, ensuring the longevity and reliability of your 3D printer.
• Adjustable Current Settings: Effortlessly tune your motor current using onboard potentiometers or firmware settings, optimizing performance for your specific application.

Specifications

Parameter	Specification
Input Voltage	4.75V - 28V
Maximum Current	2.0A per phase
Microstepping Options	1/16, 1/32, 1/64
Dimensions	20mm x 20mm
Operating Temperature	-40°C to +125°C

Compatibility

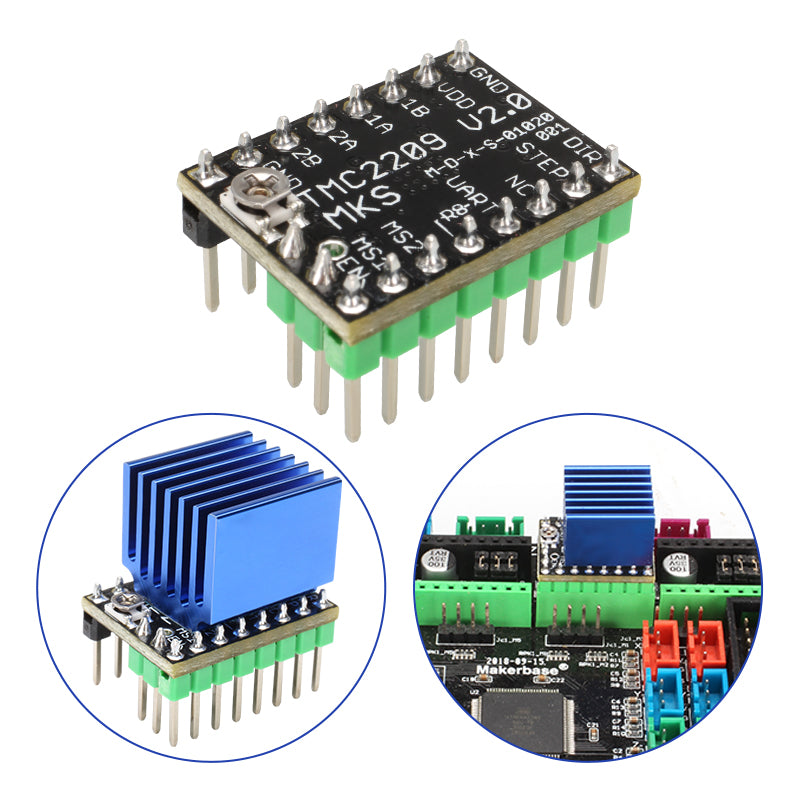

The TMC 2209 is compatible with a variety of 3D printer firmware, including Marlin and others. It works seamlessly with most stepper motors, making it the perfect drop-in upgrade for RepRap, Creality, and other popular 3D printer brands. This driver is designed for the DIY enthusiast who wants to enhance their printing capabilities without worrying about complex configurations.

Why Choose the TMC 2209?

In the world of 3D printing, the quality of your prints is only as good as the components driving your motors. The TMC 2209 Stepper Motor Driver sets itself apart with its unparalleled performance
