Pneumatic Quick Connector JP4-01 Perforated with M10 Thread

$2.19

  • Close-up of a Pneumatic Quick Connector JP4-01 Perforated with M10 Thread by 3D Printing Perth - Cirrus Link, featuring a blue base, against a white background.
  • The 3D Printing Perth - Cirrus Link Pneumatic Quick Connector JP4-01 has an M10 threaded end and features a blue and white ring.
  • The Pneumatic Quick Connector JP4-01 by 3D Printing Perth - Cirrus Link features an M10 thread and a blue plastic ring for efficient pipe or tube connections.
  • Beside a blue plastic clip on a white background, the Pneumatic Quick Connector JP4-01 by 3D Printing Perth - Cirrus Link features a metal M10 thread with a white top, showcasing precision in design.
  • The diagram shows dimensions A, M, H, L, and T for the Pneumatic Quick Connector JP4-01 Perforated with M10 Thread from 3D Printing Perth - Cirrus Link.

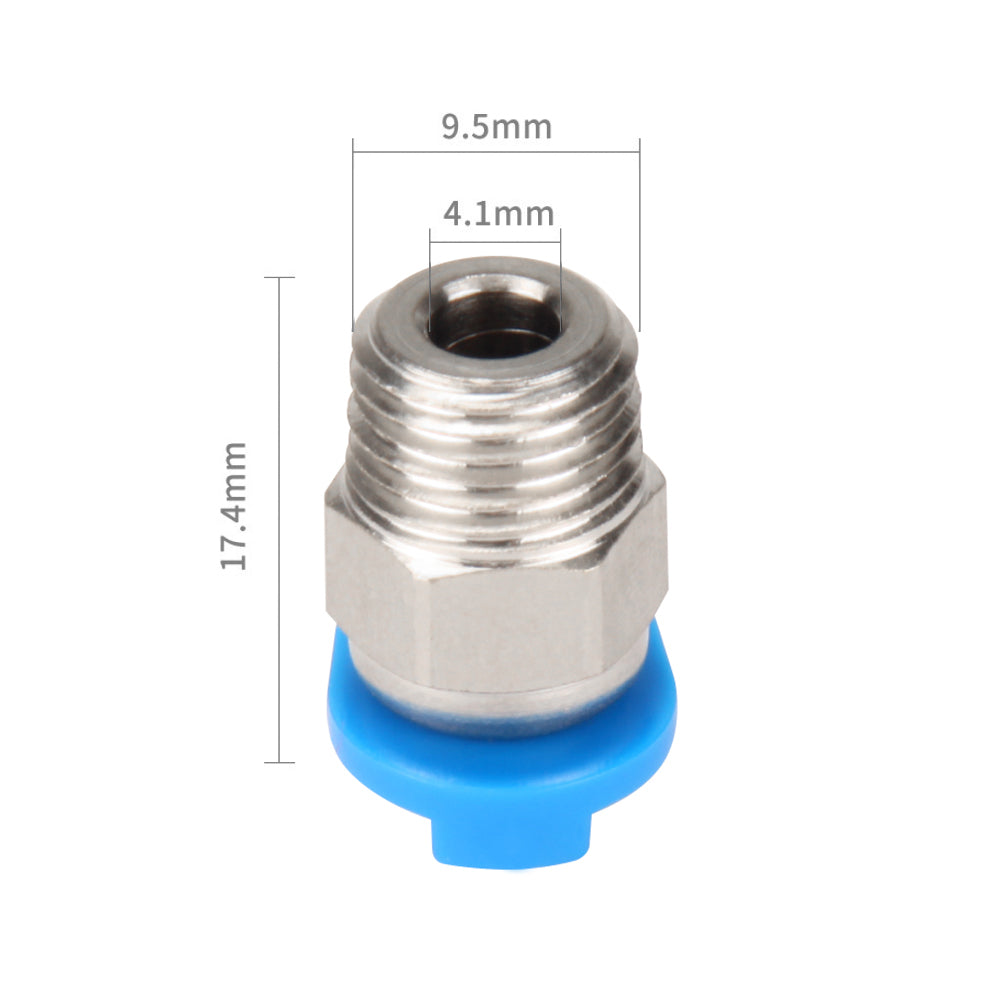

  • The Pneumatic Quick Connector JP4-01 by 3D Printing Perth - Cirrus Link features a blue base, measuring 17.4mm in height, 9.5mm in top width, and a 4.1mm inner diameter with an M10 thread, ensuring efficient system integration.
$2.19
$2.19
Tax included. Shipping calculated at checkout.

Pneumatic Quick Connector - JP4-01 Perforated Pneumatic Connector with M10 Thread (Straight, V6)

Welcome to our premium selection of pneumatic quick connectors, designed for seamless integration within your pneumatic systems. The JP4-01 perforated pneumatic connector offers exemplary performance, reliability, and ease of use, making it an ideal choice for professionals and DIY enthusiasts alike. Discover the key features, specifications, and benefits that make this connector an essential component for your pneumatic applications.

Key Features

  • M10 Thread Compatibility: The JP4-01 features a standard M10 thread that ensures compatibility with a wide range of pneumatic tubes and systems, facilitating easier connections and secure fittings.
  • Straight Design: Its straight configuration allows for efficient installation and enables smooth airflow, minimizing pressure drop across the connection, which enhances the overall system performance.
  • Perforated Structure: The perforated design optimizes airflow while reducing turbulence, ensuring effective operation for both low and high-pressure applications.
  • High-Quality Materials: Manufactured from durable and corrosion-resistant materials, the JP4-01 connector is built to withstand the rigors of demanding work environments. This characteristic guarantees prolonged service life and reliability.
  • Quick Connect/Disconnect Feature: Its innovative quick-connect mechanism allows for hassle-free attachment and detachment, saving valuable time during setup and maintenance. The user-friendly design ensures that you can make adjustments swiftly to enhance productivity.
  • Versatile Applications: This connector is suited for various pneumatic systems, including automation machinery, workshop tools, and industrial equipment, making it a versatile addition to any toolkit.

Specifications

Parameter Details
Model JP4-01
Type Pneumatic Straight Quick Connector
Thread Size M10
Material High-Quality Brass with Coating
Max Working Pressure 1.0 MPa (145 PSI)
Temperature Range -20°C to 80°C (-4°F to 176°F)
Connection Type Straight, Quick Connect

Benefits

Utilizing the JP4-01 Perforated Pneumatic Connector comes with several advantages:

  1. Enhanced Efficiency: By reducing the time spent on connecting and disconnecting pneumatic lines, users can increase their operational efficiency tremendously.
  2. Reduced Downtime: The quick-connect feature minimizes the time needed for repairs and adjustments, assisting in keeping your system running smoothly.
  3. Streamlined Airflow: The specially designed shape and perforations ensure that airflow remains unobstructed, leading to improved performance throughout your pneumatic system.
