Stepper Motor Nema 17 17HS3401 -AC

  • Description
Description

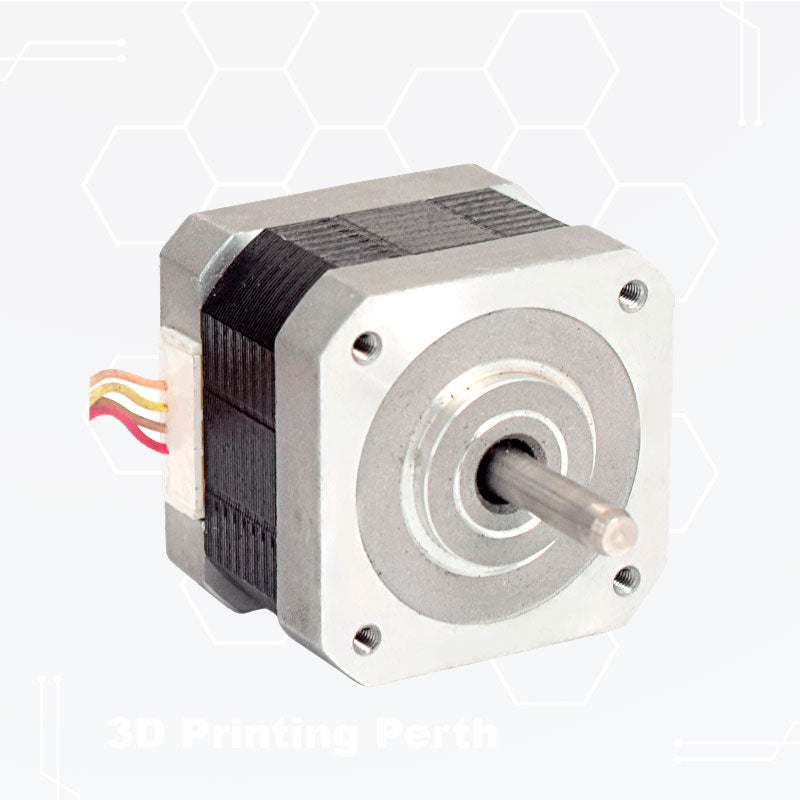

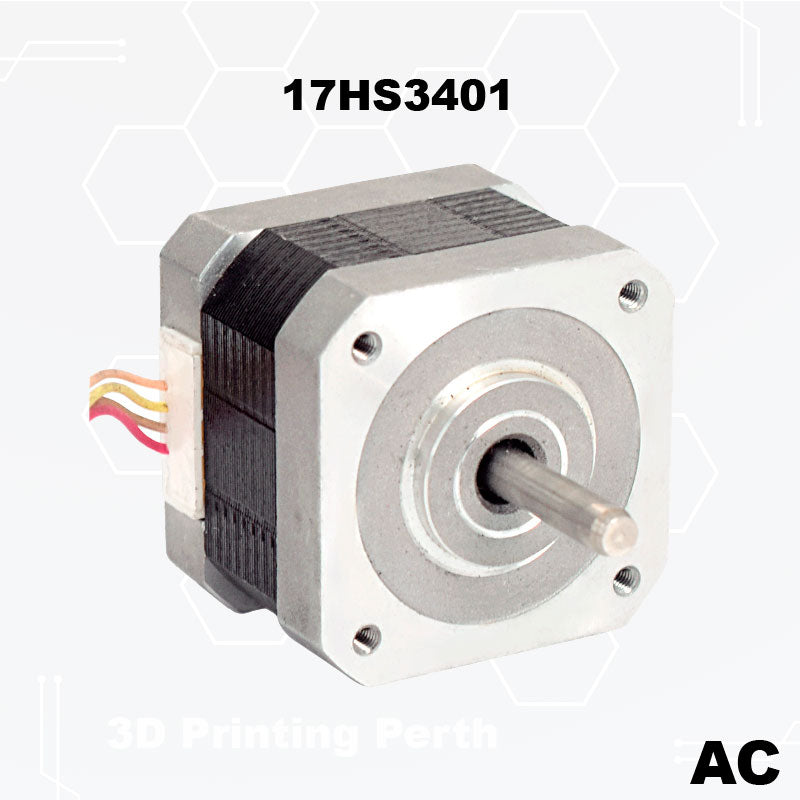

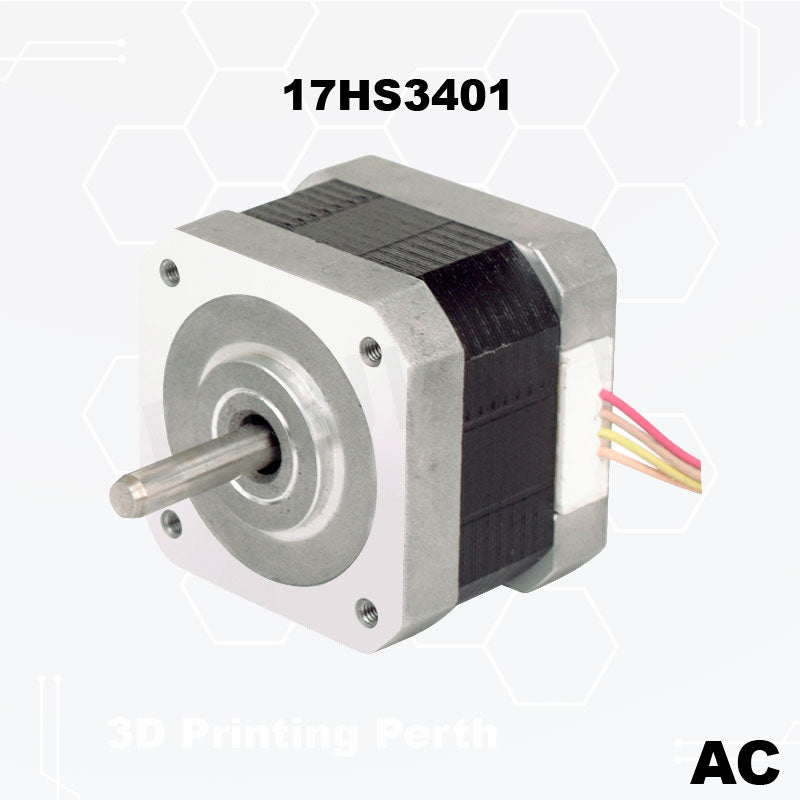

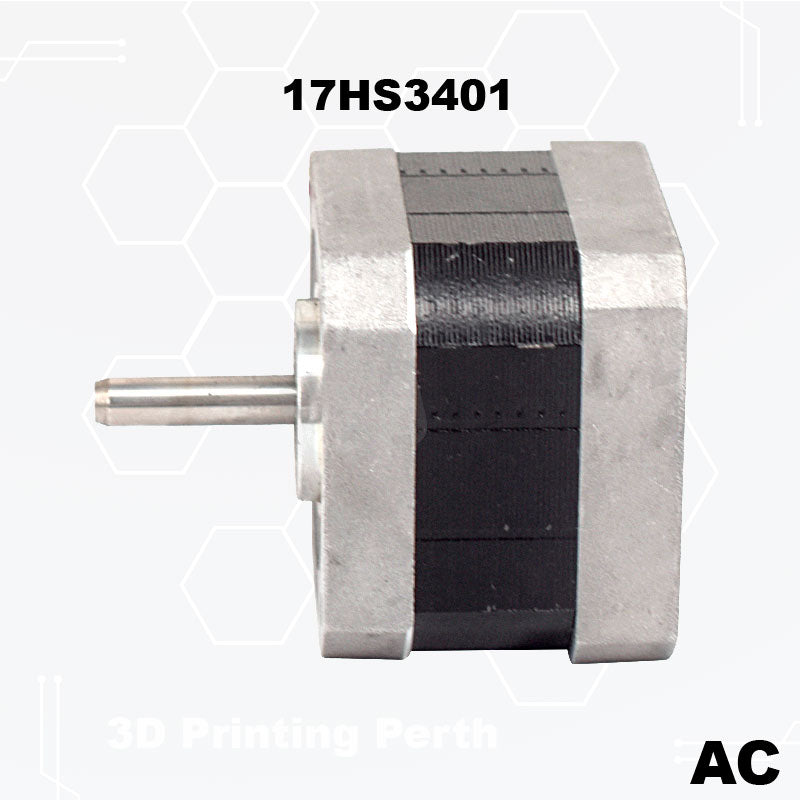

 The 17HS3401 is a 2-phase stepper motor with a 1.8 degree step angle. It has a motor length of 34 mm, a rated current of 1.3 A, and a phase resistance of 2.4 Ohms. The phase inductance is 2.8 mH, and the holding torque is 28 N.cm. The detent torque is 1.6 N.cm, and the rotor inertia is 34 g.cm2. The lead wire is 4, and the motor weight is 220 g.



Product Description:
Model: 17HS3401
Phase: 2
Step Angle (deg): 1.8
Motor Length (mm): 34
Rated Current (A): 1.3
Phase Resistance (Ohm): 2.4
Phase Inductance (mH): 2.8
Holding Torque (N.cm): 28
Detent Torque (N.cm): 1.6
Rotor Inertia (g.cm2): 34
Lead Wire (No): 4
Motor Weight (g): 220

Motor Frame Size: 43*34mm
Shaft: «D» 21mm length 5mm diameter
Outlet way: Plug line

Step angle accuracy: + – 5% (full step, not load)
Resistance accuracy: + – 10%
Inductance accuracy: + – 20%
Temperature rise: 80deg Max (rated current, 2 phase on)
Ambient temperature: 20deg ~ +50deg
Insulation resistance: 100MΩ Min, 500VDC
Insultion Strength: 500VAC for one minute

Pinouts:
Red: A+
Green: A-
Yellow: B+
Blue: B-
