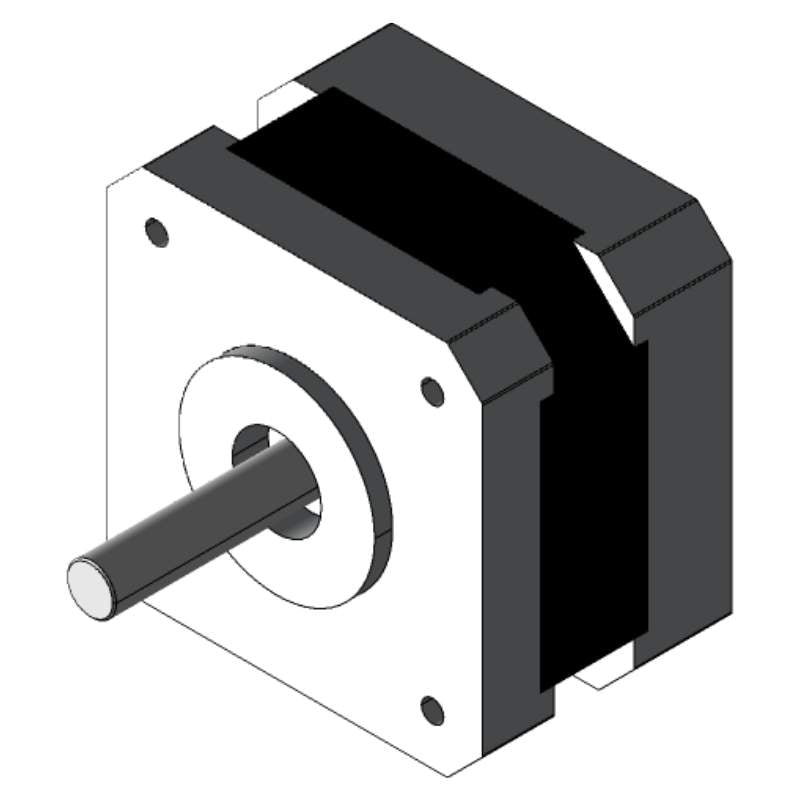

The 17HS2408 is a 2-phase hybrid stepper motor, widely used in various applications including CNC machines, 3D printers, robotics, textile machines, and medical devices. This motor is known for its high step resolution, torque, and holding power, making it well-suited for applications that require precise motion control.
Product Description:
-
Hybrid Stepper Motor: Combines the advantages of a permanent magnet stepper motor and a variable reluctance stepper motor, leading to improved performance and precision.
-
Step Angle and Size: It has a step angle of 1.8 degrees and a size of 28mm, which is ideal for applications that require fine control of motion.
-
Electrical Specifications: The motor operates with a rated current of 0.6A per phase, a phase resistance of 8 ohms, and a phase inductance of 10mH.
-
Physical Specifications: The motor has a body length of 28mm, a shaft diameter of Φ5mm, a shaft length of 24 ± 0.5mm, and a D-cut length of 16.5mm. It weighs 150g and has a holding torque of 12Ncm min / 1.6Ncm max.
