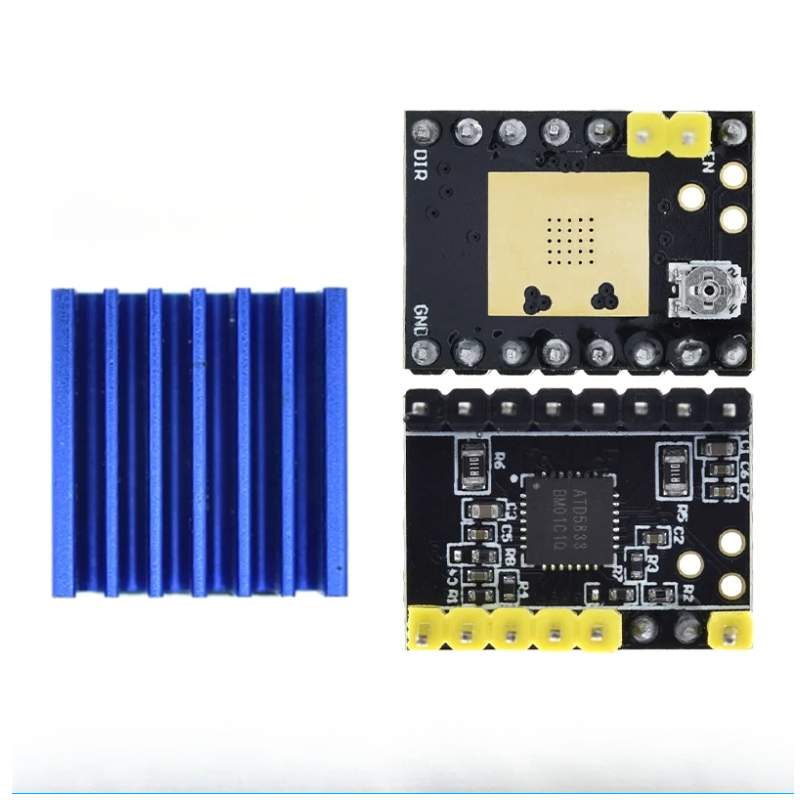

A blue Stepper Motor Driver ATD5833 and a white background.

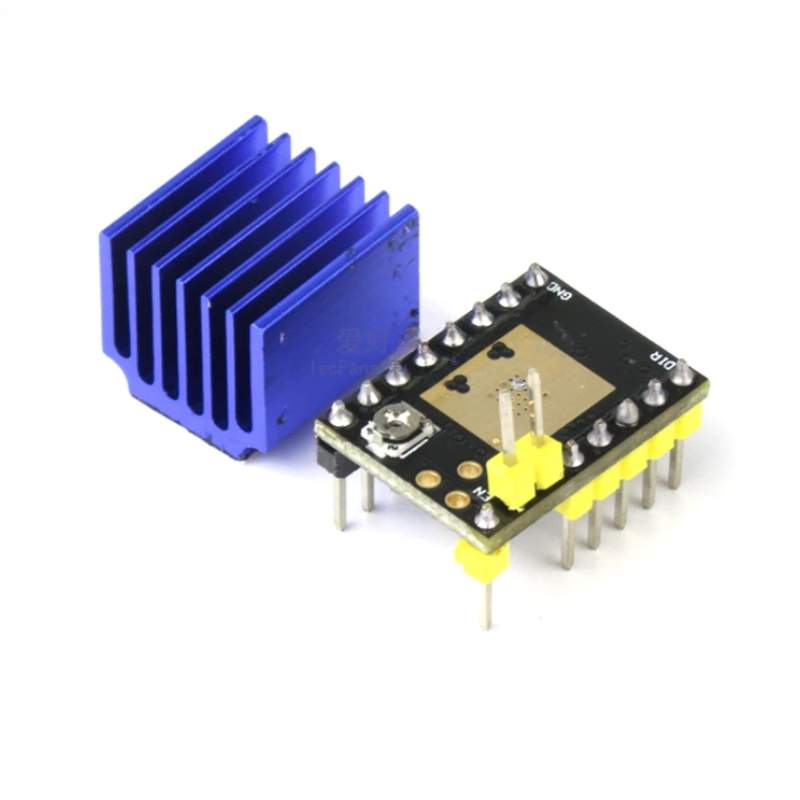

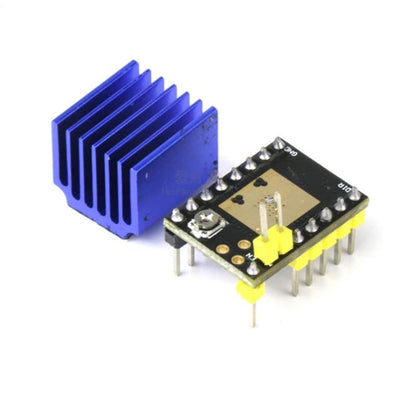

A blue and yellow Stepper Motor Driver ATD5833 from 3D Printing Perth - Cirrus Link with the power supply voltage and circuit operating limit.

Stepper Motor Driver ATD5833

$8.45
  • Description
  • Reviews
Description

Description


Main parameters: circuit operating limit at TA =25°C

Maximum power supply voltage/VM:35V

Output Current: ±2.5A

Logical Input Voltage:-0.3~5.5V

Logical power supply voltage/VCC:-0.3~5.5V

Motor output voltage: -2.0~35V

Current checking voltage:-0.5 to 0.5V

Reference voltage:2.5V

Working environment:-40~85°C(Test Conditions: Range S)

Maximum junction:150℃

Storage temperature:-55~150℃


Main features:

●Two-phase four-wire bipolar stepping motor drive

●Low conduction resistance RDS(ON), 2.5A peak current output

●ATD5833: Simple STEP/DIR interface with maximum support for 256 subdivisions

●Low noise

●Supports mixed current attenuation

●Supports half stream locking

●Support low power standby function

●Compatible with 3.3V and 5V logic level

●Complete protection

●Nine optional step modes
