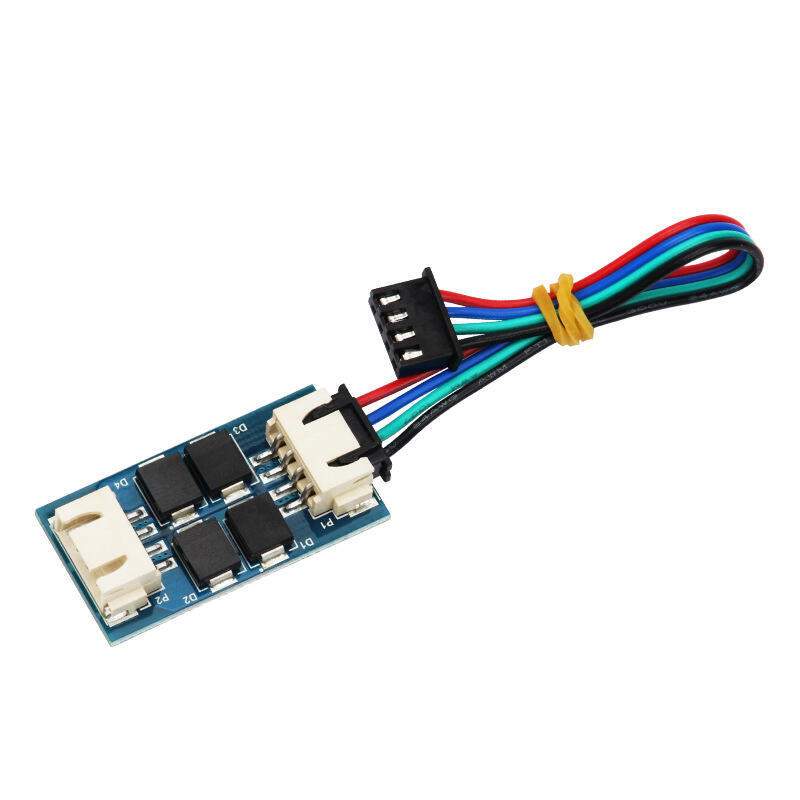

A Cirrus Link - 3D Printing Online Store TL-Smoother V1.1 Addon Module, enhancing the overall printing quality of 3D printer stepper motor drivers, consisting of a small electronic board with wires attached to it.

Related PCB : TL-Smoother V1.1 Addon Module

$7.80
  • Description
  • Reviews
Description

The TL-Smoother V1.1 Addon Module is a device designed for 3D printer stepper motor drivers, aimed at enhancing the overall printing quality by reducing vibration, noise, and achieving smoother printing results. Here are some of the key aspects of the TL-Smoother V1.1 Addon Module:

  1. Functionality: The TL-Smoother addon module is particularly effective in eliminating the mechanical chattering that can occur in 3D printer motors. This is especially beneficial for printers with parallel arm configurations.

  2. Compatibility: It is designed to work seamlessly with various types of stepper motor drivers, such as the DVR8825 and A4988/2 drivers. This makes it a versatile addition to a wide range of 3D printers.

  3. Design Features: The module includes fly-back diodes (freewheeling diodes) for the motor outputs. These diodes are crucial as they protect against induction voltages when the driver is in an unpowered state, thus ensuring the longevity and safe operation of the motor drivers.

  4. Improved Printing Quality: By implementing the TL-Smoother V1.1, users can expect a noticeable improvement in the smoothness of the printer's movement. This leads to a higher quality of the final printed product, particularly in reducing artifacts like salmon skin or rippling effects on the print surface.

  5. Physical Characteristics: The module is typically compact in size, with dimensions and weight that make it easy to integrate into existing 3D printer setups without requiring significant modifications.

  6. Voltage and Current Specifications: It is designed to operate effectively with a voltage range of 12V/24V and can handle current from 1A to 1.5A.

  7. Installation and Use: The TL-Smoother is user-friendly in terms of installation and operation. It is generally plugged in-line with the stepper motor and the driver, requiring minimal configuration for effective use.

In summary, the TL-Smoother V1.1 Addon Module is a practical upgrade for 3D printers, designed to improve print quality by reducing vibration and noise, enhancing motor driver protection, and ensuring smoother operation of the printer. This addon is particularly beneficial for users looking to achieve finer quality prints with reduced surface artifacts.
