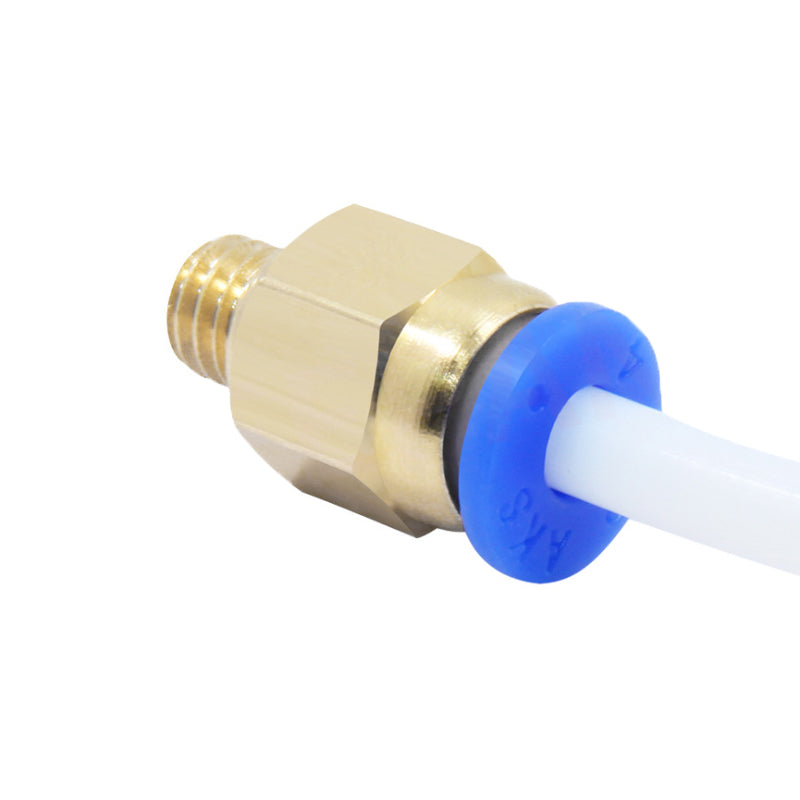

A 3D Printing Perth - Cirrus Link Pneumatic Quick Connector for Teflon Tube, featuring a brass build with a threaded end and a blue plastic push-to-connect fitting, is attached to a white Teflon tube, making it ideal for integration into pneumatic systems.
Four brass fittings from the 3D Printing Perth - Cirrus Link brand, labeled: PC4-01/1.75mm, PC6-01/3mm, PC4-M5/1.75mm, and PC4-M6/1.75mm. Each features blue bases and white threading to ensure secure connections in pneumatic systems using Teflon tubes, specifically designed as Pneumatic Quick Connectors for efficient setup.
Two Pneumatic Quick Connectors for Teflon Tubes from 3D Printing Perth - Cirrus Link, featuring brass construction and blue bases, are positioned next to each other. One connector has an open end and the other a threaded end, both designed to enhance efficiency and provide seamless integration in pneumatic systems.
A technical drawing of component C305, intended for use in integration with pneumatic systems, specifies dimensions as follows: height of 18, width of 10, and internal width of 4.4. It includes annotations regarding the PT1/8 thread size, emphasizing the section labeled "Block" and ensuring compatibility with the Pneumatic Quick Connector For Teflon Tube by 3D Printing Perth - Cirrus Link.
The Pneumatic Quick Connector for Teflon Tube by 3D Printing Perth - Cirrus Link features a brass threaded fitting with a blue push-to-connect end, making it perfect for integration into pneumatic systems.
A 3D Printing Perth - Cirrus Link Pneumatic Quick Connector for Teflon Tube, featuring a brass build with a threaded end and a blue plastic push-to-connect fitting, is attached to a white Teflon tube, making it ideal for integration into pneumatic systems.

3D Printing Perth - Cirrus Link

Pneumatic Quick Connector For Teflon Tube

$2.49
Tax included. Shipping calculated at checkout.
Sizw: PC4-M6 (4mm tube - M6)

Pickup available at Dog Swamp Shopping Centre

Usually ready in 24 hours

Sizw: PC4-M6 (4mm tube - M6)

Pneumatic Quick Connector

The Pneumatic Quick Connector is an essential component in pneumatic systems, designed for ease of use and reliability. This connector is specifically tailored for connecting 4mm or 6mm Teflon tubes, making it an ideal choice for a wide range of applications, including 3D printing, automation, and various industries where pneumatic technologies are utilized.

Key Features

  • Robust Construction: Made from high-quality materials, the Pneumatic Quick Connector is engineered to withstand rigorous conditions and deliver optimum performance in high-pressure environments.
  • Easy Installation: The quick connector design allows for effortless installation and disconnection of tubing without the need for special tools. This feature significantly reduces downtime during maintenance or adjustments.
  • Leak-Free Operation: Featuring precision-engineered seals, the Pneumatic Quick Connector ensures a leak-free connection, thus maintaining the integrity of your pneumatic system and improving overall efficiency.
  • Compact Size: The lightweight and compact design of the Pneumatic Quick Connector helps save space in your setup, making it particularly suitable for intricate 3D printing machinery where every millimeter counts.
  • Compatibility: This connector is compatible with a wide variety of pneumatic systems and 4mm Teflon tubes, enhancing its versatility in diverse applications.
  • Temperature Resistance: The connector is designed to operate effectively across a broad temperature range, ensuring that it can be used in both standard and high-temperature environments without compromising performance.

Product Specifications

Product Name Pneumatic Quick Connector
Type Quick Connector
Tube Size 4mm or 6mm


Material Brass / Plastic
Connection Type Push-to-connect
Operating Pressure 0 to 150 PSI (0 to 10 Bar)
Temperature Range -20°C to 80°C (-4°F to 176°F)

Applications

The Pneumatic Quick Connector quick connector is widely used in various applications, including but not limited to:

  • 3D Printing: Ideal for filament feeding systems and cooling applications in 3D printers.
  • Manufacturing Automation: Used in assembling, handling, and packaging systems requiring quick and reliable pneumatic tubing connections.
  • Robotics: Facilitates air supply in robotic applications, ensuring efficient operation and maneuverability.
  • Medical Equipment: Components in medical devices that require precision pneumatic control for syringes, valves, and other mechanisms.
