Product information for Big Mk8 Brass Nozzle
Model Name: Big MK8 Brass Nozzles

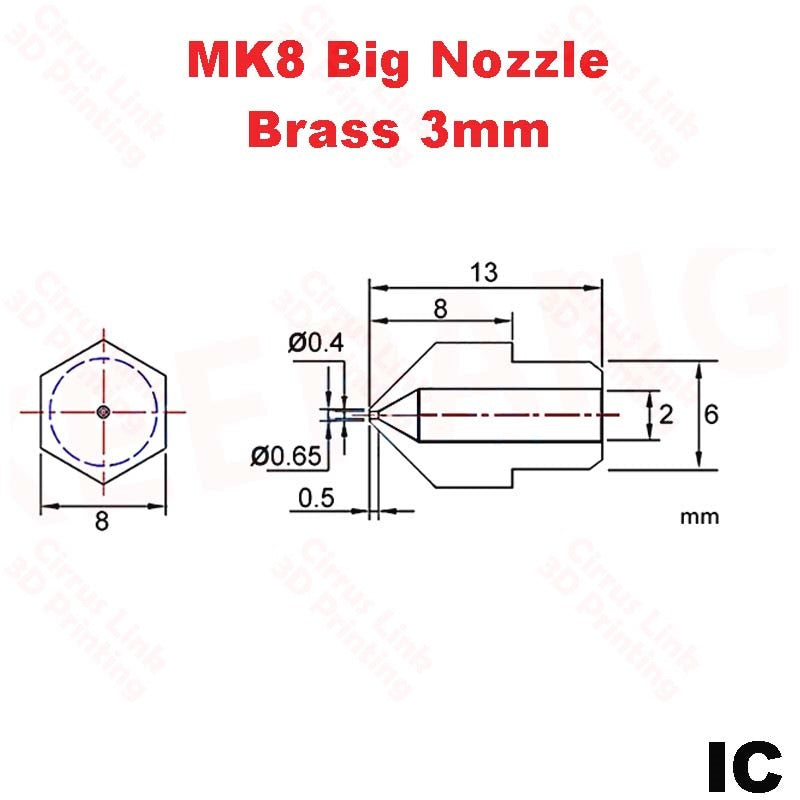

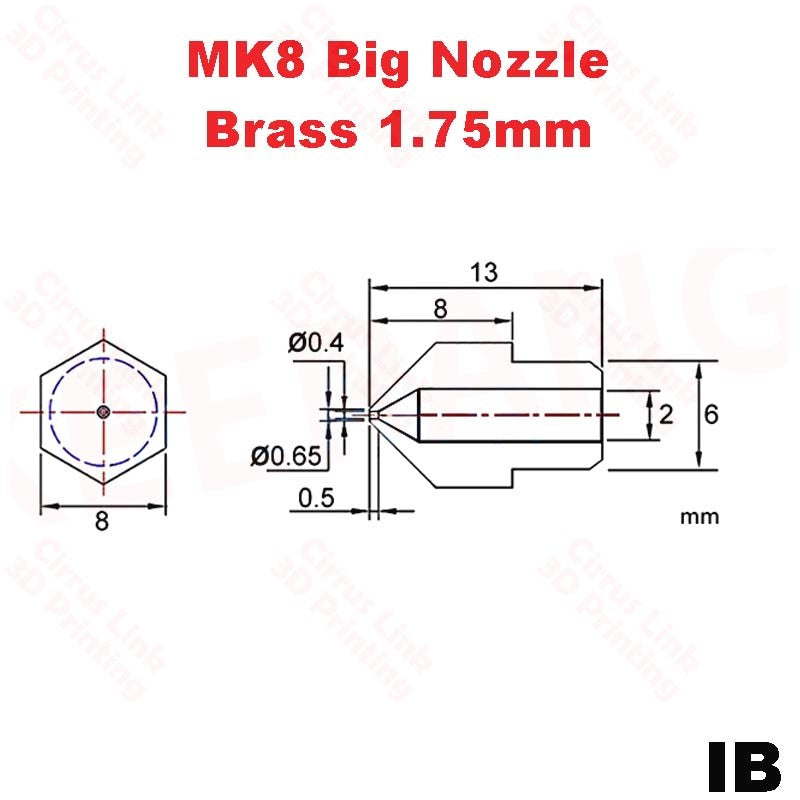

Product Size: 13mm X 8mm
Inner diameter: 2.0mm, 3.2mm
Filament: For 1.75mm,3mm
Nozzle diameter: 0.1mm/0.2mm/0.25mm/0.3mm/0.35mm/0.4mm/0.5mm/0.6mm/0.8mm/1.0mm
Package: 1 nozzle
Description for MK8 Brass Nozzle
A MK8 brass nozzle is a creative tool that can be used for 3D printing. It can be used to extrude molten plastic material, which is heated first to the melt temperature, to layer it on top of previously deposited layers to form objects. 3DPrintingPerth.com is the go-to spot in Australia for all your 3D printing needs!
The filament was smoothly extruded from the nozzle, creating a perfectly even layer. This extruder is made of high-quality brass materials that extrude PLA filament and ABS filament smoothly, with a nozzle diameter of 0.2mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0mm. The filament being extruded can have an even thickness, making it perfect for use in 3D printers.
This MK8 Nozzle is perfect for printing with PLA or ABS. Different 3D printers have different types of brass nozzles, each suited for printing with a specific type of filament. This MK8 brass nozzle heats up to 240 °C and is particularly well-suited for printing PLA and ABS filaments. It has a 0.2mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0mm hole size, making it compatible with MK8 hot ends.
The filament design has a smooth, anti-overflow exterior with M6 threaded fittings. This MK8 Brass Nozzle Extruder Brass 3D Printer Nozzle is one of the most popular nozzle extruders because of its brass construction and smooth exterior that prevents clogging. The M6 threaded nozzle makes installation a breeze. This MK8 brass nozzle is threaded to fit securely onto a 3D printer's heat block. The nozzle's filament anti-overflow design ensures that your print projects won't be interrupted by pesky filament jams.
A smooth surface inside provides a perfect place for inserting filaments. This brass MK8 nozzle is perfect for printing intricate designs thanks to its smooth interior walls. The MK8 is often used with PLA and ABS. The 1.75mm filament size means that it can be inserted into a standard 3D printer nozzle.
The angel corner cut allows for smooth filament movement and low resistance for filament extrusion. The angel-shaped cutouts on the nozzles help the filament to move smoothly and reduce the resistance to extrusion. With its flat surface on top, the nozzle ensures a constant pressure when pushing the filament through the extruder. This results in higher precision prints with much better surface finish, no leaking from the nozzle, and less stringing. Additionally, it has a M6 thread on the top and bottom side of the nozzle, which enables you to change the nozzle without any additional modifications to the printer.

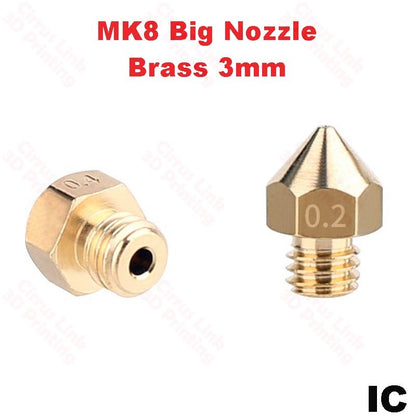

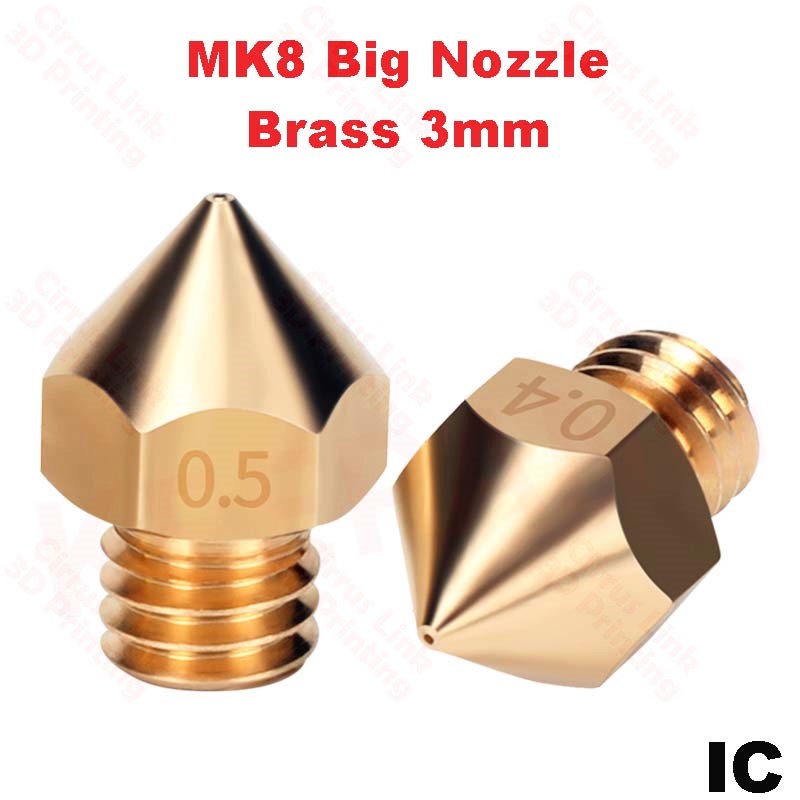

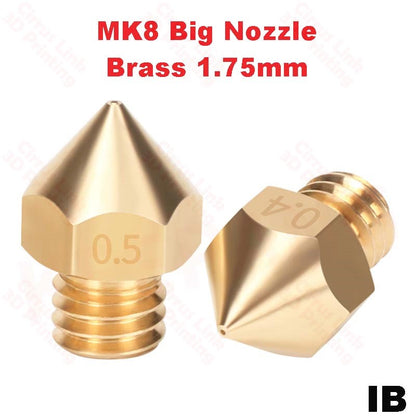

The MK8 Brass nozzle has a size marked on the side. Looking at the side of the MK8 brass nozzle, you can easily find out the different size nozzles - 0.2mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0mm. To use a different sized nozzle, you need to swap the nozzle and/or hobbled bolt for ones that better match the size of filament you're trying to print with.
