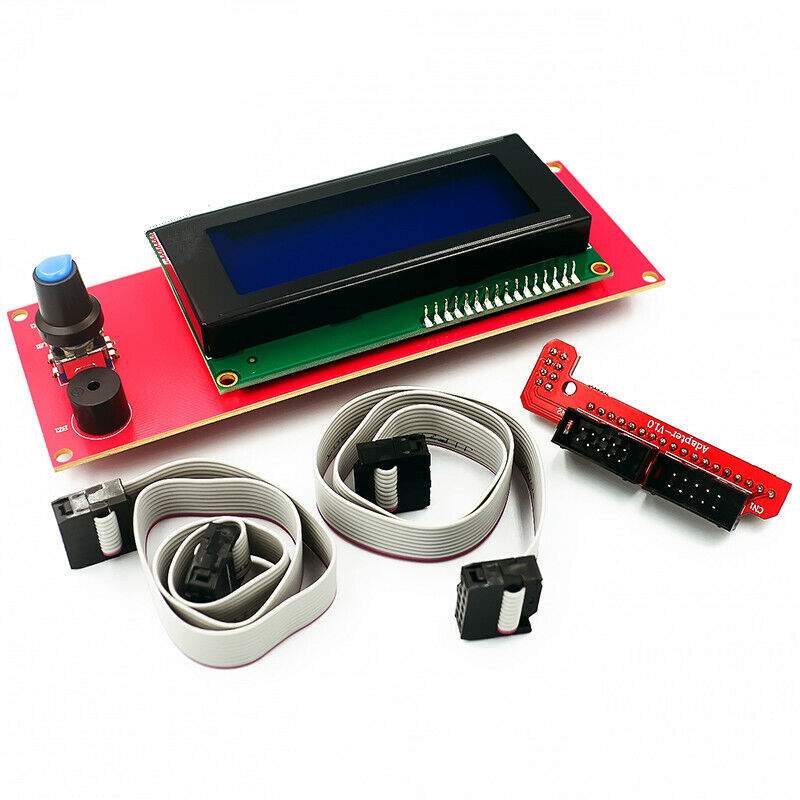

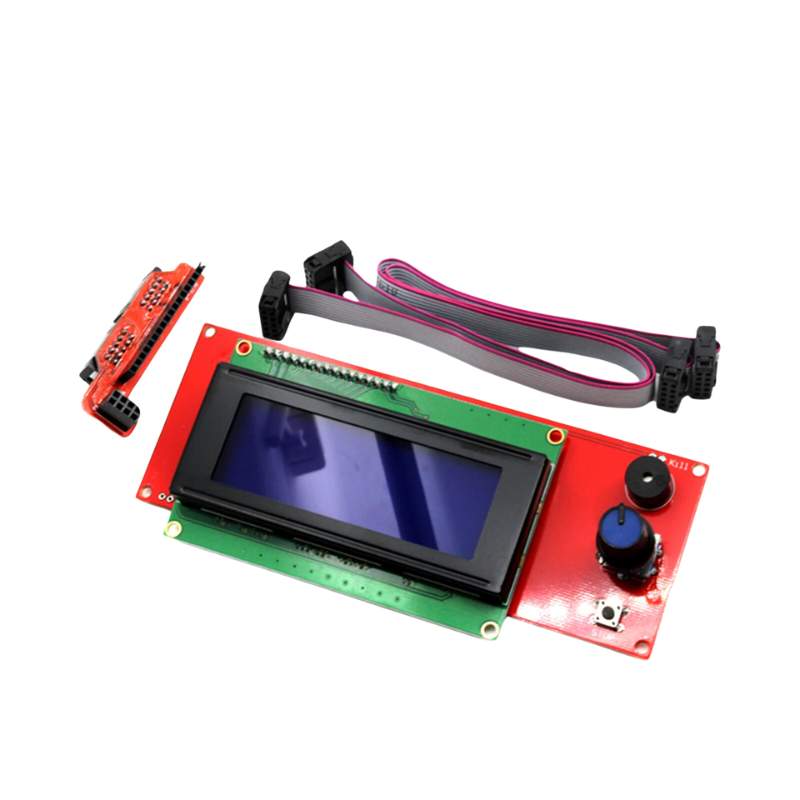

The LCD2004 20x4 I2C Blue LCD Display is a multifunctional and user-friendly display module commonly used in various electronic projects, including microcontroller applications. The LCD2004 2004ABA V1.3 with a dial button and SD card reader is a versatile and functional display module designed for use in various electronics projects, including 3D printers. Here's an overview of its key features and specifications:
Display Layout: The LCD2004 module features a 20 character by 4 line display, providing ample space for displaying text and simple graphics. Each character is constructed from a 5x8 dot matrix, ensuring clear character representation.
Backlight and Visibility: It comes with a blue backlight and white characters, enhancing visibility and readability. The backlight's contrast can be adjusted via a potentiometer, allowing for optimal viewing in different lighting conditions.
Interface and Connectivity: This display incorporates an I2C interface, which simplifies the connection to a microcontroller as it only requires two pins (SDA and SCL) for operation. This feature makes it particularly efficient and resource-saving for projects where pin availability is limited.
Power Requirements: The module operates at 5V and includes a header for easy connection to power sources and data lines. Its backlight can operate down to about 3V before it goes out, with a typical current draw of about 30mA at 5V.
Physical Dimensions: The overall size of the PCB is 99 x 60mm (approximately 3.9" x 2.36"), with a display bezel of 97 x 40mm (approximately 3.82" x 1.58").
