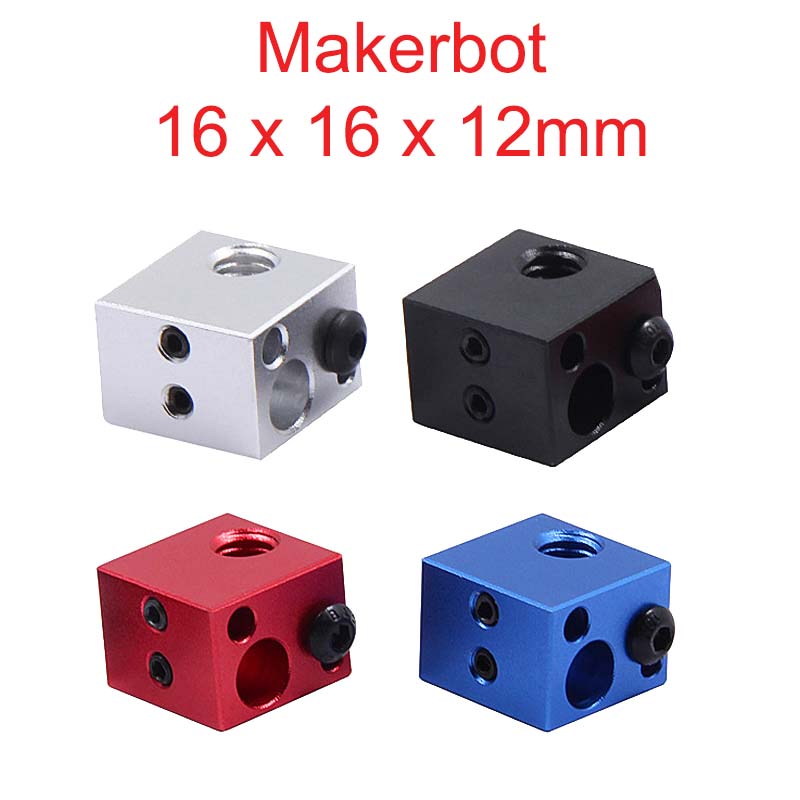

Heating Block for Makerbot (16X16X12) mm

  • Sale
  • Regular price $3.50
Tax included.





E3D V6 3D Printing heat block is a new innovative design which features a finned top and bottom to improve surface area for improved cooling. E3D V6 3D Printing heat block is made of molded steel with an aluminum plate for more even heating and quick transfer of heat up and down the full length of the block. The fins and large surface area help to keep the heat on the block more consistently and provide superior thermal performance.



Specification

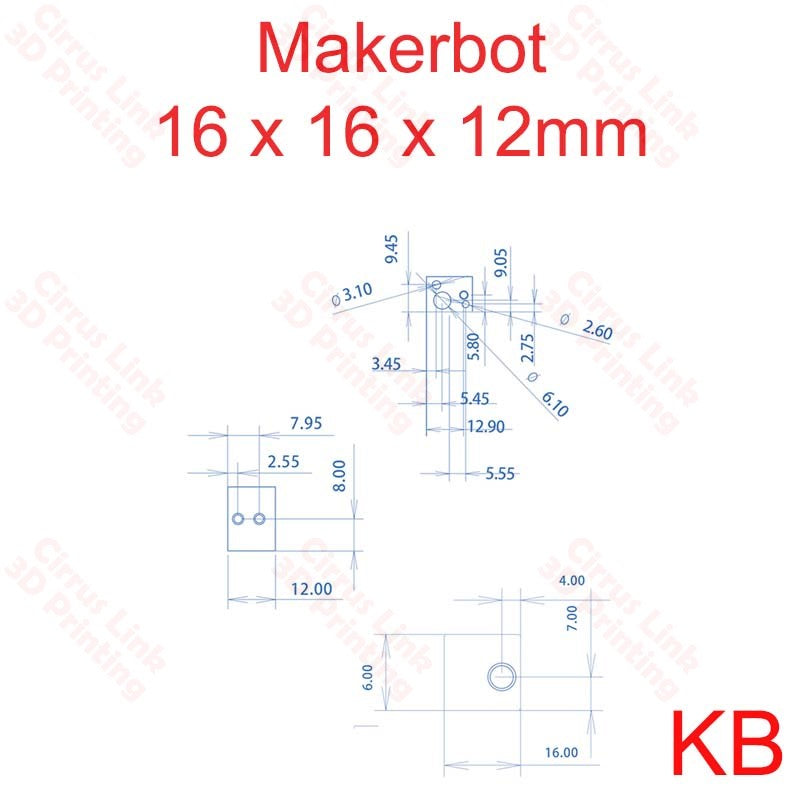

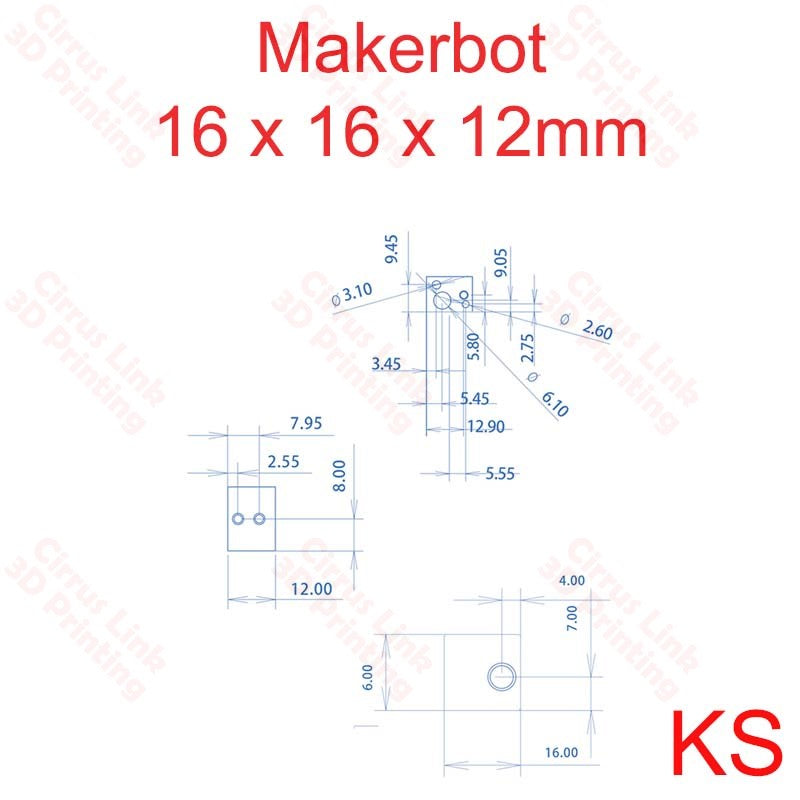

Size: 20mm (Width) X 16mm (Long) X12mm (Height)

Material: Aluminum

Supported Heat Cartridge: M6 X 15mm

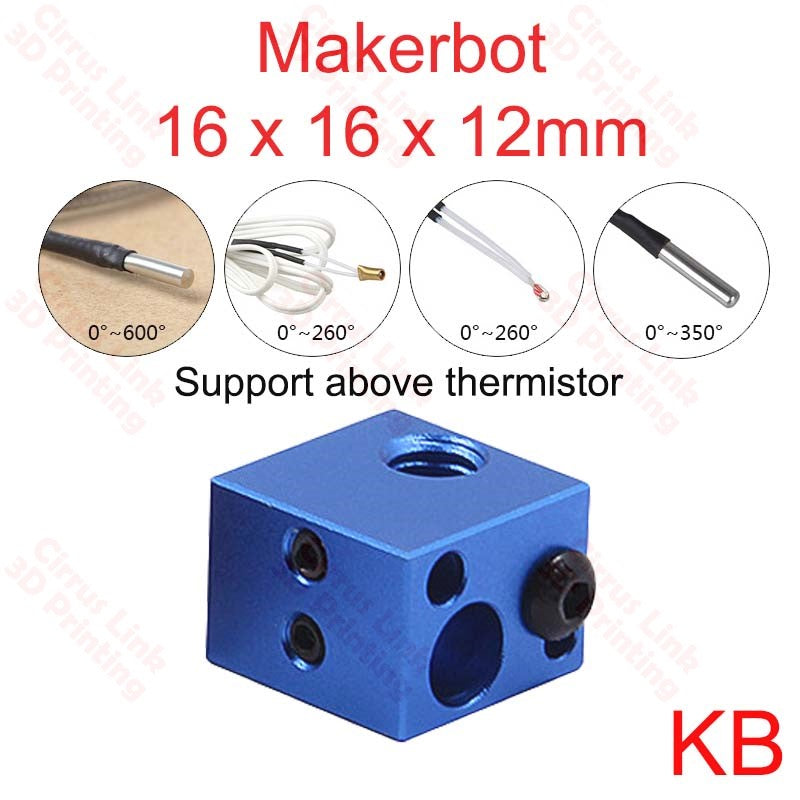

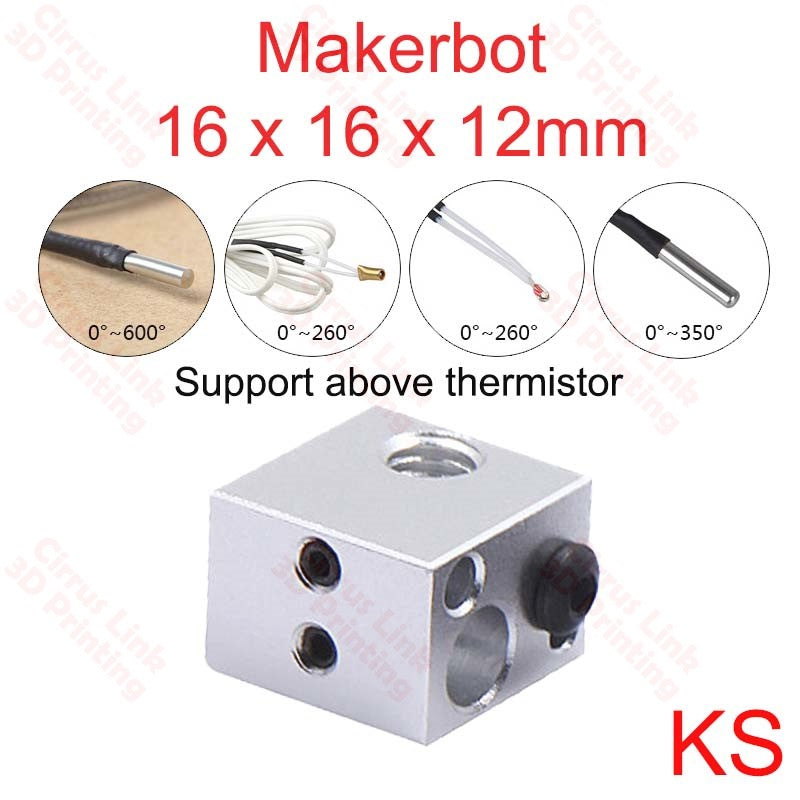

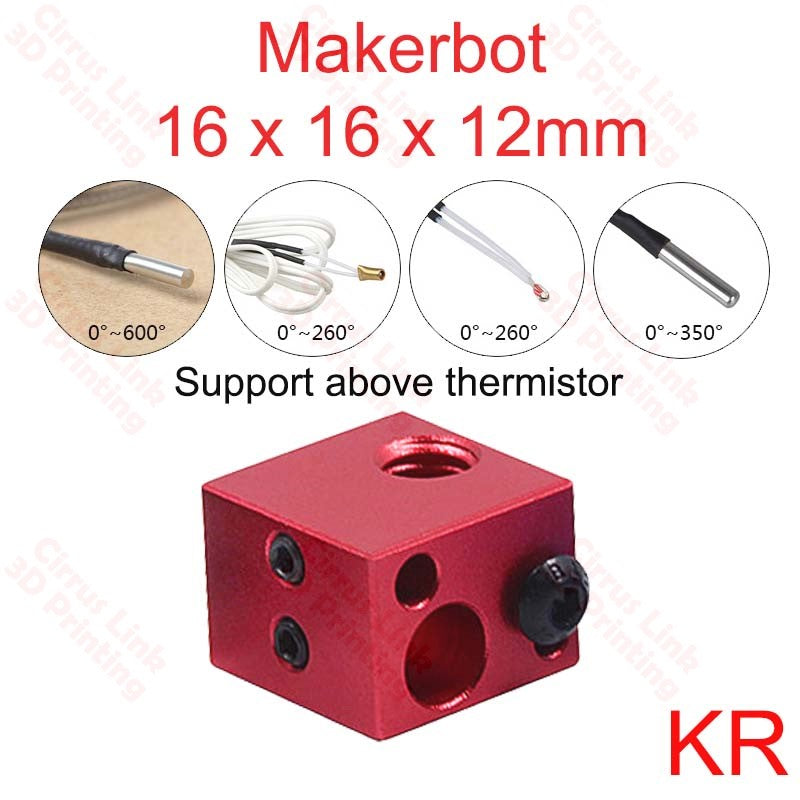

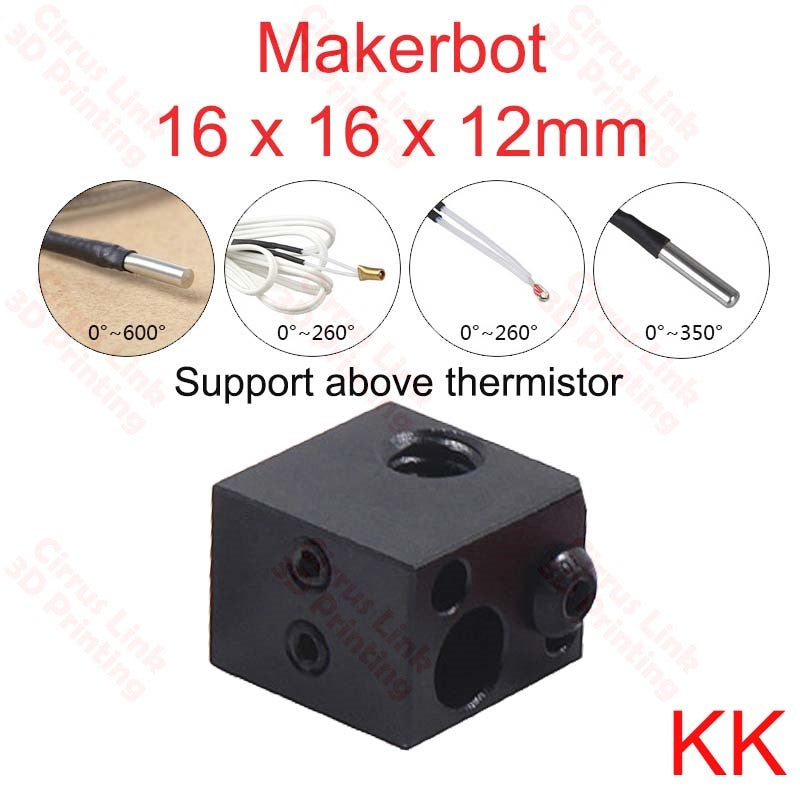

Supported Thermistor: NTC 3950 100K

Colour: Black / Silver / Gold

Quantity: 1 heating block

ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.

Safety Guide

►Keep away from small children.
►This products are only suitable for 3D printer use indoors.
►To ensure your safety and proper operation of the equipment, we recommend that you should fully understand the operation and safety features of the 3D printer.
►Don't put this item into your month.
►3D printer replacement parts, Always shut off power to the circuit before starting installation work.
►The surface temperature of the 3D printer might be high, and be careful not to touch the heating element to prevent injury.
►3D printer initial operation, Do not run the equipment Unattended state.
►When printing with a PLA(190°C-230°C) or ABS(230°C-250°C)consumable, if the temperature sensor and other accessories fail, it may cause high temperature hazards. Do not run the equipment Unattended state.
►To ensure the users will use the product safely and properly, please read your 3D printer manual first and follow the instructions step by step before using the product.
►Due to the variety of possible end-uses, it is ultimately the responsibility of the customer to determine a product's suitability for a particular application.
