Heating Block E3D - V5 (16X16X12) mm

Sealed up tightly with generous use of tape, the E3D - v5 3D printing heating block is a form-fitting octagon-shaped 16mm x 16mm x 12mm. The increased surface area of the E3D - v5 3D printing heating block allows your hotend to achieve much higher temperatures than ever before! The E3D - v5 3D printing heating block is an improved design over previous versions. Due to the use of a uniform size printed layer by layer, the E3D - v5 3D printing heating block is compatible with nearly all desktop 3D printers on the market using direct drive extruders. A favourite among our users here at E3D, these high-performance 3D printing components are trusted around the world for their performance, quality and reliability. We have a full range of genuine E3D parts available to buy now, so check out our selection below.

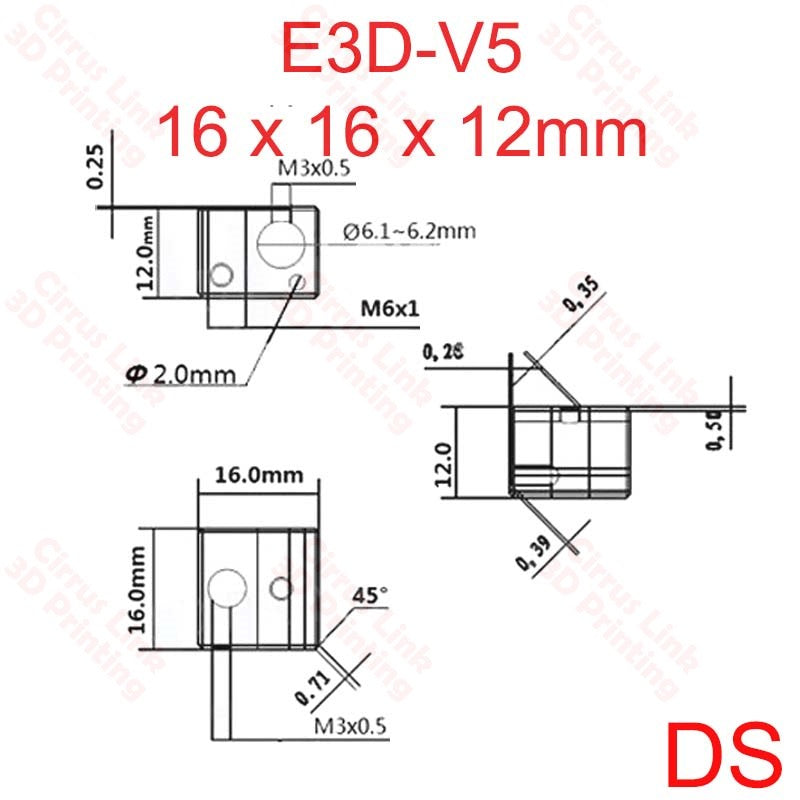

Specification

Size: 16mm (Long) X 16mm (Width) X 12mm (Height)

Material: Aluminum

Supported Heat Cartridge: M6 X 15mm

Supported Thermistor: NTC 3950 100K

Colour: Silver / Black

Quantity: 1 heating block

The product in this page is only for illustration purpose, not the real product. Actual product vary due to product enhancement.

Safety Guide

►Keep away from small children.
►This products are only suitable for 3D printer use indoors.
►To ensure your safety and proper operation of the equipment, we recommend that you should fully understand the operation and safety features of the 3D printer.
►Don't put this item into your month.
►3D printer replacement parts, Always shut off power to the circuit before starting installation work.
►The surface temperature of the 3D printer might be high, and be careful not to touch the heating element to prevent injury.
►3D printer initial operation, Do not run the equipment Unattended state.
►When printing with a PLA(190°C-230°C) or ABS(230°C-250°C)consumable, if the temperature sensor and other accessories fail, it may cause high temperature hazards. Do not run the equipment Unattended state.
►To ensure the users will use the product safely and properly, please read your 3D printer manual first and follow the instructions step by step before using the product.
►Due to the variety of possible end-uses, it is ultimately the responsibility of the customer to determine a product's suitability for a particular application.
