H-Type T8 Lead Screw Nut – 2mm & 8mm Pitch Options

By using this T8 flexible nut with H-type threading, stable and low-friction vertical movement is achieved along the Z-axis lead screw in FDM-style 3D printers. Manufactured from durable POM (polyoxymethylene), the nut resists wear while offering self-lubricating properties ideal for linear motion. The internal flexible mechanism helps absorb minor alignment discrepancies and reduces backlash. Available in 2mm or 8mm pitch variants, this component enables controlled Z-axis elevation for accurate layer placement and reduced mechanical stress during travel.

📐 Product Specifications

• Thread type:

  • H-type internal threading for T8 lead screw

• Material:

  • POM (Polyoxymethylene) – lightweight, low-friction, wear-resistant

• Pitch options:

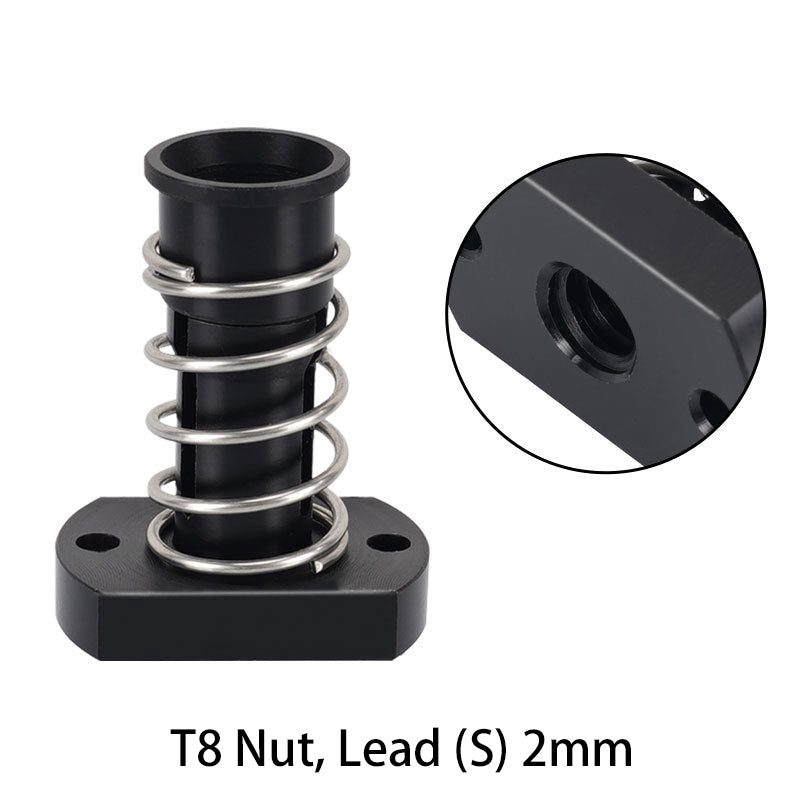

  • Variant A: 2mm pitch – finer vertical control

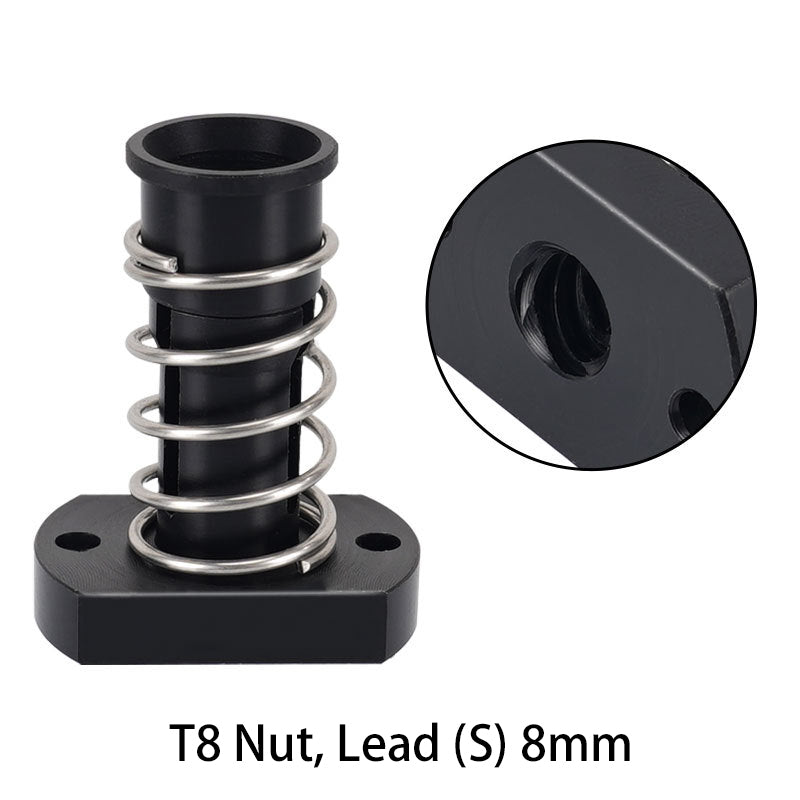

  • Variant B: 8mm pitch – faster vertical travel

• External dimensions:

  • Diameter: ~20 mm

  • Length: ~18–22 mm

• Compatibility:

  • Fits standard T8 lead screws on Z-axis assemblies

• Flex mechanism:

  • Built-in axial flexibility to reduce backlash and noise

• Installation:

  • Can be mounted on Z-axis motor brackets or anti-backlash housing

• Motion benefits:

  • Smoother layer lift, improved print consistency, lower friction

This flexible POM nut supports precise vertical motion in Z-axis systems, offering a low-friction and backlash-resistant connection for reliable layered printing.
