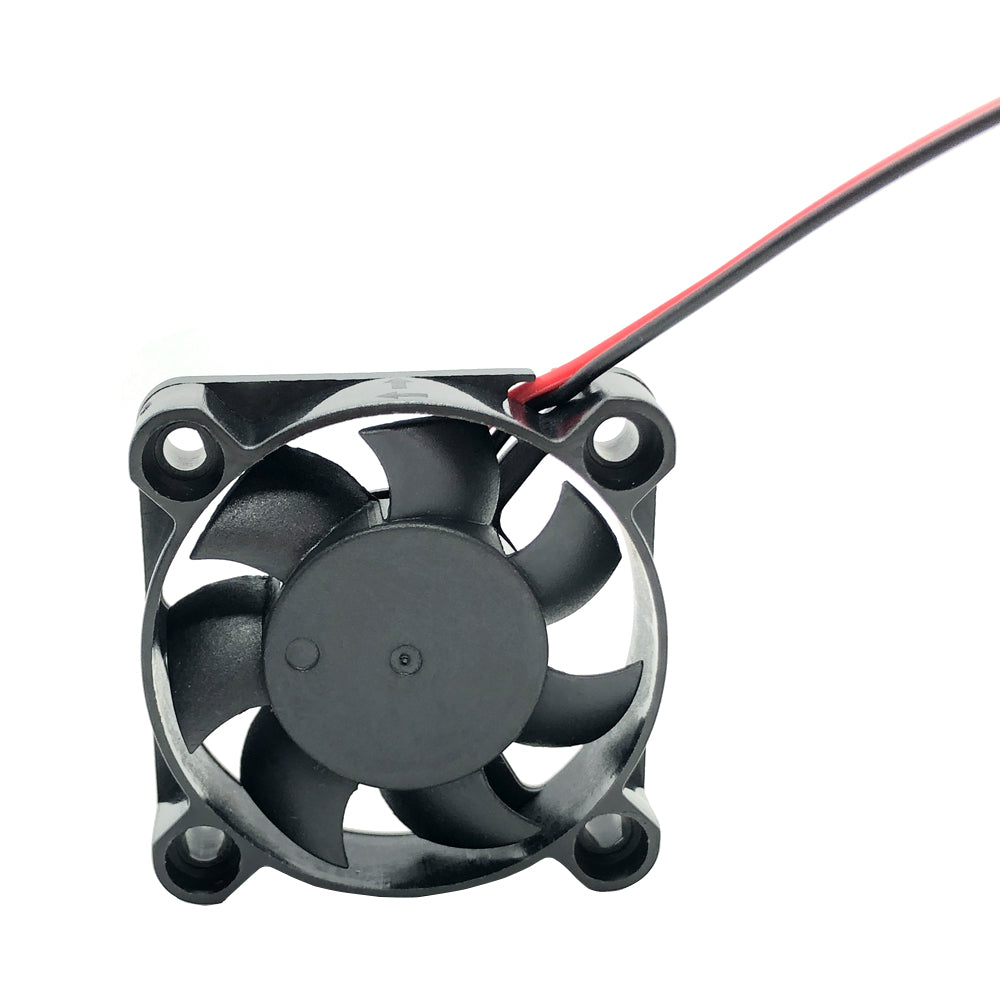

A compact black 12V fan from 3D Printing Perth - Cirrus Link, featuring red and black wires, is displayed against a white background. The Fan 4010 model measures 40x40x10mm and operates at 6512 RPM to provide efficient cooling with a noise level of just 23 DBA. Ideal for use in electronic devices like 3D printers, this dual ball bearing fan ensures both durability and excellent performance.

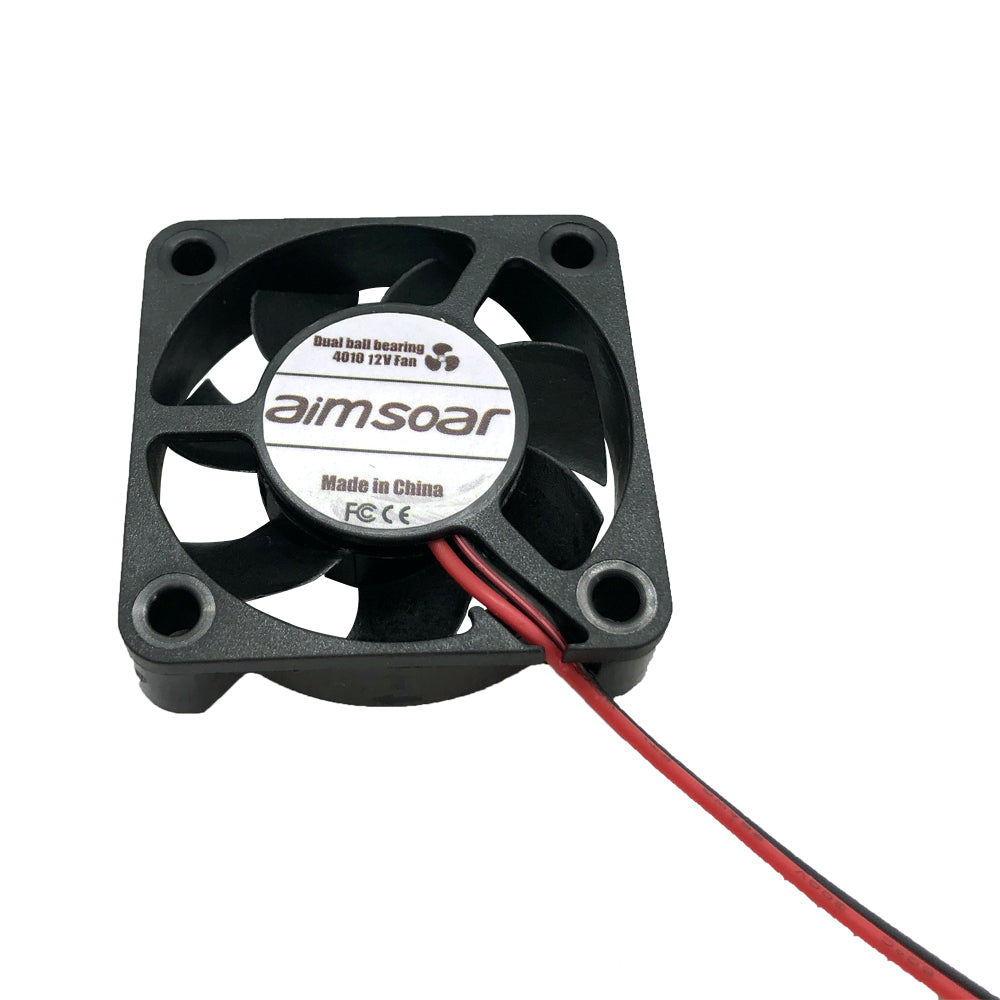

A compact black computer cooling fan labeled as "aimsoar," featuring red and black wires, functions as a 12V DC fan from the brand 3D Printing Perth - Cirrus Link with specifications of 40x40x10mm, dual ball bearing, operating at 6512 RPM, producing 23 DBA noise level and providing airflow of 6.5 CFM at a current of 0.1 A.

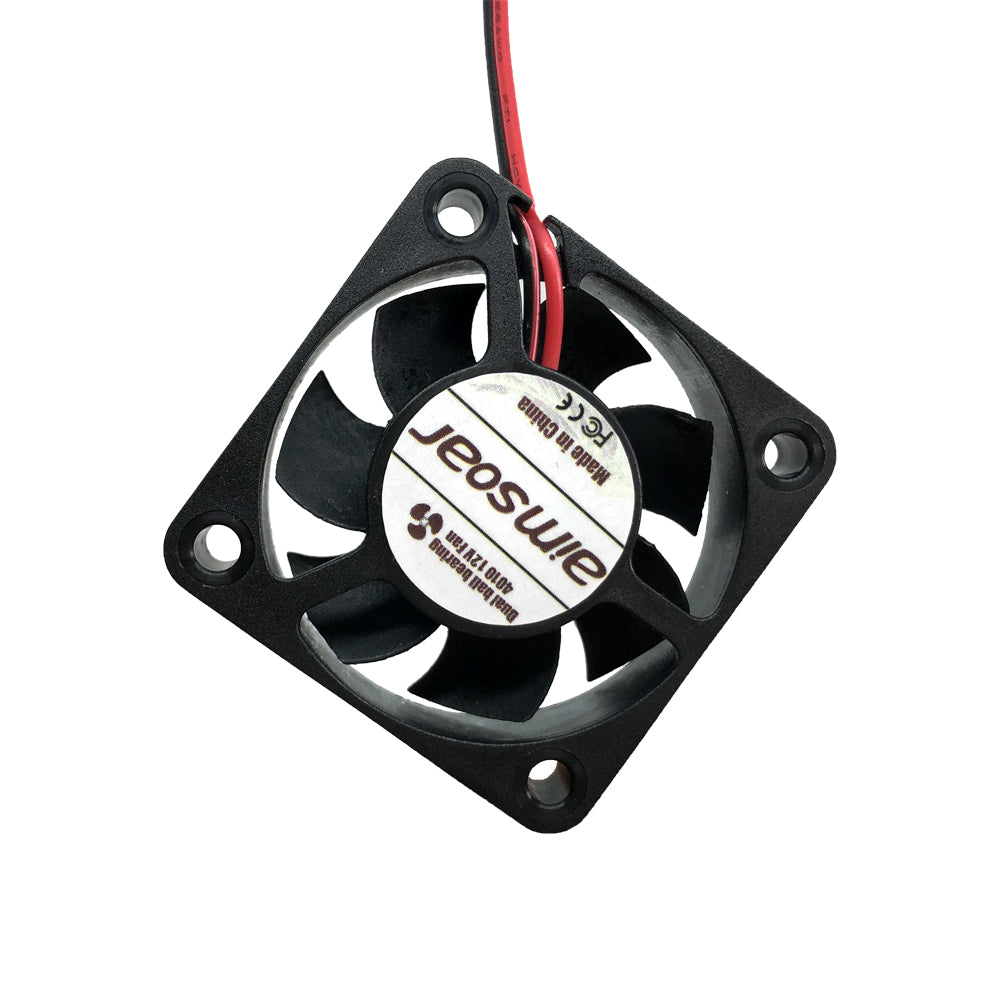

Introducing the Fan 4010 by 3D Printing Perth - Cirrus Link, a compact dual ball bearing 12V DC cooling fan with dimensions of 40x40x10mm. It operates at a speed of 6512 RPM, producing only 23 DBA of noise while delivering an airflow of 6.5 CFM at a current draw of just 0.1 A. This fan features a sleek black square design complemented by central labeling and comes with attached red and black wires, making it ideal for use in 3D printers.

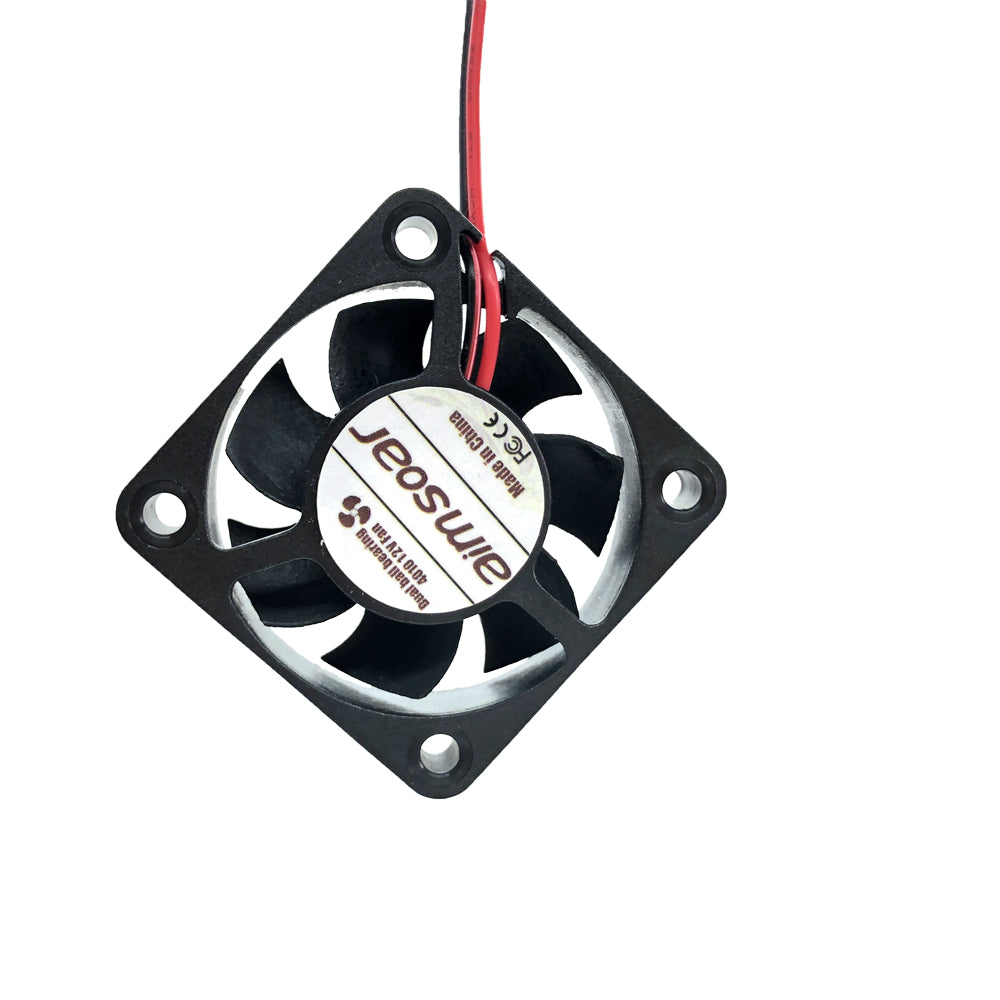

Introducing the 3D Printing Perth - Cirrus Link Fan 4010: a compact black dual ball bearing cooling fan, sized at 40x40x10mm, with a central label and red and black wires. Ideal for your 3D printer setup or any application requiring a 12V DC solution.

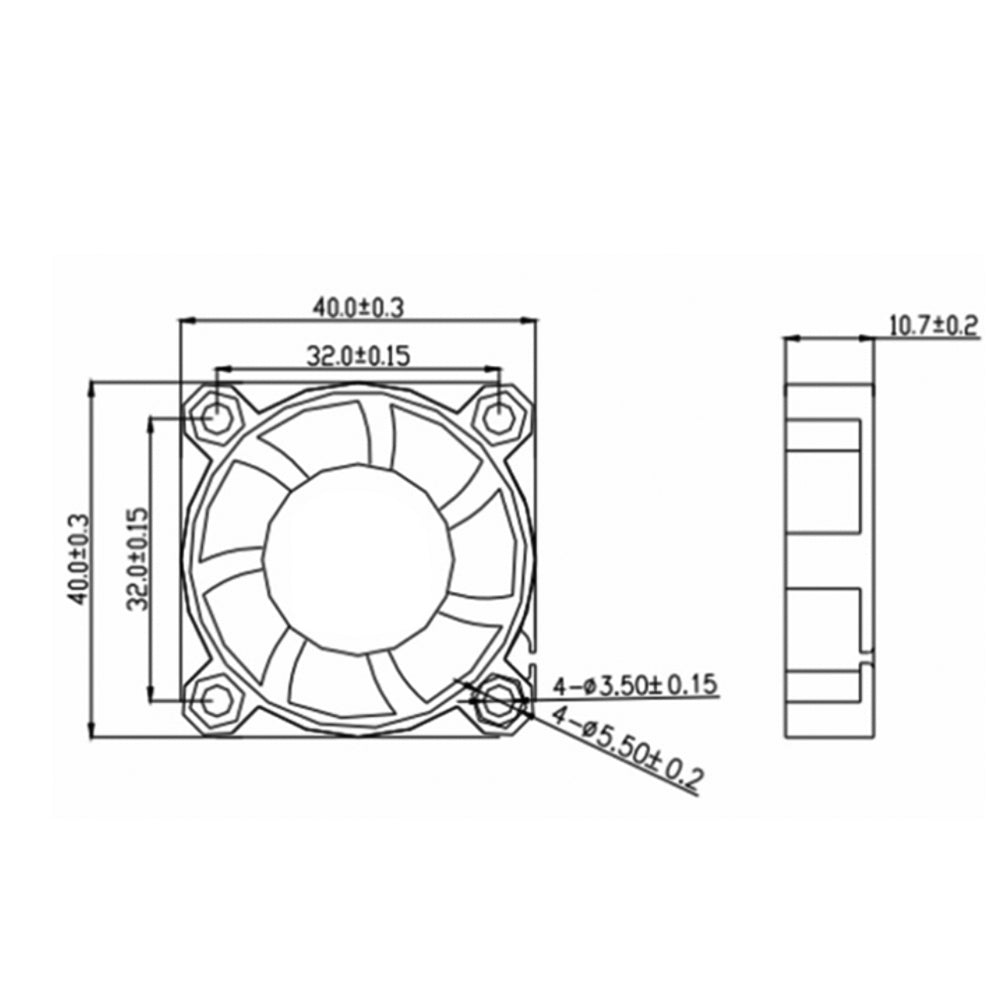

Technical drawing of the 3D Printing Perth - Cirrus Link Fan 4010, a dual ball bearing square fan operating at 12V. The design includes dimensions (40x40x10mm) with specifications such as mounting holes and thickness clearly marked. With an impressive speed of 6512 RPM, a noise level of 23 DBA, and an airflow capacity of 6.5 CFM at a current of 0.1 A, this fan is ideal for enhancing durability and efficiency in 3D printer applications.
A compact black 12V fan from 3D Printing Perth - Cirrus Link, featuring red and black wires, is displayed against a white background. The Fan 4010 model measures 40x40x10mm and operates at 6512 RPM to provide efficient cooling with a noise level of just 23 DBA. Ideal for use in electronic devices like 3D printers, this dual ball bearing fan ensures both durability and excellent performance.
A compact black computer cooling fan labeled as "aimsoar," featuring red and black wires, functions as a 12V DC fan from the brand 3D Printing Perth - Cirrus Link with specifications of 40x40x10mm, dual ball bearing, operating at 6512 RPM, producing 23 DBA noise level and providing airflow of 6.5 CFM at a current of 0.1 A.
Introducing the Fan 4010 by 3D Printing Perth - Cirrus Link, a compact dual ball bearing 12V DC cooling fan with dimensions of 40x40x10mm. It operates at a speed of 6512 RPM, producing only 23 DBA of noise while delivering an airflow of 6.5 CFM at a current draw of just 0.1 A. This fan features a sleek black square design complemented by central labeling and comes with attached red and black wires, making it ideal for use in 3D printers.
Introducing the 3D Printing Perth - Cirrus Link Fan 4010: a compact black dual ball bearing cooling fan, sized at 40x40x10mm, with a central label and red and black wires. Ideal for your 3D printer setup or any application requiring a 12V DC solution.
Technical drawing of the 3D Printing Perth - Cirrus Link Fan 4010, a dual ball bearing square fan operating at 12V. The design includes dimensions (40x40x10mm) with specifications such as mounting holes and thickness clearly marked. With an impressive speed of 6512 RPM, a noise level of 23 DBA, and an airflow capacity of 6.5 CFM at a current of 0.1 A, this fan is ideal for enhancing durability and efficiency in 3D printer applications.

3D Printing Perth - Cirrus Link

Fan 4010 12V Dual Ball Bearing 40x40x10mm 6512 RPM 23 DBA 6.5 CFM 0.1 A

$12.99
Tax included. Shipping calculated at checkout.

Pickup available at Dog Swamp Shopping Centre

Usually ready in 24 hours

4010 Dual Ball Bearing Fan - 12V DC

The 4010 Dual Ball Bearing Fan is an essential component for enhancing the performance and longevity of your 3D printer. Engineered with precision and reliability in mind, this high-efficiency fan operates at 12V DC and is designed to manage temperature and improve airflow effectively.

Key Features:

  • Noise Level: Operating at a mere 23 dBA, this fan is whisper-quiet, ensuring a peaceful printing environment.
  • High Speed: With a maximum speed of 6512 ± 5% RPM, it provides rapid cooling for hot components.
  • Air Volume: This fan boasts an impressive air volume of 6.5 CFM, offering substantial airflow to keep your hardware cool and your prints flawless.
  • Current Draw: Consuming only 0.1 A, it is energy-efficient while delivering excellent performance.
  • Power Consumption: With a power rating of 1.2 W, this fan strikes the perfect balance between performance and energy use.
  • Durability: Featuring a double ball bearing structure, the fan ensures longevity, with a lifespan exceeding 30,000 hours.
  • Operating Temperature: Designed to perform in a wide temperature range of -10°C to 80°C, it’s ideal for various applications.
  • Humidity Resistance: With storage capability between 5% to 95% RH, this fan can withstand humid environments.
  • Compact Size: Measuring 40mm x 40mm x 10mm, it fits perfectly in tight spaces without compromising on cooling efficiency.
  • 2-Pin Connector: Easy to install with its simple 2-pin wiring setup – red for positive and black for negative, ensuring a straightforward integration with your 3D printer.

Why Choose the 4010 Dual Ball Bearing Fan?

3D printing requires precise control over temperature and airflow to produce high-quality prints. The 4010 Dual Ball Bearing Fan ensures that your extruder and print bed remain within optimal temperature ranges, especially during long print jobs. Its efficient airflow not only enhances print quality but also prevents potential overheating issues that could lead to failed prints or damage to your printer.

Versatile Applications:

This fan is not just limited to 3D printers. Its reliable performance makes it suitable for a variety of applications, including:

  • Cooling system for electronic devices
  • HVAC systems
  • Computer cases and power supplies
  • Spot cooling for specific components
  • General airflow applications in custom projects

Installation Guide:

Installing the 4010 Dual Ball Bearing Fan is a breeze:
