Brass Nozzle for Creality K1/K1 Max

$3.29

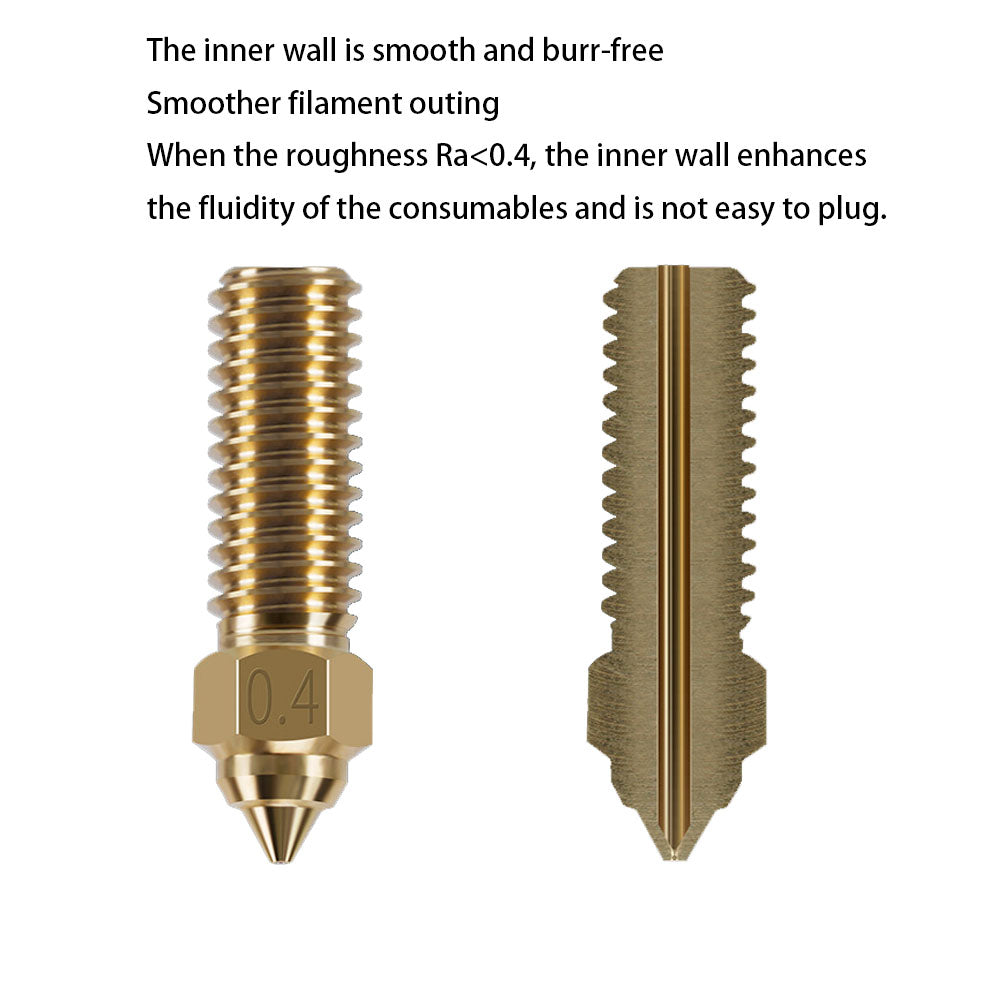

  • Two Brass Nozzles for Creality K1/K1 Max by 3D Printing Perth - Cirrus Link are shown: one whole and one cross-sectioned to highlight the smooth, burr-free inner wall for improved 1.75mm filament flow and enhanced nozzle performance.
  • The Brass Nozzle for Creality K1/K1 Max by 3D Printing Perth - Cirrus Link features a hexagonal head, threaded body, 0.8mm size, and supports 1.75mm filament for use in 3D printers like the Creality K1.
  • The Brass Nozzle for Creality K1/K1 Max by 3D Printing Perth - Cirrus Link has a hexagonal head engraved "0.2," threaded lower section, and is made for 1.75mm filament 3D printers.
  • Two Brass Nozzle for Creality K1/K1 Max by 3D Printing Perth - Cirrus Link, designed for 1.75mm filament, are shown with threaded bodies—one horizontal, one upright—on a white background.
  • A close-up of a 3D Printing Perth - Cirrus Link Brass Nozzle for Creality K1/K1 Max, featuring a threaded body and a 0.8 mm marking on the hexagonal section, designed for 1.75 mm filament.
  • The 3D Printing Perth - Cirrus Link Brass Nozzle for Creality K1/K1 Max features a hexagonal head marked "0.2" and threaded section, designed for use with 1.75mm filament in 3D printers like the Creality K1.
  • The Brass Nozzle for Creality K1/K1 Max by 3D Printing Perth - Cirrus Link is a gold-colored, threaded brass nozzle with a hexagonal base and pointed tip, designed for 1.75mm filament in compatible 3D printers.
  • The Brass Nozzle for Creality K1/K1 Max by 3D Printing Perth - Cirrus Link features a hexagonal head labeled "0.9" and is designed for 1.75mm filament, making it ideal for use with Creality K1 3D printers.

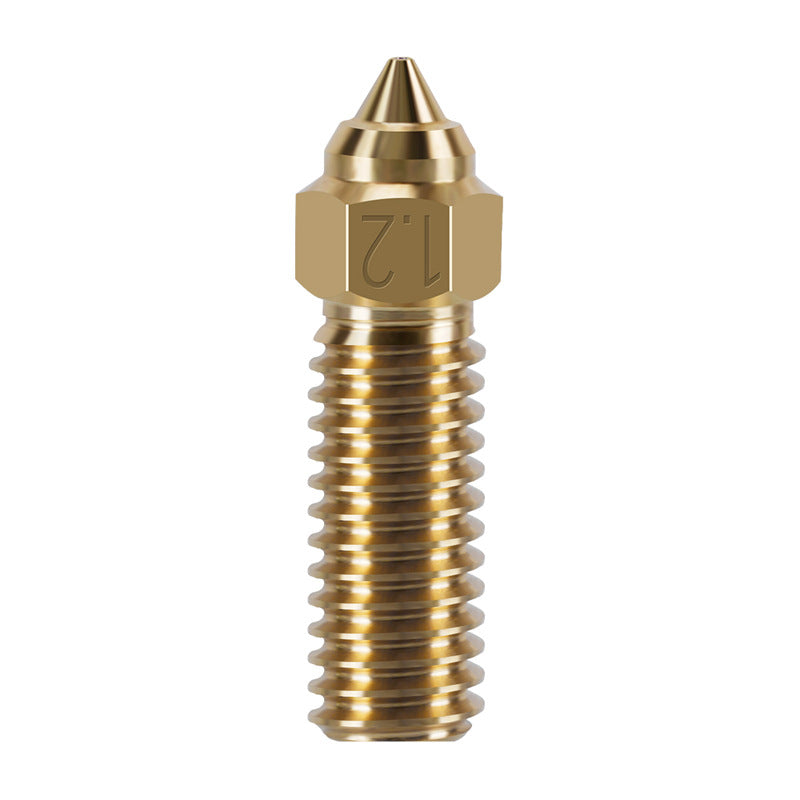

  • A close-up of the Brass Nozzle for Creality K1/K1 Max by 3D Printing Perth - Cirrus Link, designed for 1.75mm filament with a threaded shaft, hexagonal base engraved "1.2", and full compatibility with Creality K1 printers.
  • The 3D Printing Perth - Cirrus Link Brass Nozzle for Creality K1/K1 Max suits 1.75mm filament, has a 0.4mm thread, hexagonal center, and pointed tip; shown vertically.

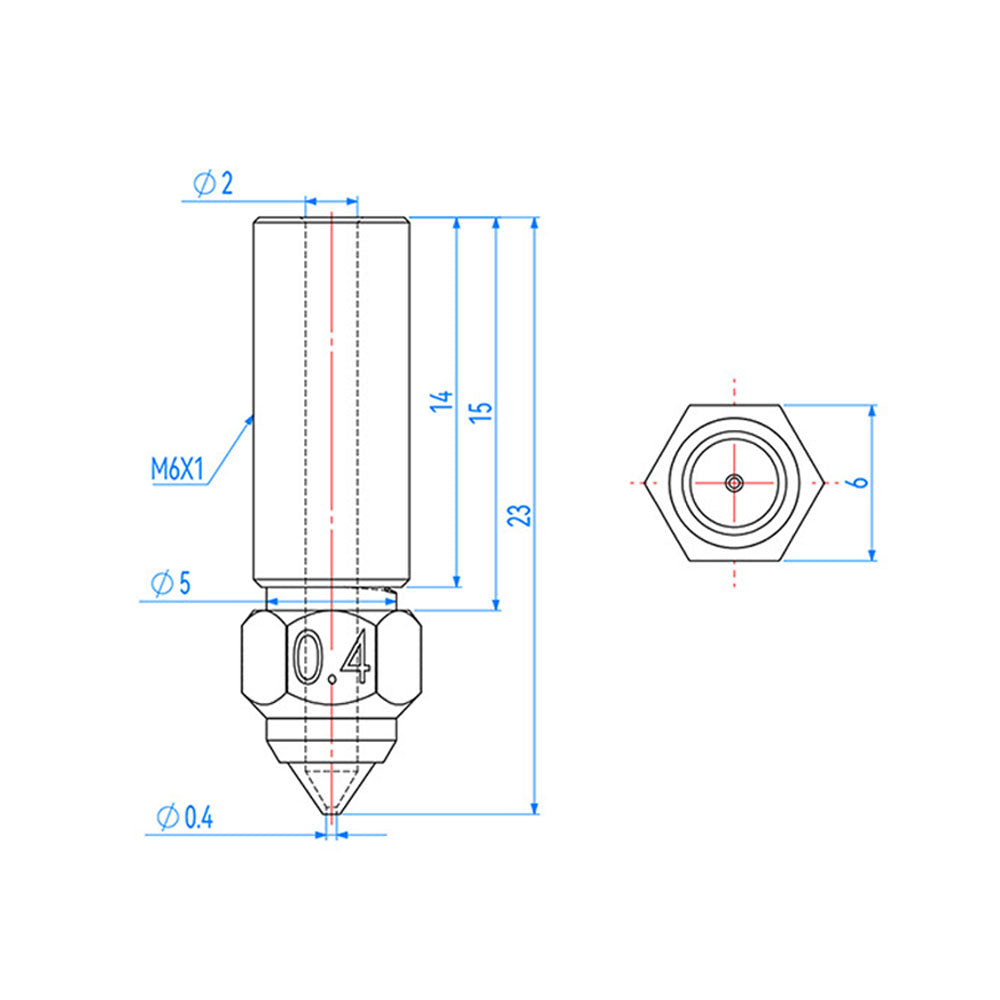

  • Technical drawing of the 3D Printing Perth - Cirrus Link Brass Nozzle for Creality K1/K1 Max: shows labeled dimensions, M6x1 thread, 0.4mm nozzle diameter, and 23mm length—compatible with 1.75mm filament.
Size
$3.29
$3.29
Tax included. Shipping calculated at checkout.

By using the Brass Nozzle for Creality K1/K1 Max, consistent filament flow and thermal stability are achieved across a wide range of materials. CNC-machined from high-quality brass, the nozzle offers excellent heat conductivity and smooth internal surfaces for reduced clogging and improved layer adhesion. Available in multiple diameter variants from 0.2mm to 1.0mm, it supports both fine-detail and high-throughput applications. Compatible with 1.75mm filament and M6-threaded hotends, this nozzle is designed for fast installation and reliable performance in Creality K1, K1 Max, and CR-M4 printers.


📐 Product Specifications

  • Material: Brass

  • Nozzle sizes: 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm

  • Thread type: M6

  • Filament diameter: 1.75mm

  • Max temperature: Up to 300°C

  • Compatible printers:

    • Creality K1

    • Creality K1 Max

    • Creality CR-M4

  • Supported materials:

    • PLA, PETG, TPU, ABS



Engineered for smooth extrusion and thermal efficiency, this brass nozzle enhances print quality and speed across Creality K1 and K1 Max printers.
