  • Blower 5015 24V 6200 RPM 15 CFM 27 DBA Oil Bearing
Introducing the Blower 5015 by 3D Printing Perth - Cirrus Link: A high-performance cooling fan in sleek black with a circular vent and two attachment holes. It features red and black wires extending from the side, perfect for efficient heat management. Designed to ensure optimal airflow in electronic setups, this 24V fan operates at 6200 RPM delivering 15 CFM at just 27 DBA, thanks to its oil-bearing technology.
A compact black fan from 3D Printing Perth - Cirrus Link, labeled
A top-performing black circular cooling fan with a plastic casing and dual red-and-black wires extending from the top, similar to the Blower 5015 24V 6200 RPM model by 3D Printing Perth - Cirrus Link.
A high-performance black DC brushless cooling fan with a circular design, branded as

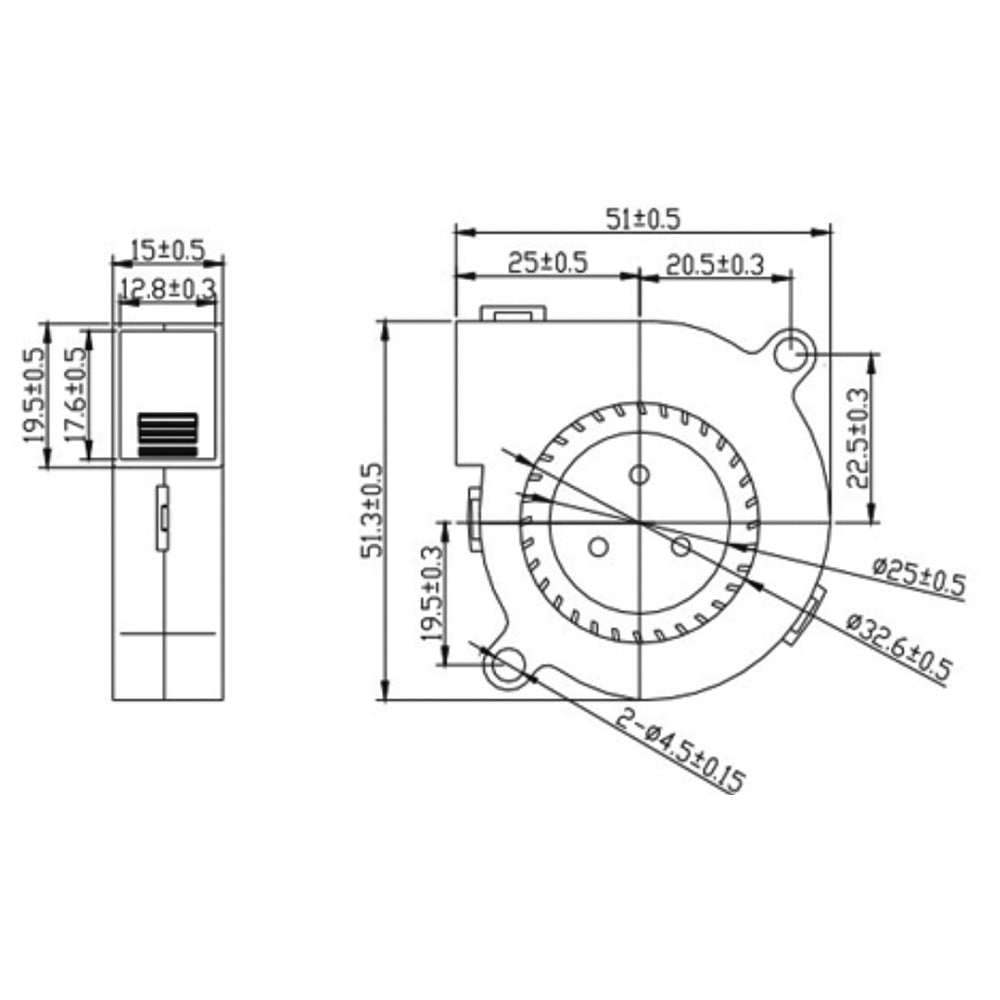

Technical diagram of the Blower 5015 by 3D Printing Perth - Cirrus Link, a high-performance mechanical component. It includes detailed measurements and shows both front and side views. This blower operates at 24V with a speed of 6200 RPM, provides an airflow of 15 CFM, and has a noise level of 27 DBA with an oil bearing design.

Blower 5015 24V 6200 RPM 15 CFM 27 DBA Oil Bearing

$9.99
  • Description
  • Reviews
Description

Blower 5015 24V - High Performance Cooling Fan

Upgrade your 3D printing experience with the robust and efficient Blower 5015 24V! Designed for optimal performance in demanding applications, this blower fan is an essential component that ensures your printer operates at peak efficiency. Whether you are cooling components during printing or enhancing ventilation, our Blower 5015 is an excellent choice.

Key Features

  • Voltage: DC 24V
  • Wiring Length: 30CM for flexible installation
  • Noise Level: Quiet operation at just 27 DBA
  • Speed: High-speed performance at 6200 ± 10% RPM
  • Air Volume: Generating an impressive airflow of 15 CFM
  • Current: Efficient consumption at 0.11 A
  • Power: Operation at only 2.4 W
  • Size: Compact design with φ50*15mm dimensions
  • Bearing Structure: Durable oil bearing design for longevity
  • Temperature Range: Reliable operation between -10 to +60℃
  • Storage Conditions: Safe operating under 5 to 95% RH
  • Longevity: Designed for a lifespan of more than 30,000 hours

Product Specifications

Specification Details
Operating Voltage DC 24V
Speed 6200 ± 10% RPM
Current 0.11 A
Power 2.4 W
Noise Level 27 DBA
Air Volume 15 CFM
Temperature Range -10 to +60℃
Dimensions φ50*15mm
Wiring 30CM, Red (positive), Black (negative)
Life Span More than 30,000 hours

Why Choose the Blower 5015?

The Blower 5015 24V is built to provide efficient and reliable cooling for all your 3D printing needs. Its compact design combined with high airflow capabilities ensures that heat is effectively dissipated, preventing overheating and enabling better
