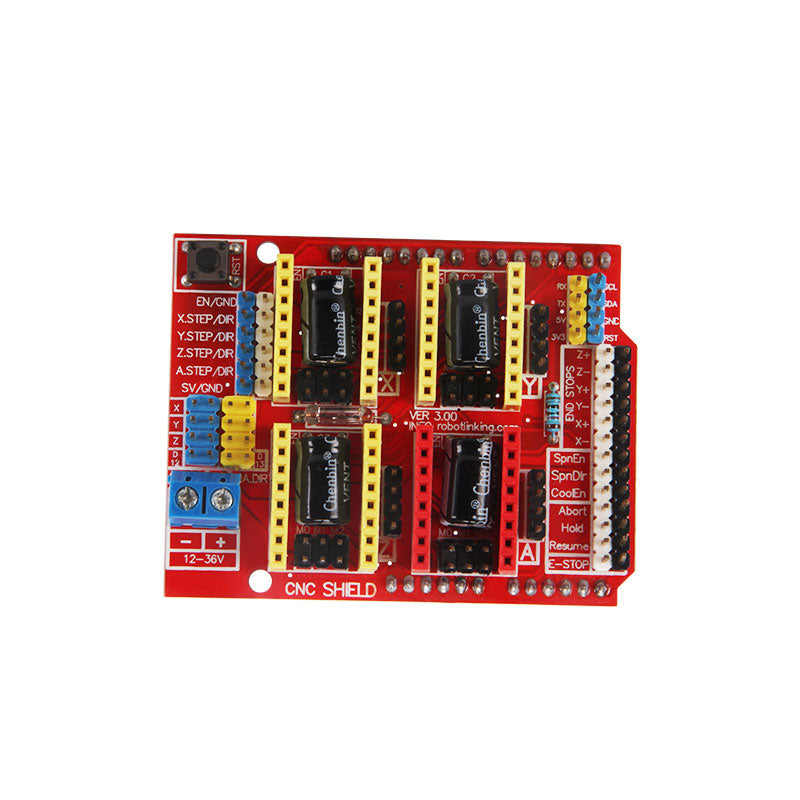

  • A CNC Shield V3 Engraving Machine Development Board by 3D Printing Perth - Cirrus Link, in red with labeled yellow and black pins for stepper motor driver connections, integrates seamlessly with your engraving machine.

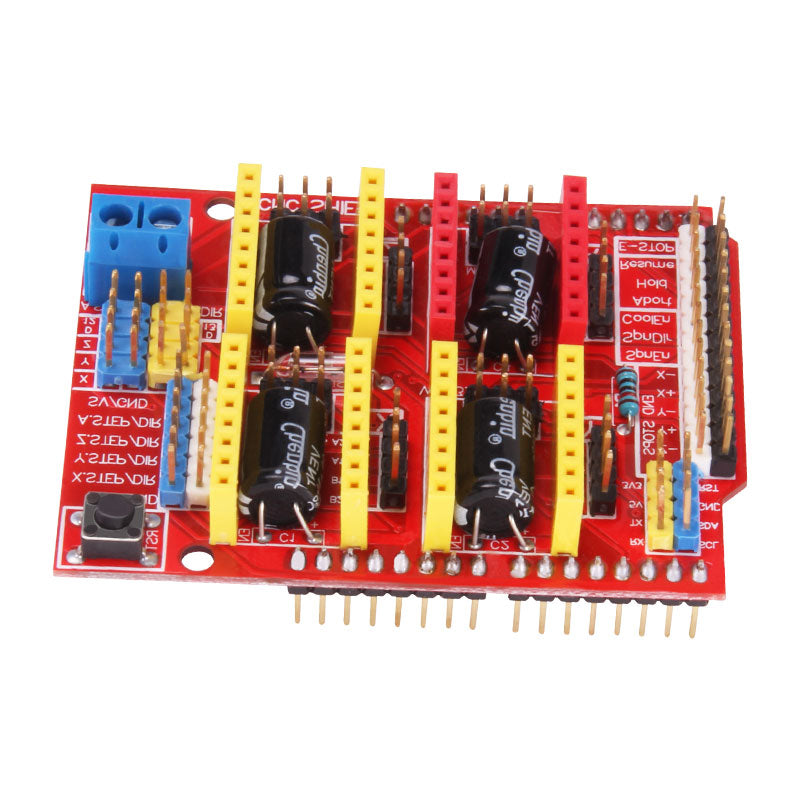

  • A red CNC Shield V3 Engraving Machine Development Board from 3D Printing Perth - Cirrus Link features yellow pin headers, black capacitors, and connectors for electronic component mounting.

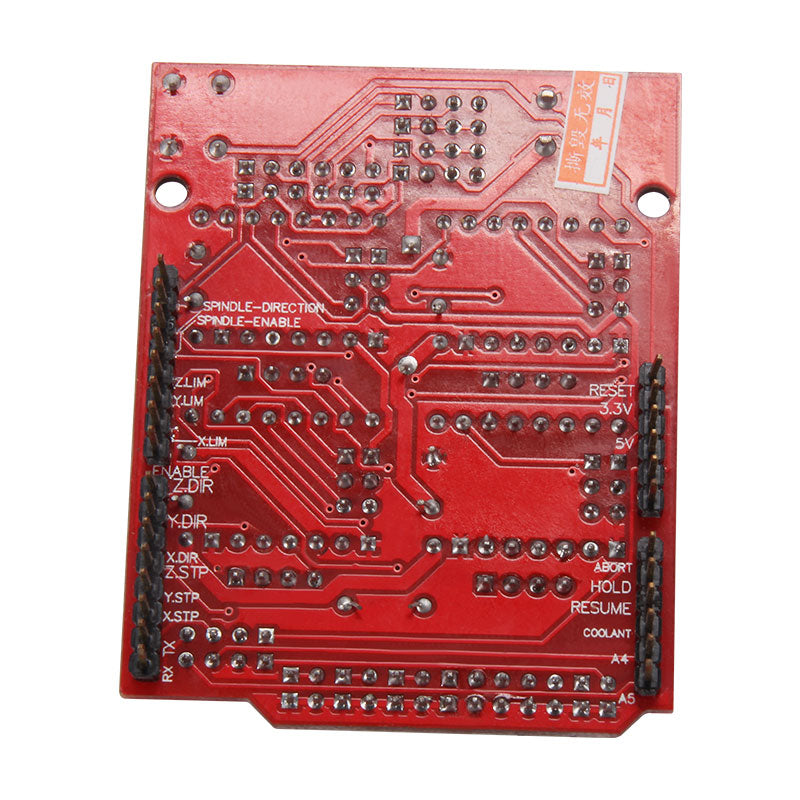

  • The CNC Shield V3 Engraving Machine Development Board by 3D Printing Perth - Cirrus Link is a red circuit board with labeled pathways, ports, and mounting holes. It integrates seamlessly for enhanced performance and functionality in electronic connections and 3D printer setups.

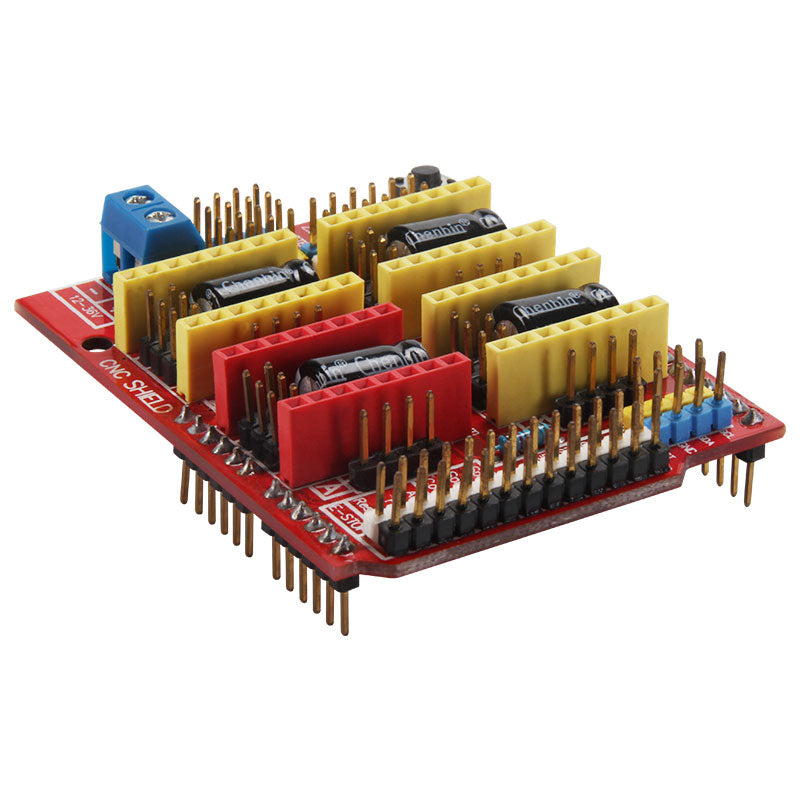

  • The CNC Shield V3 Engraving Machine Development Board by 3D Printing Perth - Cirrus Link is a red board with yellow and red pin connectors and black capacitors, ideal for controlling stepper motors in DIY CNC machines, engraving machines, and 3D printers.

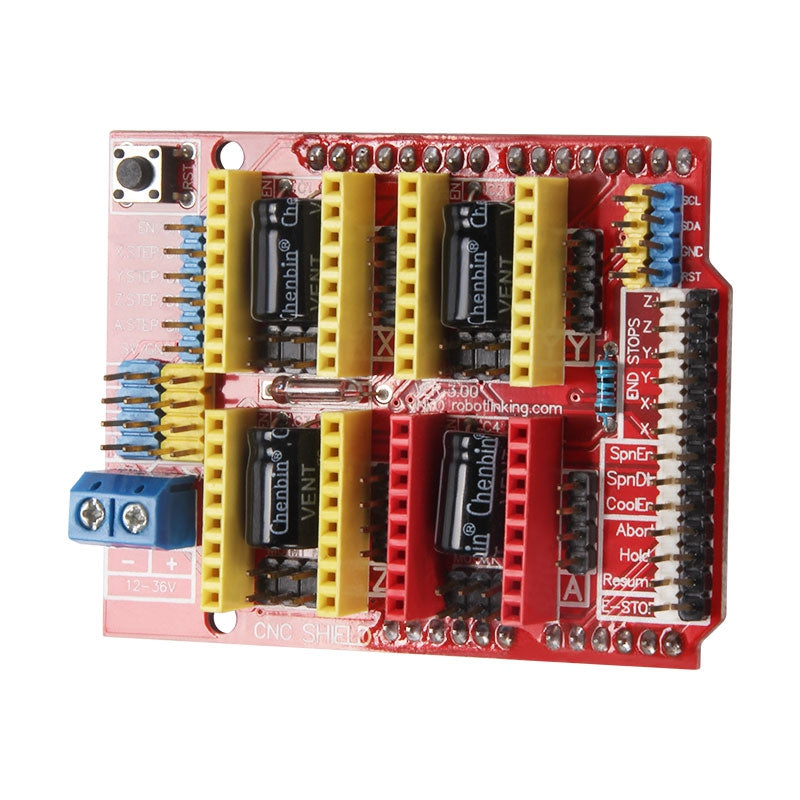

  • A close-up of a red CNC Shield V3 Engraving Machine Development Board by 3D Printing Perth - Cirrus Link features multiple pin connectors, yellow and blue terminal blocks, black chip slots, and printed labels for controls and power, ideal as an engraving machine or 3D printer expansion board.
$16.99
$16.99
Tax included. Shipping calculated at checkout.

CNC Shield V3 Engraving Machine & 3D Printer Drive Expansion Board

Introducing the CNC Shield V3, a versatile and essential component for both engraving machines and 3D printers. This expansion board is designed to enhance your workflow by simplifying the way you connect and manage your stepper motors. Featuring four slots for stepper motor drive modules, this board facilitates the easy integration of A4988 stepper motor drivers (note: A4988 drivers are not included but are available for separate purchase).

Key Features

  • Four-Stepper Motor Control: The CNC Shield V3 offers four dedicated slots for stepper motor drivers. You can seamlessly control multiple motors simultaneously, making it perfect for complex projects requiring precise movement.
  • Efficient I/O Port Management: Each stepper motor only requires 2 IO ports for operation. This means that with just 6 IO ports, you can effectively manage 3 stepper motors—truly a game-changer in simplifying connections.
  • Compatibility: Designed for compatibility with various CNC engraving machines and 3D printers, making it a highly versatile piece of equipment. Ideal for hobbyists, educators, and professionals alike.
  • Compact and User-Friendly: Say goodbye to the cumbersome setup of traditional stepper motors. The CNC Shield V3 is compact and designed for ease of use, allowing for quick installations and modifications.
  • Stable and Reliable Performance: Built with high-quality components, this expansion board provides stable and reliable performance during operation, ensuring that your projects come out just as you envisioned.

Technical Specifications

Specification Details
Supported Stepper Drivers A4988 (not included, sold separately)
Number of Motor Slots 4
IO Port Requirement 2 IO ports per motor
Total Motors Managed with 6 IO Ports 3 Motors
Board Type CNC Shield V3

Easy Integration

The CNC Shield V3 is designed for easy integration with popular control boards such as Arduino. This allows for quick setup and makes it accessible for users who might not have extensive electronics experience. Through a seamless interfacing process, you can connect your motors within minutes, allowing you to focus more on your project and less on technical hurdles.

Applications

This expansion board is perfect for a wide range of applications:

  • 3D Printing: Enhance your 3D printing capabilities with precise motor control to achieve finer details in your prints.
  • CNC Engraving: Perfect for engraving tasks, giving you the ability to cut and engrave intricate designs.
  • Robotics Projects: Ideal for hobbyist and educational robotics projects where precise motion control is required.
