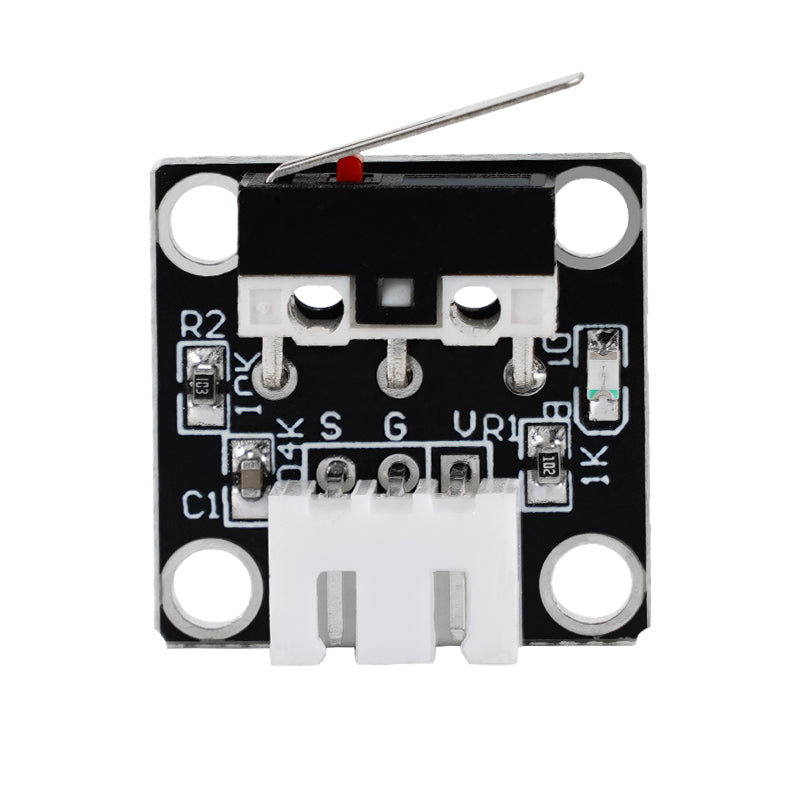

Close-up of an EndStop Switch for CR-10 Ender-3S by 3D Printing Perth - Cirrus Link, perfect for 3D printing, featuring four mounting holes and a white connector port at the bottom.

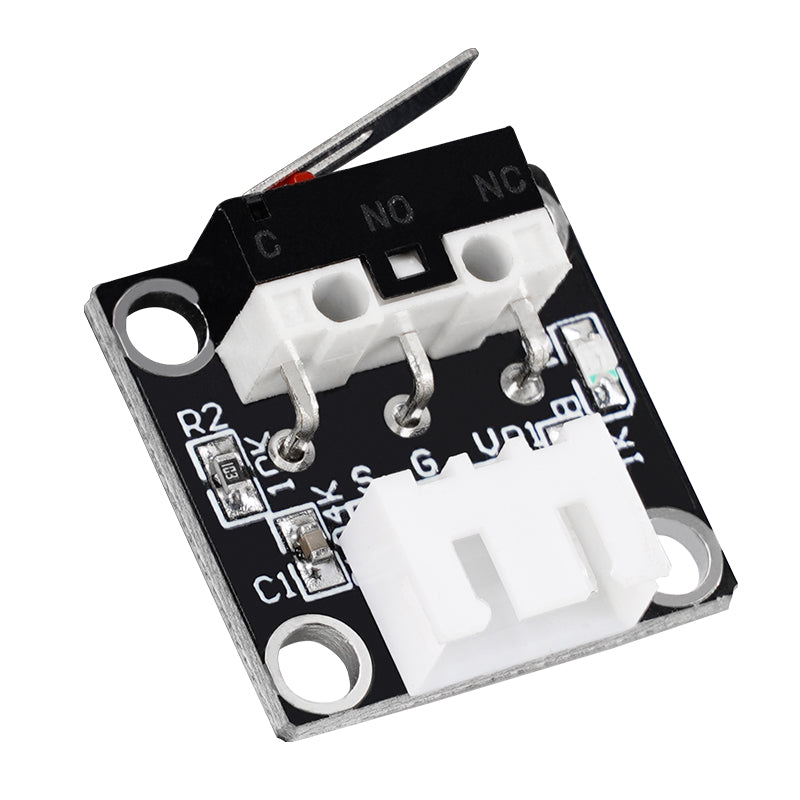

Close-up of an EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link, featuring a lever arm mounted on a compact black circuit board with a white connector and labeled components, crucial for precision in 3D printing setups.

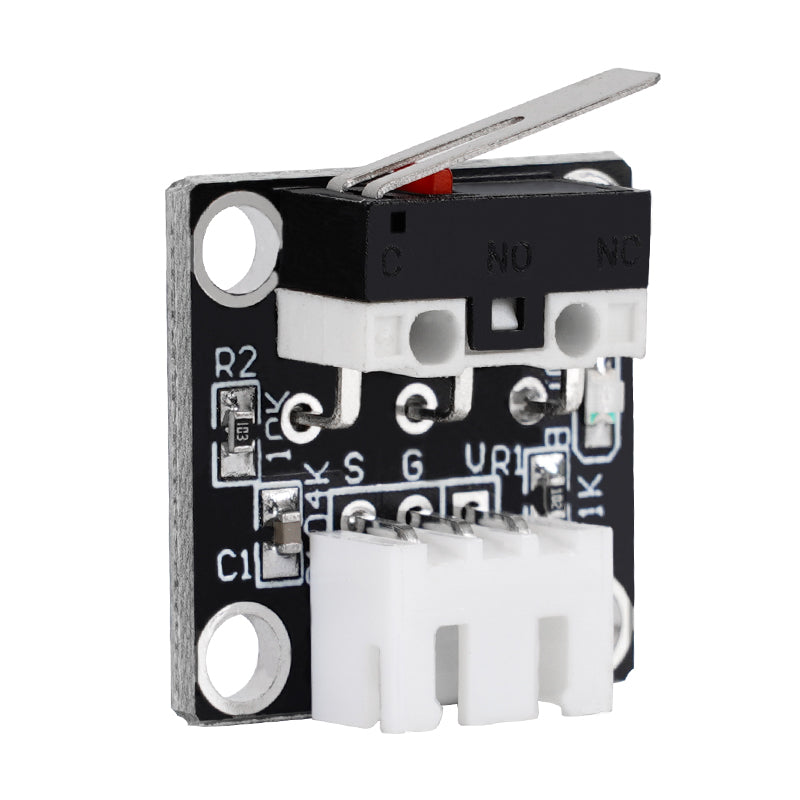

Close-up of an electronic module highlighting the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link, featuring a three-pin connector and lever switch, essential for precise 3D printing tasks.

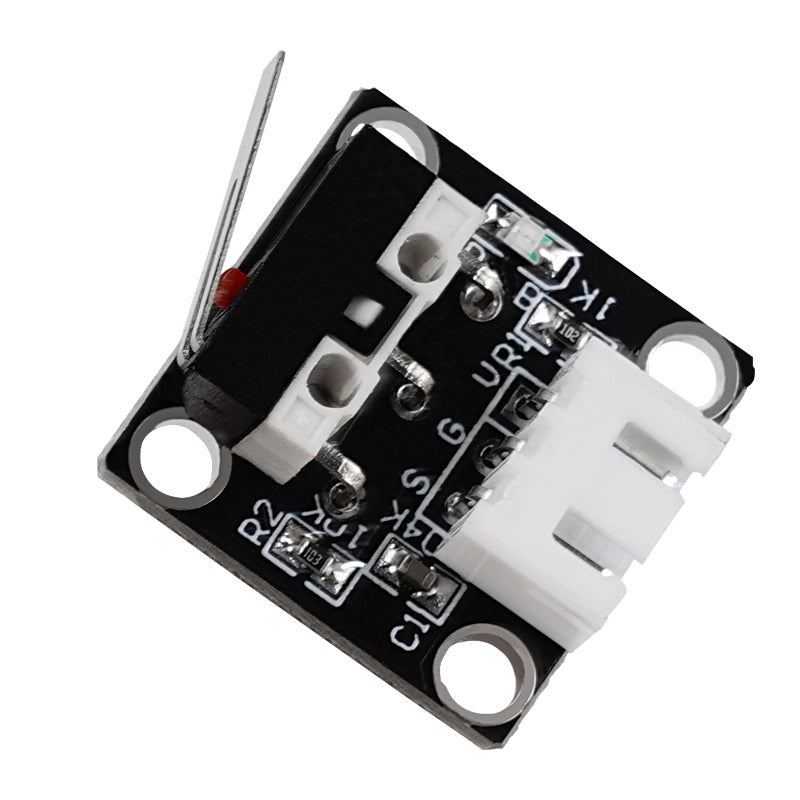

Close-up of a black EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke from 3D Printing Perth - Cirrus Link, showcasing multiple connectors and labeled terminals, constructed with metal and plastic components, ideal for precise 3D printing applications.

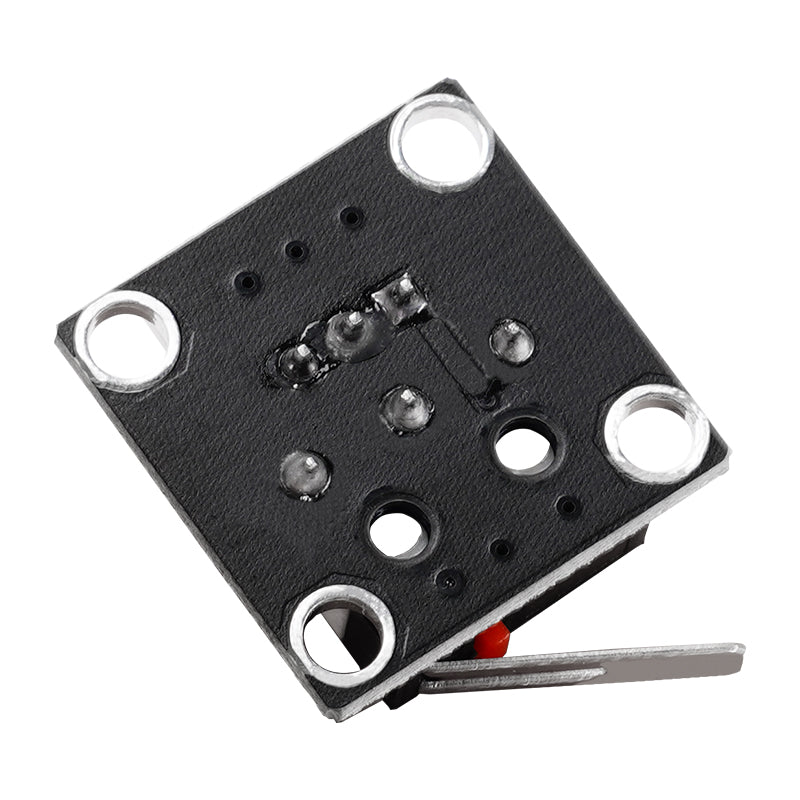

A square electronic component with four mounting holes and metal contacts on a black surface, similar to the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link, is crucial for achieving precision in 3D printing projects.

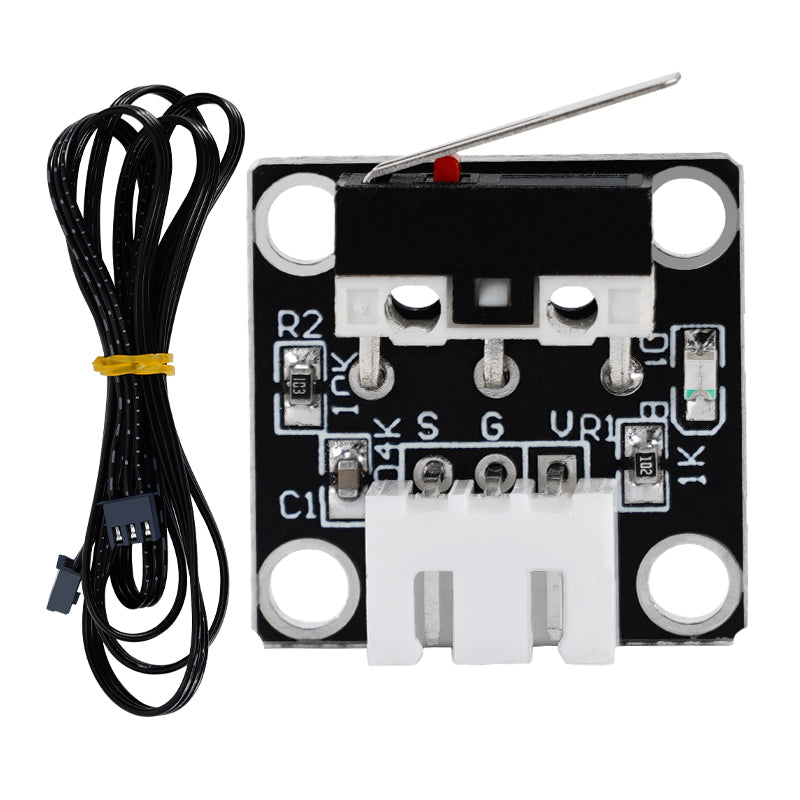

Enhance your 3D printing setup with the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke from 3D Printing Perth - Cirrus Link. This electronic sensor module features a black circuit board with multiple pins labeled R2, S, G, and VR1. It boosts performance when paired with the Ender-3S Micro Switch and comes with a wire bundle neatly tied with a yellow band for easy organization.

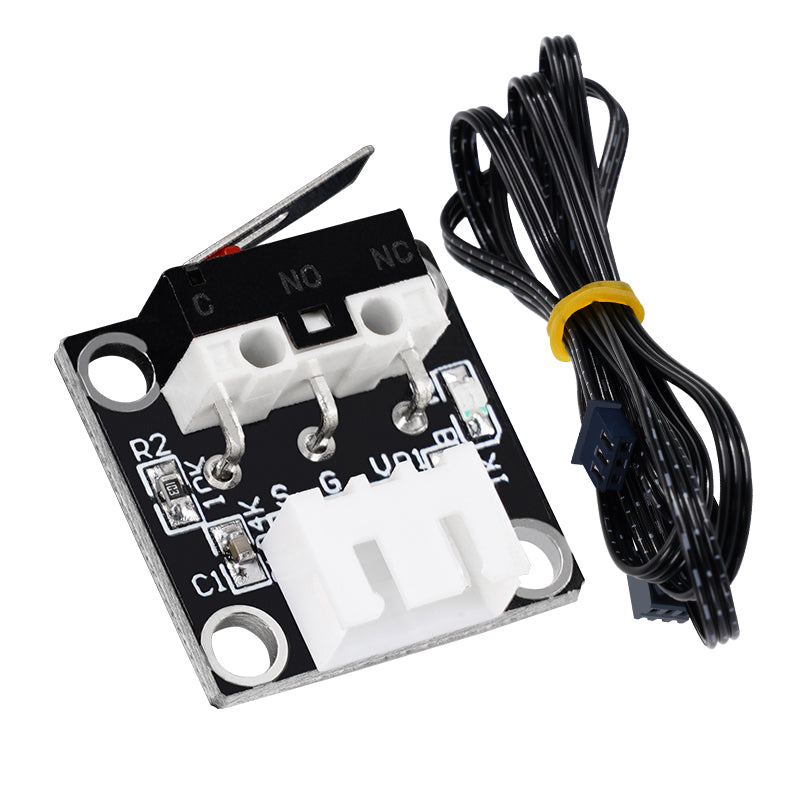

Introducing the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link: a black micro switch module complete with connector ports and an attached black cable, ideal as a 3D printing accessory for use with CR-10 Mechanical Limit Switch systems or Ender-3S Micro Switch setups.

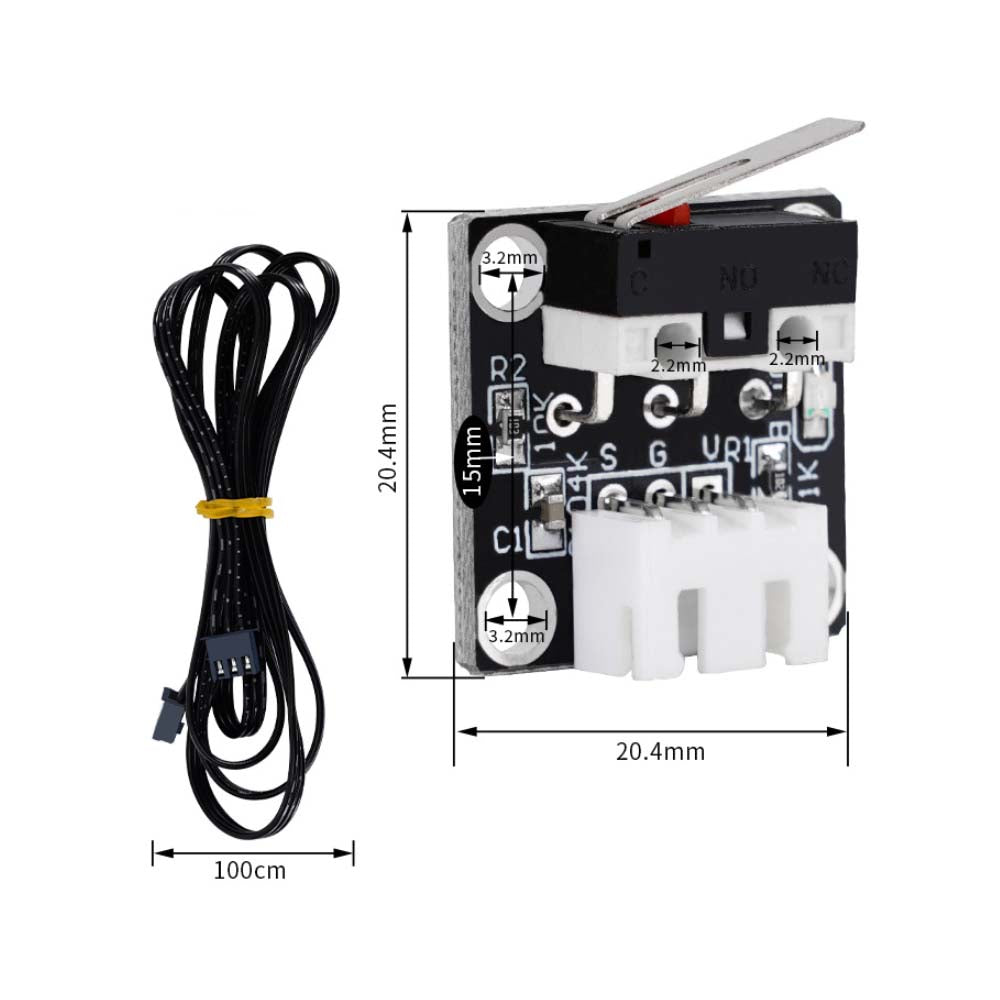

The EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke from 3D Printing Perth - Cirrus Link is perfect for 3D printing setups such as the Ender-3S. It boasts clearly labeled dimensions and includes a black cable that measures 100 cm.
Close-up of an EndStop Switch for CR-10 Ender-3S by 3D Printing Perth - Cirrus Link, perfect for 3D printing, featuring four mounting holes and a white connector port at the bottom.
Close-up of an EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link, featuring a lever arm mounted on a compact black circuit board with a white connector and labeled components, crucial for precision in 3D printing setups.
Close-up of an electronic module highlighting the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link, featuring a three-pin connector and lever switch, essential for precise 3D printing tasks.
Close-up of a black EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke from 3D Printing Perth - Cirrus Link, showcasing multiple connectors and labeled terminals, constructed with metal and plastic components, ideal for precise 3D printing applications.
A square electronic component with four mounting holes and metal contacts on a black surface, similar to the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link, is crucial for achieving precision in 3D printing projects.
Enhance your 3D printing setup with the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke from 3D Printing Perth - Cirrus Link. This electronic sensor module features a black circuit board with multiple pins labeled R2, S, G, and VR1. It boosts performance when paired with the Ender-3S Micro Switch and comes with a wire bundle neatly tied with a yellow band for easy organization.
Introducing the EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke by 3D Printing Perth - Cirrus Link: a black micro switch module complete with connector ports and an attached black cable, ideal as a 3D printing accessory for use with CR-10 Mechanical Limit Switch systems or Ender-3S Micro Switch setups.
The EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke from 3D Printing Perth - Cirrus Link is perfect for 3D printing setups such as the Ender-3S. It boasts clearly labeled dimensions and includes a black cable that measures 100 cm.

3D Printing Perth - Cirrus Link

EndStop Switch for CR-10 Ender-3S Mechanical Limit Micro Stroke

$7.99
Tax included. Shipping calculated at checkout.

Pickup available at Dog Swamp Shopping Centre

Usually ready in 24 hours

CR-10 Mechanical Limit Switch & Ender-3S Micro Switch Stroke Reset

The CR-10 Mechanical Limit Switch is designed to enhance the 3D printing experience with exceptional reliability and precision. This essential component ensures that your 3D printer knows its limits, preventing over-extrusion and safeguarding your equipment from potential damage. By integrating top-tier technology with a simple and efficient mechanism, this limit switch is the perfect addition for any 3D printing enthusiast or professional.

Product Features

  • Reliable Performance: The CR-10 limit switch is crafted from durable materials that withstand the rigors of continuous use, ensuring that your 3D printer operates smoothly and effectively.
  • Easy Installation: Designed for user-friendliness, this limit switch can be installed with minimal effort, allowing for quick upgrades and replacements.
  • Compatibility: Specifically engineered to fit CR-10 and Ender-3S models, ensuring compatibility and seamless integration with your 3D printer.
  • Micro Switch Stroke Reset: The advanced stroke reset mechanism allows for precise calibration, making it easier to set up your printer for optimal performance.
  • High Durability: The mechanical design of the switch ensures a long service life, providing consistent accuracy and performance during your 3D printing projects.
  • Great Value: With its combination of durability and performance, the CR-10 limit switch offers tremendous value for both hobbyists and professionals alike.

Technical Specifications

Specification Details
Type Mechanical Limit Switch
Compatibility CR-10, Ender-3S
Electrical Rating 125V AC 3A
Switch Type SPDT (Single Pole Double Throw)
Actuator Type Lever
Maximum Stroke Length 20mm
Operational Temperature -1°C to 50°C
Dimensions Size: 30mm x 12mm x 8mm

Installation Instructions

Installing the CR-10 Mechanical Limit Switch is straightforward, designed for the convenience of all users, regardless of technical experience. Follow these steps for seamless installation:

  1. Firstly, power off your 3D printer and unplug it from the power source for safety.
  2. Locate the existing limit switch on your printer, typically positioned near the extruder or the print bed.
  3. Carefully remove the current limit switch from its mounting bracket.
  4. Connect the CR-10 limit switch to the existing wiring, ensuring you match the correct
