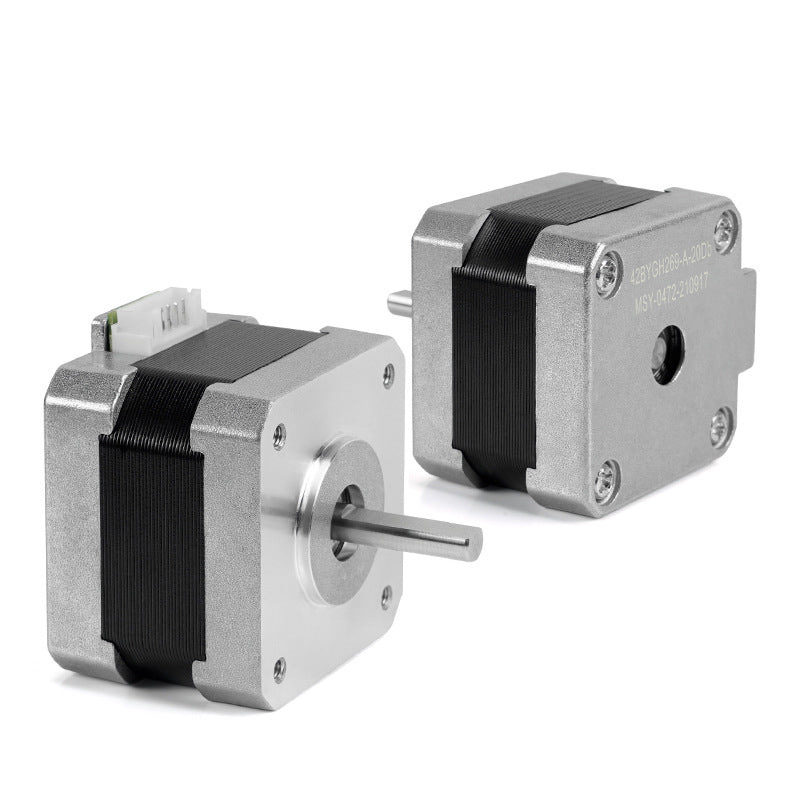

  • On a white backdrop, two 42 Stepper Motors, 32mm high with silver bodies and black sections from 3D Printing Perth - Cirrus Link, show their protruding shafts and front plate mounting holes. Ideal for CR-10 or Ender-3 applications, they offer precision and reliability.
$29.99
$29.99
Tax included. Shipping calculated at checkout.

CR-10/Ender-3/5 42 Stepper Motor

Enhance your 3D printing experience with our high-performance 42 Stepper Motor, specially designed for use with CR-10, Ender-3, and Ender-5 3D printers. These motors are an integral component of your 3D printing setup, providing the precision and reliability needed for superior print quality.

Specifications

  • Model: 42 Stepper Motor
  • Size: 42.3 x 42.3 x 32 mm
  • Body Length: 32 mm
  • Step Angle: 1.8°
  • Number of Phases: 2
  • Rated Voltage: 5.6V
  • Rated Current: 1.0A
  • Phase Resistance: 5.6Ω
  • Phase Inductance: 8.0mH
  • Holding Torque: 360 mN·m
  • Positioning Torque: 14.8 mN·m
  • Moment of Inertia: 38 g·cm²

Key Features

Our 42 Stepper Motor offers a robust solution for 3D printing applications with the following key features:

  • High Precision: With a step angle of 1.8°, the 42 stepper motor ensures exceptional printing accuracy, allowing for detailed and complex models to be crafted with ease. This precision is essential for achieving the best results in your print jobs.
  • Optimal Performance: The 360 mN·m holding torque ensures that the motor maintains its position even under load, providing stability and preventing missed steps during operation.
  • Durable Construction: The compact size and robust design make it ideal for demanding environments, ensuring long life and reliability in various printing conditions.
  • Easy Installation: This motor does not come with cables, allowing for a customized installation tailored to your specific printer and setup. You can easily integrate it into your existing system with minimal effort.

Applications

The 42 Stepper Motor is ideal for a wide range of applications, especially in the 3D printing field:

  • 3D Printers: Designed particularly for CR-10, Ender-3, and Ender-5 printers, ensuring optimal compatibility and performance.
  • Robotics: Suitable for controlling robots or robotic arms where precision movement is crucial.
  • Automated Systems: Useful in various automated equipment where exact positioning and movement are required.

Why Choose Our 42 Stepper Motor?

When it comes to 3D printing and robotics, choosing the right stepper motor is crucial for achieving high levels of performance and quality. Our 42 Stepper Motor combines advanced engineering with practical design, making it
