  • 24V 4010 DC Fan 40x40x10mm 6.5 CFM 5664 RPM Oil Bearing
The 24V 4010 DC fan, measuring 40x40x10mm and offering a powerful 6.5 CFM at 5664 RPM with an oil bearing design, features a sleek black frame and is branded

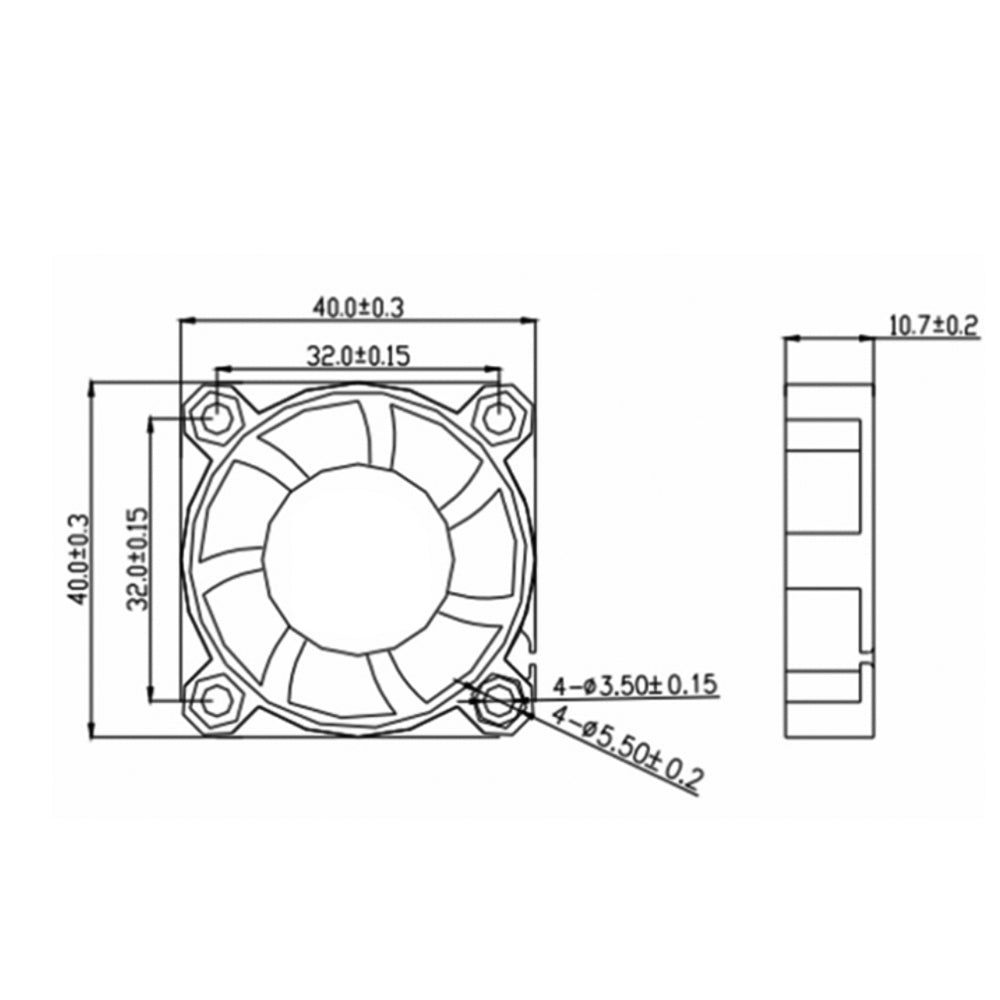

Technical drawing of the 24V 4010 DC Fan by 3D Printing Perth - Cirrus Link, featuring low noise operation and designed for superior airflow. The fan measures 40x40x10 mm and includes four screw holes with a diameter of 3.5 mm and spacing of 32 mm, making it perfect as a cooling fan for a 3D printer. Front and side views are provided.

24V 4010 DC Fan 40x40x10mm 6.5 CFM 5664 RPM Oil Bearing

$7.99
  • Description
  • Reviews
Description

Fan 4010 24V - Superior Quality Cooling Fan

Introducing the Fan 4010, a high-performance cooling solution specially designed for 3D printers and other applications that require efficient and reliable heat management. Boasting advanced features, this fan delivers exceptional airflow and low noise levels, ensuring that your 3D printing experience is not only efficient but also serene.

Specifications

  • Voltage: DC 24V
  • Dimensions: 40mm x 40mm x 10mm
  • Wiring Length: 30 cm
  • Speed: 5664 ± 5% RPM
  • Air Volume: 6.5 CFM
  • Current: 0.08 A
  • Power Consumption: 1.92 W
  • Noise Level: 24 DBA
  • Temperature Range: -10℃ to +60℃
  • Storage Conditions: 5% to 95% RH
  • Life Expectancy: More than 30,000 hours

Key Features

Superior Performance

The Fan 4010 is engineered to provide superior airflow with an impressive air volume of 6.5 CFM. Perfect for cooling critical components in your 3D printer, it ensures optimal performance and longevity of your machine by effectively dissipating heat during the printing process.

Low Noise Operation

Operating at a noise level of just 24 DBA, the Fan 4010 is one of the quietest options on the market. This makes it ideal for home environments and shared spaces, allowing you to work on your projects without the distraction of loud fan noise.

Durable and Reliable

Built with high-quality oil bearing technology, the Fan 4010 promises a lifespan exceeding 30,000 hours. This durability ensures that you won’t have to frequently replace your fan, providing you with a long-term cooling solution that you can trust.

Easy Installation

The fan features a convenient 2-pin connector and comes with a wiring length of 30 cm, allowing for simple and flexible installation in various setups. Just connect the red wire to the positive terminal and the black wire to the negative terminal, and you're ready to go!

Versatile Applications

While the Fan 4010 is perfectly suited for 3D printers, its versatile design makes it an excellent choice for various applications, including cooling electronic equipment, ventilation, and general-purpose exhaust systems. Its range of operating temperatures from -10℃ to +60℃ ensures reliable performance in diverse environments.

Why Choose Fan 4010?

In the realm of 3D printing, consistent cooling is essential to achieving high-quality prints. The Fan 4010 not only meets but exceeds the demands of today’s advanced materials and technologies. Its exceptional air volume,
